Special Price: $45.99

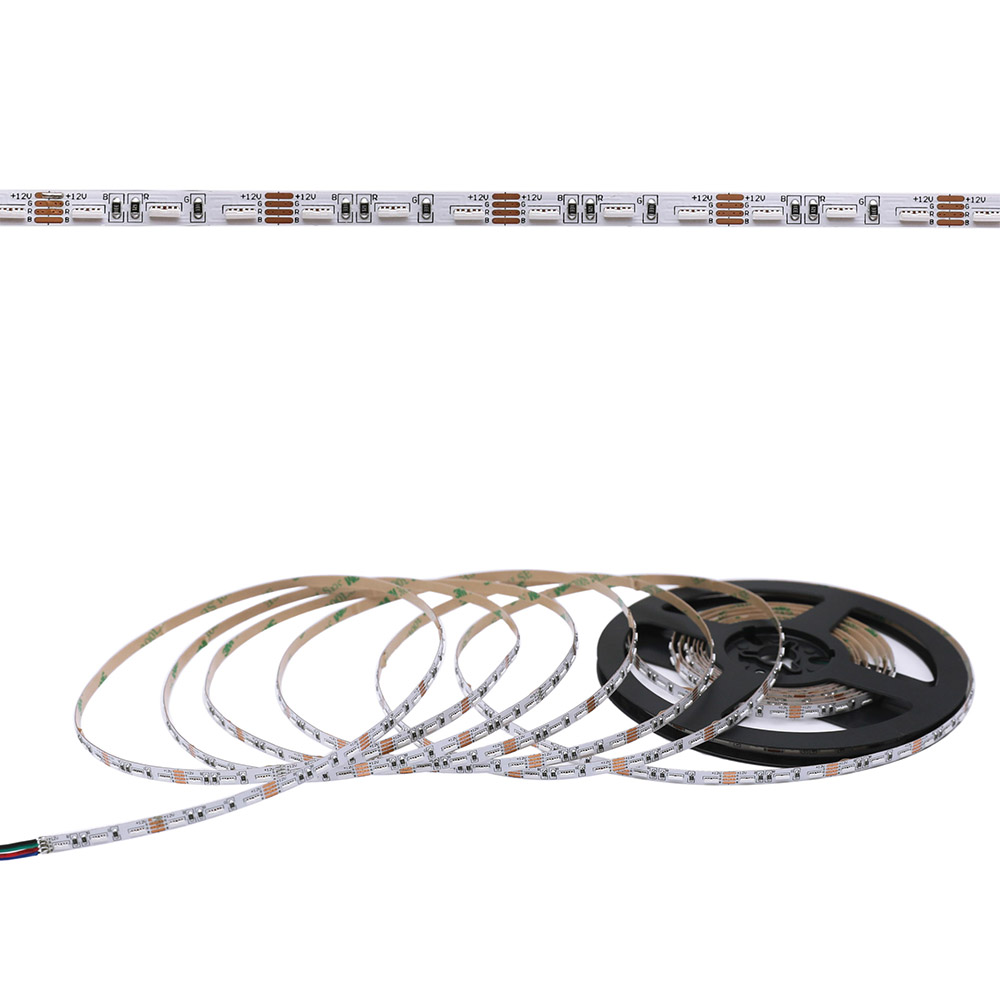

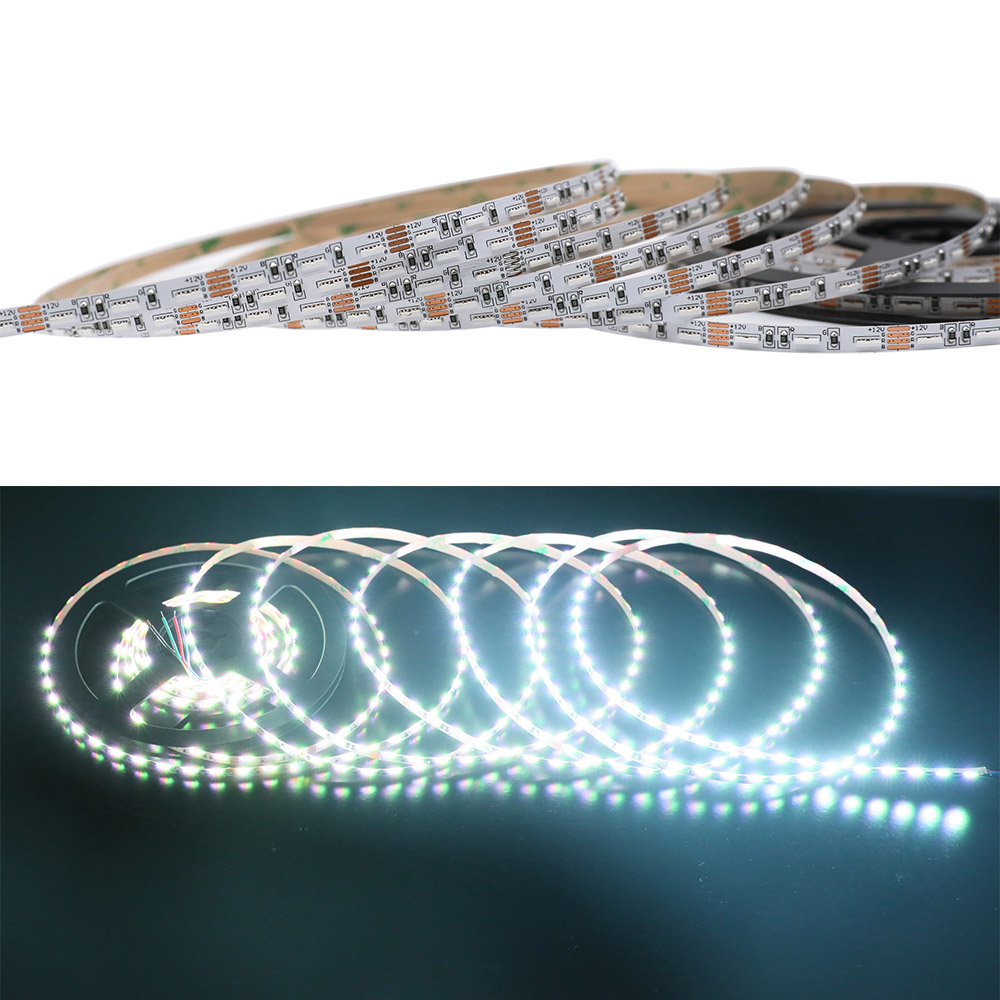

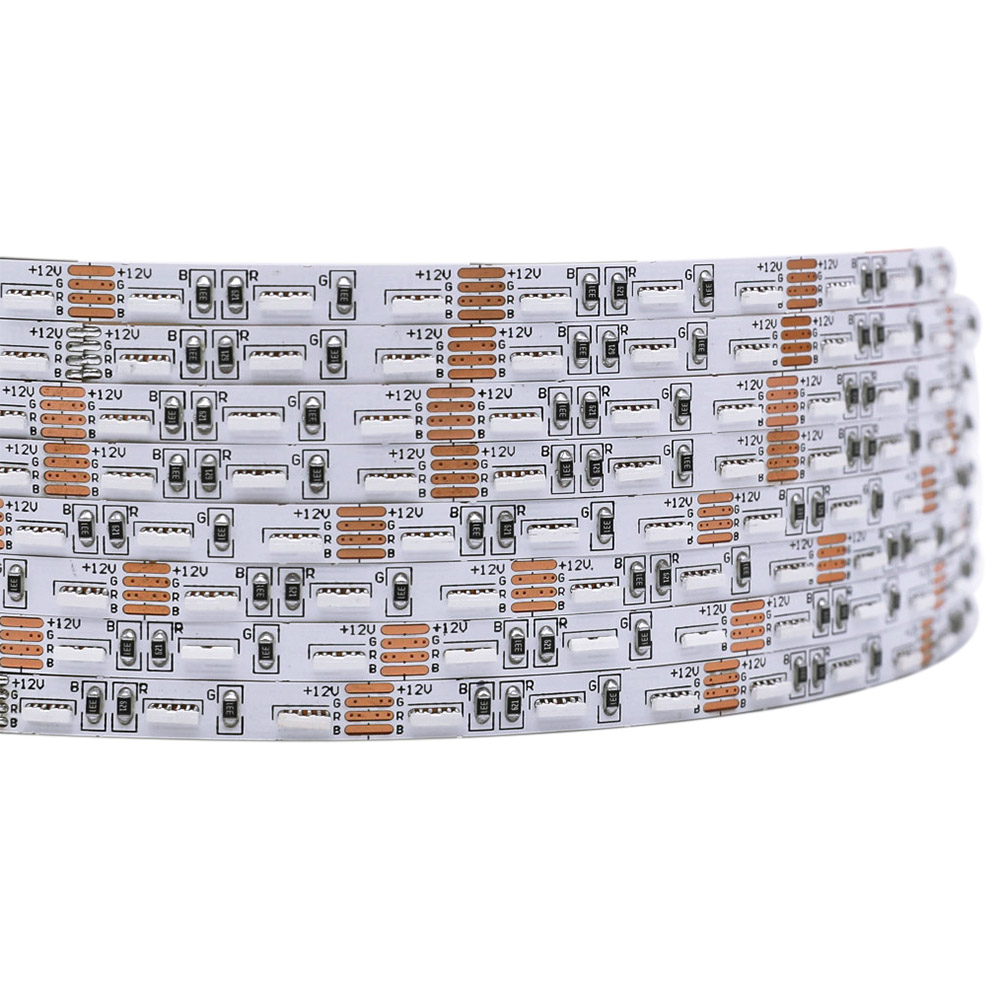

This 12V RGB side emitting ultra narrow led strip uses high-quality SMD020 LED chips, small size, evenly arranged on the PCB, freeing up a lot of space, the width of the thin LED strip light is 5mm/0.20in ultra-narrow; the lighting direction of the LED is side emitting, which is suitable for the backlight environment under the cabinet, parallel emitting can cover a large area of space;
LED quantity of this narrow led strip is 90LEDs/m, the higher density produces brighter light, work with the color changing RGB LED controller, the ultra thin RGB LED strip is controlled to produce a purer R/G/B color, which is suitable for home decoration lighting;
The super thin LED light strip supports DC12V low voltage input, safe and stable, every 3LEDs can be cut, you can customize the length of the narrow LED stirp and choose IP67 waterproof LED strip light for outdoor environment. - IP20 vs IP67.
-

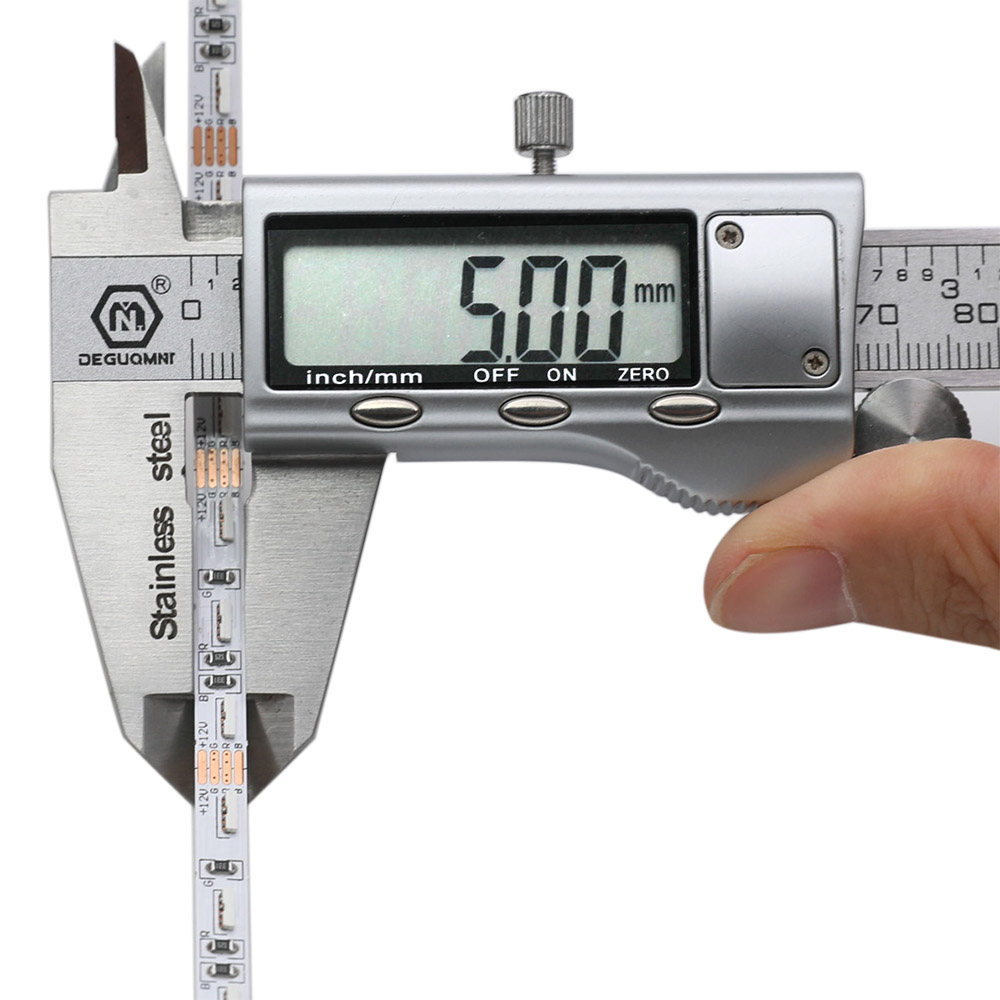

Ultra-narrow 5mm/0.20in wide
-
SMD020 side lighting
-
27LEDs/Ft LED strip
-
DC12V low voltage input
-
3LEDs cuttable(Cutomize length)
-
Pure RGB colors
-
IP67 Waterproof optional
-
3M tape, easy installation
Standards and Certifications
| LED Strip Type: | SMD 020 450PCS/16.4ft |
| LED Chip: | Epistar Chip |
| Input Voltage(V): | 12VDC |
| Length: | 16.4ft/roll, every 3 PCS LEDs can be cut |
| LED Quantity: | 90 LEDs/m 27LEDs/Ft |
| LED Color: | RGB Color Change |
| PCB Width: | 5mm/0.20in |
| Wavelength NM: | Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) |
| Working Power: | 9.6W/3.28Ft, 48W /16.4Ft Max |
| Waterproof Rating: | Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor) |
| Beam Pattern: | 120 degrees |
| Lifespan: | 50,000+hours |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
Product List:
1* 16.4Ft RGB side lighting LED strip light
If you choose the LED controller in the kit, we will send you V3-L + R8-1
If you choose the LED power supply in the kit, we will send you PSPS-12V-60W
►Not satisfied with the default RGB controller, you can read the following article to choose a preferred one: How to choose led strip light controllers?
How to choose the correct LED power supply?
The power of the LED strip light is 48W/16.4Ft, so when you choose the LED power supply, you need to choose 48*1.2=57.6W led power supply to avoid power load.
You can choose the plastic shell 60W led power adaptor or the 75W Mean-Well UL-Listed LED power supply.
If you want to use the LED strip light in the outdoor environment, you can choose our 60W waterproof LED power supply.
►Detail knowledge about choosing the right led power supply: How to calculate power for led strip lights?
How to install RGB LED strip lights?
 |
 |
 |

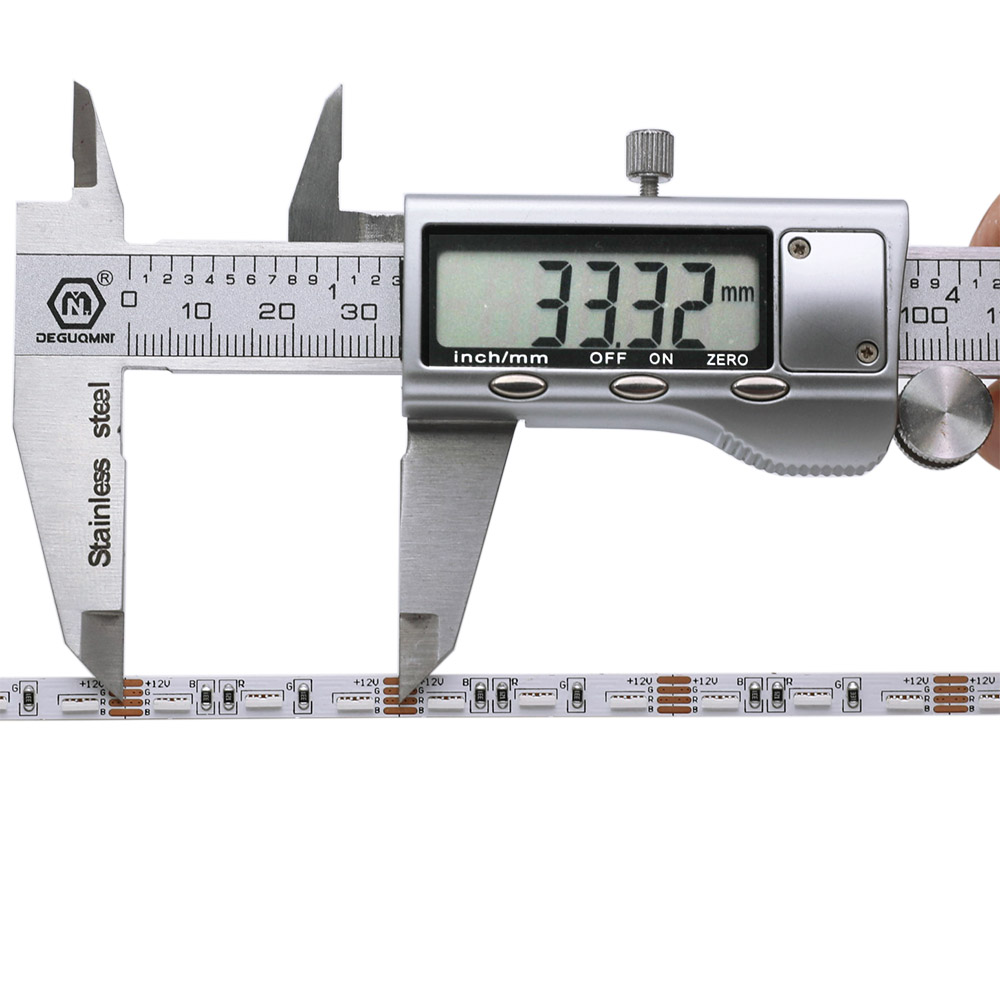

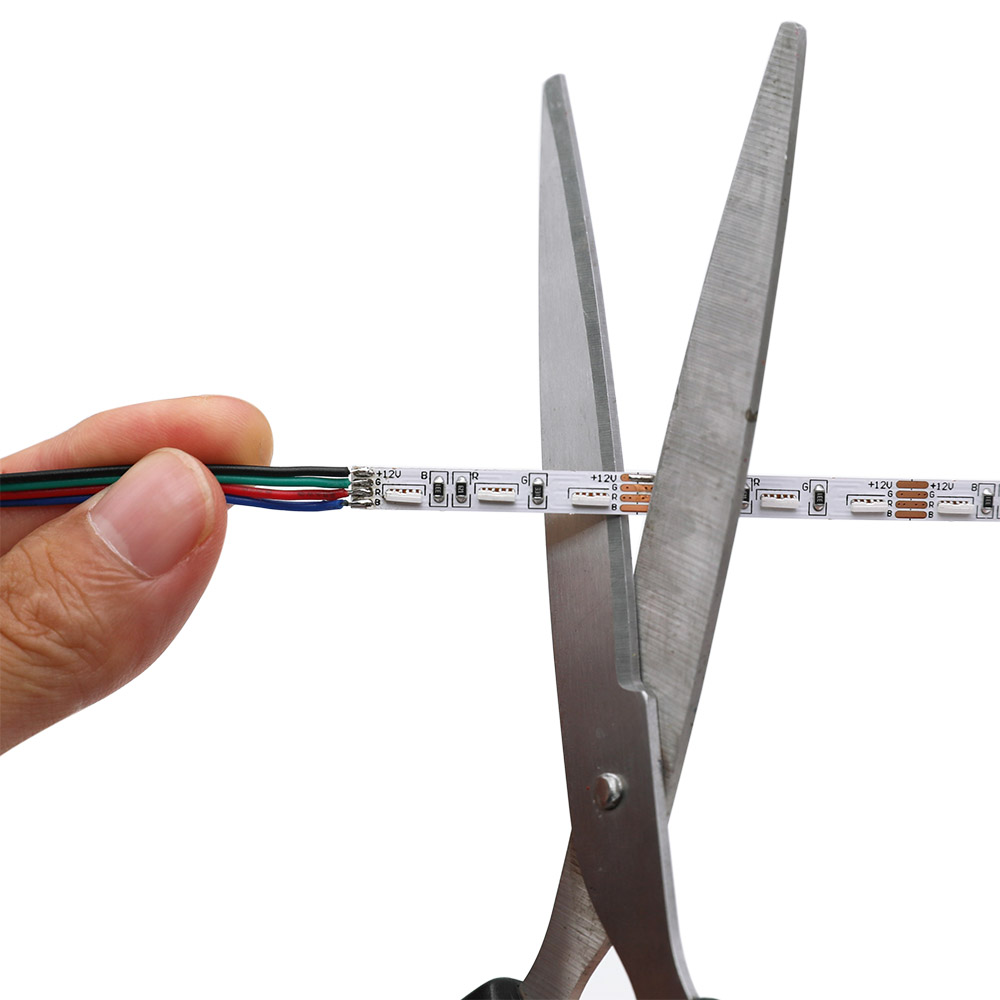

 You can cut the light strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces. |

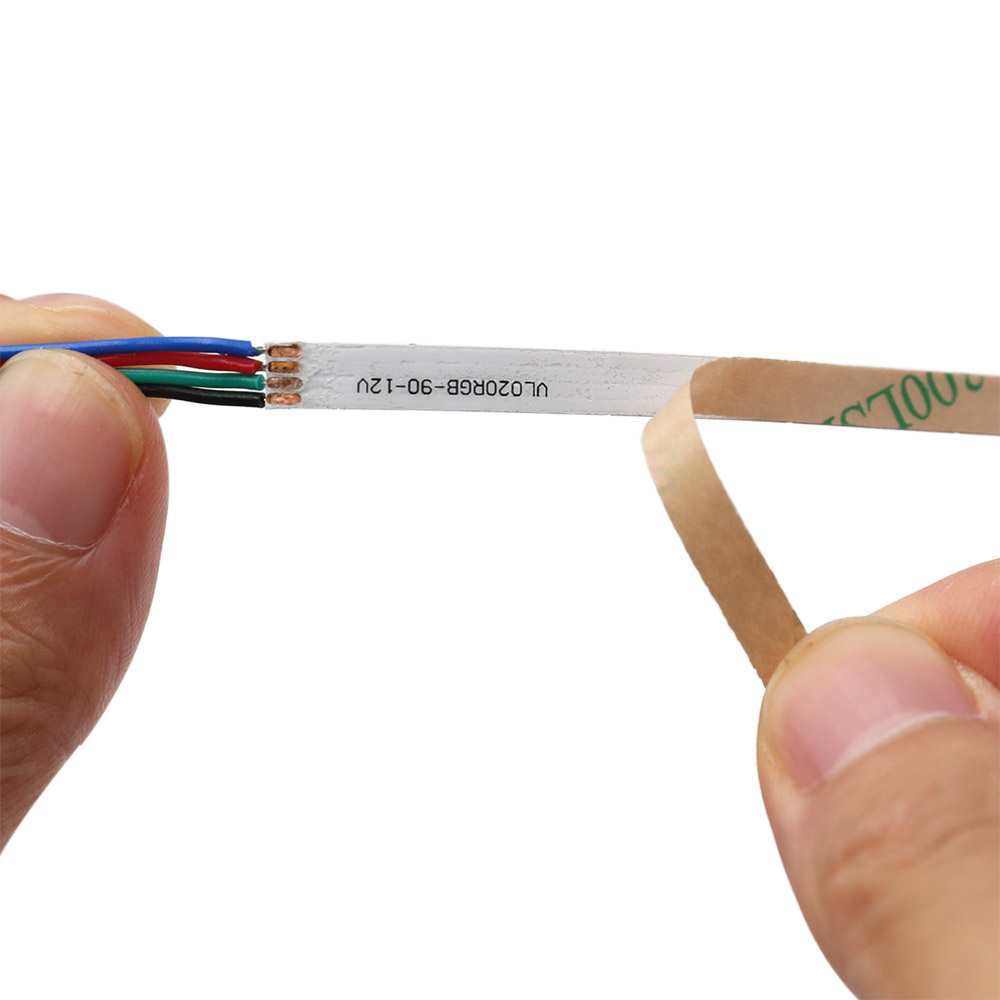

The back of the led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights. |
IP67/IP68 waterproof led light strip type which will come with mounting brackets. |
►RGB LED lights with flex led neon tube can get an uniform, soft, and no LED lighting spot effect, and that is also called flex LED neon light.
Knowledge about LED neon lights: How to make LED neon lights?
►RGB color changing LED strip lights wiring diagram:
*Click the wiring diagram picture to know more detail.
