Addressable SPI LED Strips Amplifier
(0)Model:CONAMP-MGHP-4C
DC5-24V 4-Channel SPI Signal Amplifier - Data Output Amplifier For Addressable WS2811, WS2812B, SK6812 LED Strips
- Operating voltage: DC5-24V
- Applied to: Programmable IC
- Output: 4 SPI signal
- Current: < 2A
Functions This SP signal amplifier is compatible with all kinds of our SPI LED controllers, such as the Magic Home Pro LED controller. It can output the signal of the main controller completely and synchronously, with 4 channels of output and the extra 1 channel for connection to the next amplifier. In theory, this amplifier can be connected to numerous. Standards and...
(0)Model:CONAMP-AP-28
DC5-24V 8 Channels SPI Double Output Data/Clock Signal Amplifier For Addressable Dream Color WS2811 WS2812B LED Strips
- Voltage: DC5-24V
- Working Temperature: -20-60°C
- Power: <0.1W
- Output: 8 channels
- Cascade: Yes
Signal amplifier ( repeater) receives one way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream color strip light changes in effect, and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifiers. Standards and Certifications Technical...

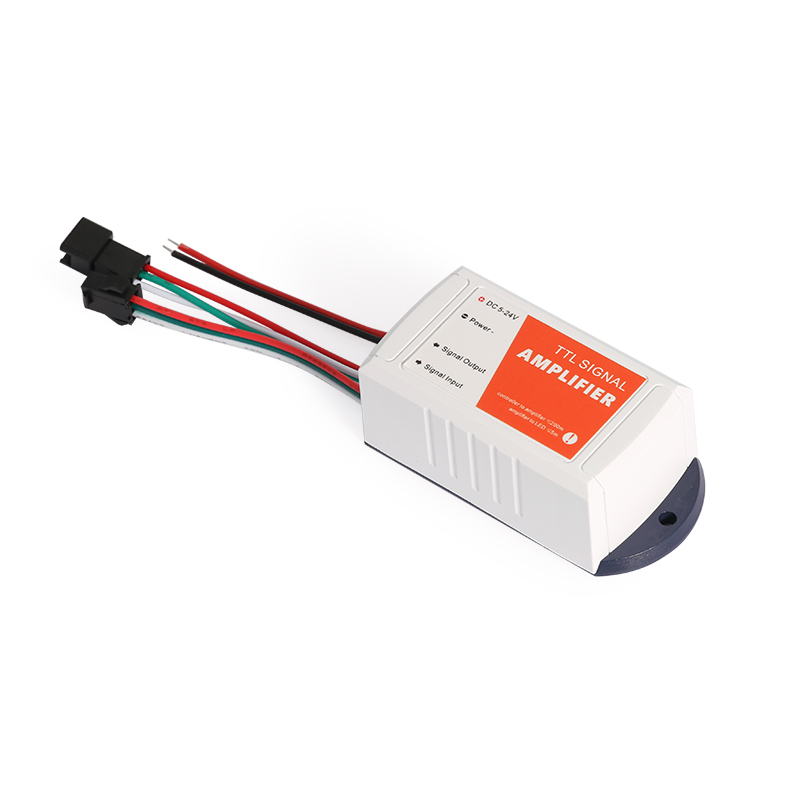

(0)Model:HC100-SA
HC100 DC5-24V Single Channel Full-color Signal Amplifier for Extending The Signal Transmission Distance
- Voltage: DC5-24V
- WT: -20-60℃
HC100 signal amplifier, widely used for digital pixel light project.In the main picture, we show you the internal structure of the signal amplifier, which is divided into parts, the power interface, which is the amplifier power supply, the signal input terminal and the signal output terminal. The main function of this amplifier is the problem of signal weakening during transmission. It has a gain...
(0)Model:CONAMP-DC-2
DC5-24V, 4 Channel SPI Signal Output Data Signal SP901E Amplifier For Programmable Dream Color 6803 1903 1809 1812 2811 IC Led Light Strips
- Voltage: DC5-24V
- Applied to: Programmable IC
- Power: <1W
- Output: 4 SPI Signal
Dream-color amplifier applies to all the dream-color controllers of our company, each time add one dream-color amplifier, it could output 84 groups of dream-color signals, achieve the effection of multi-group dream-color strip light changing synchronously. Dream-color amplifiers could be connected immensely. Wide operating voltage range of DC5V~24V, but the output voltage cannot be adjusted....
(0)Model:CONAMP-DC-1
DC5-24V, 6 Channels SPI Signal Output Data Signal HC600 Amplifier For Programmable Dream Color 6803 1903 1809 1812 2811 IC Led Light Strips
- Operating Voltage: DC5-24V
- Applied to: Programmable IC
- Power: <1W
- Output: 6 SPI signal
- Shell: Iron
- Model: HC600
Dream-color HC600 amplifier applies to all the dream-color controllers of our company, each time add one dream-color amplifier, it could output 6 groups of dream-color signals, achieve the effection of multi-group dream-color strip light changing synchronously. Dream-color amplifiers could be connected immensely. Standards and Certifications ...
(0)Model:CONAMP-SPI-MINI-AMPLIFIER
DC12-24V Mini SPI Amplifier for 3Pin Single Signal and 4Pin Backup Addressable LED Strip Lights
- Output voltage: DC12-24V
- Output: SPI signal
This product is a mini digital SPI amplifier, which can be installed in a small space environment and can properly solve the problems of wiring space and potential balance. 12V voltage input, small generation, high lifespan. one channel input, the other channel can be used as a backup; suitable for 3PIN/4PIN spare signal line addressable LED strip light . This amplifier is different from other...
(0)Model:SA
DC5-24V SPI 1 to 2 Signal Splitter Amplifier SA For Addressable LED Light Strip
- Input Voltage: 5-24VDC
- Input signal: 1 group SPI (TTL) signal
- Output signal: 2 group SPI (TTL) signals
- Certification: CE,EMC,LVD
- Warranty: 5 years
- Protection: Reverse Polarity
Summary Split 1 group SPI signal (data+clock) to 3 groups SPI signals. Applied to synchronous control multiple SPI LED strips. Input and Output Input voltage: 5-24VDC Input signal: 1 group SPI (TTL) signal Output signal: 2 group SPI (TTL) signals Safety and EMC EMC standard (EMC): EN301 489,EN 62479 Safety standard(LVD): EN60950 Radio Equipment(RED):...

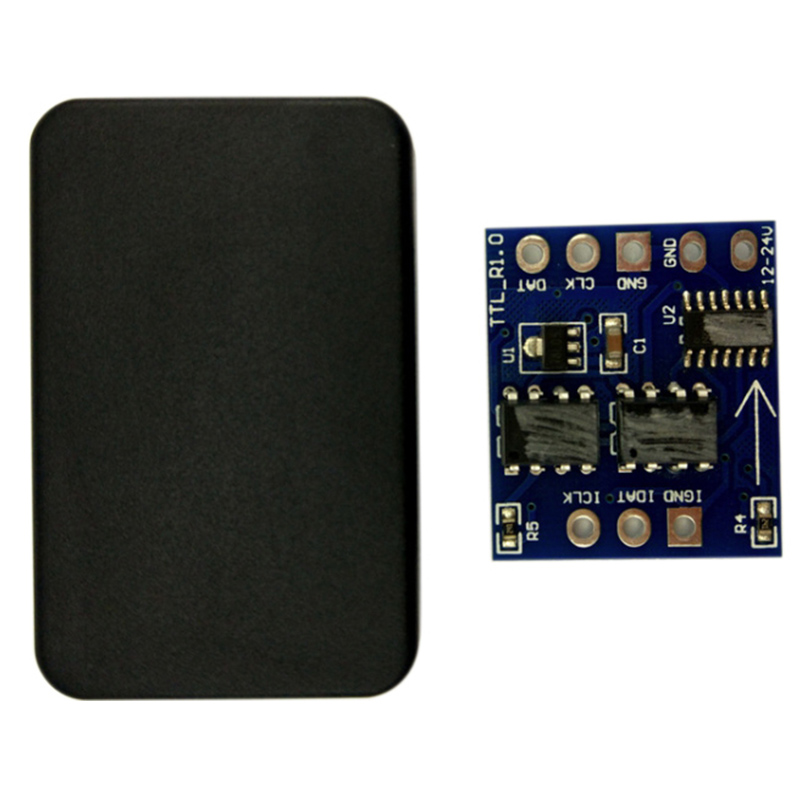

(0)Model:CONAMP-DC-03
DC5V/12-24V, TTL/SPI 1 to 1 Signal Output Data Signal Amplifier For Programmable Dream Color TM1812, WS2811, WS2812B IC LED Light Strips, Extend the length to 200M/656ft
- Supply voltage: DC12-24V/DC5V
- Working temperature: -20-60℃
- Static power consumption: <1W
- dimension: L35 Χ W30 Χ H8mm
1 .TTL/SPI Signal Output Data Signal Amplifier Apply for kinds of the big outdoor LED project, aims to solve the problems of LED installation long-distance, Weak signal transmission, and complicated wiring. 2. The maximum line length of the controller outlet and amplifier input port is 200 meters/ 656 ft. 3. The length of the amplifier outlet and LED strips input line should not exceed 5...

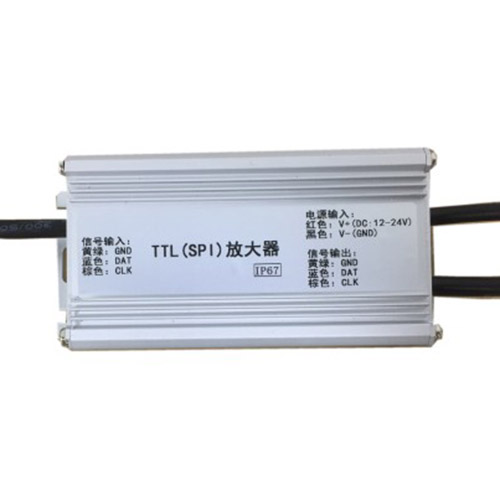

(0)Model:SPI/TTL AMP200M
SPI TTL Waterproof Signal Amplifier, 1 to 1 DC12V-24V Input For Addressable LED Strips
Features 1. Good isolation performance, the input end, and the output end are completely electrically isolated. 2. The signal is transmitted in one direction, and the output signal has no feedback to the input end, which can effectively prevent the interference of the lamp circuit and the lamp power ripple to the controller port, but it does not cut off the signal transmission between them. 3....
