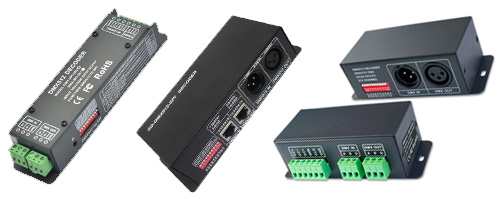

DMX-SPI Decoder converts DMX512 digital signals to SPI digital signals, making DMX512 light system compatible with SPI fixture products. The DMX console can control to each channel of the LED fixture to achieve 0-100% dimming or edit various LED color change effects.
LED Smart Controller Series
Sponsors
Sponsors
DMX512-SPI LED Decoder
(0)Model:SP201E
SP201E Addressable RGB Digital Pixel SPI Signal to DMX512 LED Decoder Controller Work With WS2811 WS2815 SK6812 LED Strip Lights
- WT: 20℃~60℃
- Working Voltage: DC5-24V
- Working current: 24mA - 110mA
- Output signal: SPI signal
1. Each unit supports up to 2000 channels of decoding. 2. Support simultaneous decoding of colorful led and dream color led. 3. Button operation, digital tube display. 4. Compatible with all kinds of IC, controller buttons are adjustable 5. Wide-voltage power-on, anti-reverse connection, with power-down protection parameter function 6. Multiple controllers can synchronize cascade decoding, and...
(0)Model:DS-WP
5-24VDC IP67 Waterproof RF DMX512-SPI Decoder DS-WP For Addressable RGB &RGBW LED Strips
- Input Voltage: DC5-24V
- Input Signal: DMX512+RF
- Output Signal: SPI(TTL)
- Control Dots: Max 900pixels
- Modes: 32
- IP Rating: IP67
This product is a DMX512-SPI Decoder, converts DMX signal to SPI/TTL signal to control Addressable RGB&RGBW LED Strip Lights . It also can be matched with RF remote to wirelessly control the digital lights. Compatible with 45 kinds of IC chips / Digital display/Stand-alone function/ Wireless remote control. Features ● DMX512 to SPI decoder and RF controller with digital...
(0)Model:BC-820
DC5V-24V RGB RGBW DMX512 Signal Decoder BC-820
- Voltage: DC5-24V
- Input signal: DMX512/1990
- Weight (G.W): 180g
- Working Temp: -30 ~55 ℃
- size: 176×46×30mm
It adapts the most advantage microchip technology, to convert the universal standard DMX512/1990 signal into various LED driving IC signals, and allows the LED lamps controlled by DMX512 protocol. 1. Automatically adapts input voltage DC5V-24V. 2. Input standard DMX512 protocol. 3. Adapts LCD display, user-friendly 4. Support various LED dream color...
(0)Model:DSA
DMX512 to SPI Converter DSA For led strip light kit
- Input voltage: 5-24VDC
- Power consumption: 1W
- Input signal: DMX512 + RF 2.4GHz
- Output signal: SPI(TTL) x 3
- Dynamic mode: 32
- Control dots: 170 pixels
- IP rating: Ta: IP20
- Warranty: 5 years
Feature ● DMX512 to SPI decoder and RF controller with digital display. ● Compatible with 42 kinds digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW),...
(0)Model:BC-802
DC5V-24V DMX512 Signal Decoder BC-802
- Voltage: DC5-24V
- Input Signal: DMX512/1990
- Size: L125*W52*H40(mm)
- Weight: 320 g
The DMX512 Signal Decoder adopted the advanced decoding technology to convert the international standard DMX512/1990 signal into standard LPD6803 / LPD8806 / TM1809/P9813/ TLS3001/WS2801/SK6812/TM1814 signals, each decoder has 96/510 DMX output channels, and the output channels can be expanded by adding decoders, therefore, most of the LED lights can be controlled by DMX512/1990 protocol via the...
(0)Model:DS
DMX512-SPI Decoder DS For Full color addressable LED Strip Lights, Warranty 5 Years
- Input Voltage: 5-24VDC
- Input : DMX512 signal
- Output : SPI signal
- WT: -30℃~55℃
- Weight: 110g
- size: L115×W48×H67
Compatible with kinds of digital IC LED strip. Can work under DMX mode, Stand-alone mode, RF mode(customized). Under DMX mode, it can work as DMX decoder with standard DMX512 compliant interface,DMX address can be set easily and shown on the digital numeric display. Under Stand-alone mode, it can work as SPI controller, have 32 kinds dynamic...
(0)Model:DS-L
DMX512 to SPI Decoder and RF Controller DS-L
- Input voltage: 5-24VDC
- Output signal: SPI(DATA+CLK) x 2
- Output dots: 1024
- Size(mm): 170x50x23
The SPI LED controller control LED lights with the following compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812,SK6812, TM1829, TLS3001, TLS3002, GW6205,MBI6120, LPD6803, LPD1101, D705, UCS6909, UCS6912,LPD8803, LPD8806, WS2801, WS2803, P9813. The SPI LED controller can work under DMX mode or RF mode to control a variety of...
(0)Model:LT-DMX-1809
DMX-SPI Decoder LT-DMX-1809
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH/unit
- Socket: XLR-3, Green terminal
- Working temp.: -30℃～65℃
- Dimming range: 0～100%
LT-DMX-1809 converts the universal standard DMX 512 signal into SPI(TTL) digital signal to drive LEDs with compatible driving IC, It could control every channel of the LED lights, realize 0-100% dimming or editing all sorts of changing effect. DMX-SPI decoder is widely used in LED flashing word string light, LED dot light, SMD strip, LED digital tubes, LED wall light, LED pixel screen, Hi-power...
(0)Model:LT-200
LED Digital SPI Controller LT-200 Supports DMX Signal Input, With RF remote control
- Working voltage: DC12V
- Output Signal: SPT/TTL
- 3rd Part Port: DMX512
- Control Qty: 1024 Pixels
- Mode: 540 Modes
More powerful and easy operation in the LT-200 digital controller updated version. It can control LED lighting with compatible driving IC, such as PD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, TLS3001, TLS3002, WS2801, WS2803, WS2811, WS2812B, P9813, etc There are 540 lighting modes, like seven color, synchronic...
(0)Model:LT-DMX-2801
DMX-SPI Decoder LT-DMX-2801(Replacement by LT-DMX-1809)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH
- Dimming range: 0~100%
- size: L125×W52×H40mm
LT-DMX-2801 decoder converts DMX512 digital signal to SPI(TTL) digital signal. IT can control LED lights compatible with driving IC, and control every channel of the LED lights, realize the function of 0-100% dimming or editing all sorts of change effect. DMX-SPI decoder is wildly used in LED flashing word string light, LED dot light, SMD strip, LED digital tubes, LED wall light, LED pixel...
(0)Model:DMX-SPI-201
DMX-SPI-201, High-end DMX-SPI digital Decoder (Replaced by DMX-SPI-202)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH
- Dimming range: 0~100%
- Size: L175×W42×H33
(Replaced by DMX-SPI-202. If you still order this item, we will send you DMX-SPI-202 . ) DMX-SPI-201 is DMX-SPI signal decoder, which converts the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED commercial led lighting with compatible driving ICs. DMX console can control every channel of the LED commercial led lighting, realizing 0-100%...
(0)Model:DMX-SPI-200
DMX-SPI-200, High-end DMX-SPI DMX512 Digital Signal Decoder(Replaced by DMX-SPI-202)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH/unit
- Socket: XLR-3
- Dimming range: 0~100%
- Size: L175×W42×H33mm
Replaced by DMX-SPI-202. If you still order this item, we will send you DMX-SPI-202 . DMX-SPI-200 is DMX-SPI signal decoder, which converts the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED color changing led lights with compatible driving ICs. DMX console can control every channel of the LED lights, realizing 0-100%...
(0)Model:LT-DMX-6803
DMX-SPI Decoder LT-DMX-6803(Replacement by LT-DMX-1809)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH/unit
- Socket: XLR-3, Green terminal
- Dimming range: 0~100%
- size: L125*W52*H40mm
LT-DMX-6803 converts the universal standard DMX 512 signal into SPI(TTL) digital signal to drive LEDs with compatible driving IC, It could every channel of the LED lights, realize 0-100% dimming or editing all sorts of changing effect. DMX-SPI decoder is widely used in LED flashing word string light, LED dot light, SMD strip, LED digital tubes, LED wall light, LED pixel screen, Hi-power...
(0)Model:LT-DMX-3001
LT-DMX-3001 DMX-SPI Decoder(Replacement by LT-DMX-1809)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH/unit
- Socket: XLR-3
- Dimming range: 0~100%
- size: L125×W52×H40mm
Welcome to choose our LT-DMX-3001 decoder, DMX-SPI signal decoder works to convert DMX512 digital signal to SPI(TTL) digital signal. IT can control LED lights compatible with driving IC, and control every channel of the LED lights, realize the function of 0-100% dimming or editing all sorts of change effect. DMX-SPI decoder is wildly used in LED flashing word string light, LED dot light, SMD...
(0)Model:LT-DMX-6120
DMX-SPI Decoder LT-DMX-6120(Replacement by LT-DMX-1809)
- Input voltage: DC5-24V
- Input signal: DMX512
- Compatible IC: MBI6120 Driving IC
- Dimming range: 0~100%
- DMX512 socket: XLR-3
- size: L125×W52×H40
LT-DMX-6120 DMX-SPI Decoder Input voltage: DC5V～DC24V Input signal: DMX512 Compatible IC: MBI6120 Driving IC Decoder channels: 512 DMX CH/unit DMX512 socket: XLR-3, Green terminal Dimming range: 0~100% working temperature: -30℃～65℃ Dimension: L125×W52×H40mm Package Size: L135×W70×H50mm Weight (G.W) : 300g Note: LT-DMX-6120 has been discontinued, if...
(0)Model:LT-DMX-9813
DC5V～24V DMX-SPI Decoder LT-DMX-9813(Replacement by LT-DMX-1809)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH/unit
- Socket: XLR-3, Green terminal
- Dimming range: 0~100%
- size: L125×W52×H40mm
LT-DMX-9813 decoder convert DMX512 digital signal to SPI(TTL) digital signal. IT can control LED lights compatible with driving IC, and control every channel of the LED under cabinet led lighting, realize the function of 0-100% dimming or editing all sorts of change effect for under cabinet led lighting. DMX-SPI decoder are wildly used in LED flashing word string light, LED dot light, SMD strip,...
(0)Model:LT-DMX-8806
DMX-SPI Decoder LT-DMX-8806(Replacement by LT-DMX-1809)
- Input signal: DMX512
- Input voltage: DC5~24V
- Channels: 512 DMX CH/unit
- Socket: XLR-3, Green terminal
- Dimming range: 0~100%
- size: L125×W52×H40mm
Welcome to choose our DMX decoder for exterior led lighting, DMX-SPI signal decoder works to convert DMX512 digital signal to SPI(TTL) digital signal. IT can control LED lights exterior led lighting compatible with driving IC, and control every channel of the LED lights exterior led lighting, realize the function of 0-100% dimming or editing all sorts of change effect. DMX-SPI decoder are wildly...
(0)Model:CONFULL-H805DMX
DC12V~24V DMX512 rgb decoder three channels,each max 4A,constant voltage RGB decoder DMX512 protocol.For RGB LED strip light
- Features: DMX512 decoder
- Voltage:12-24V
- Remote Distance:none
- Max. Load Power:200W
- is_customized:Yes
Item Type: RGB Controler Power Source: DC Features: DMX512 decoder Certification: CE,RoHS,CCC Model Number: H805DMX Voltage: 12-24V Remote Distance: none Warranty: 1 year Max. Load Power: 200W Applicable Lights: rgb led Connection Mode: GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+) Controled Method: DMX512 ...
(0)Model:LN-SDDMXCON-SPI-LV
LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller
- Voltage:DC12V
- WT: -20-60℃
- Output:SPI
- Max Number of Files:62
- Static Power Consumption:<1W
SD card DMX signal decoder is one of our company's standard products. The SD card stores the edited pattern file and outputs it as SPI signal. It can be controlled by the DMX console or other DMX control equipment, and the files and speed to be played can also be selected through the dial switch. It can complete the effects of jumping, gradual change, horse racing, running water, chasing,...
