6mm Thin 5V SK6812 5050 RGB Digital S Type LED Strip 300 LEDs 16ft
Related Products
6mm Thin 5V SK6812 5050...
$37.98Thin Silicone Flexible...
$3.99DC5-24V SP638E Bluetooth...
$7.9850W10A DC5V Plastic Shell...
$19.98Flexible Silicone Neon...
$32.00 $20.0038% offMean Well LPV-100-5 DC5V...
$44.98 $34.9822% offMean Well LRS-50-5 DC5V...
$25.00-
Special Price: $37.98

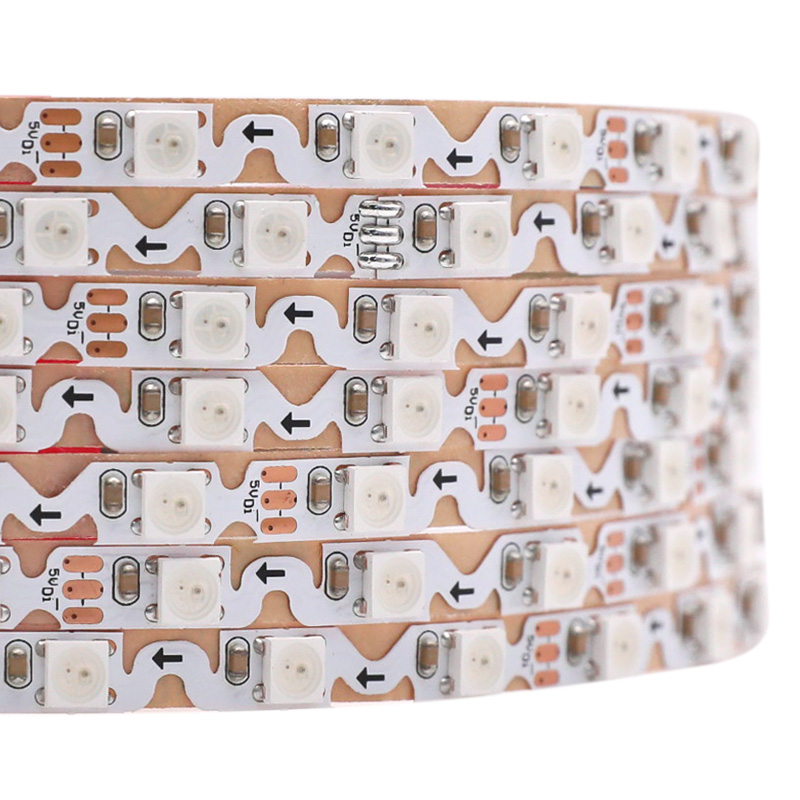

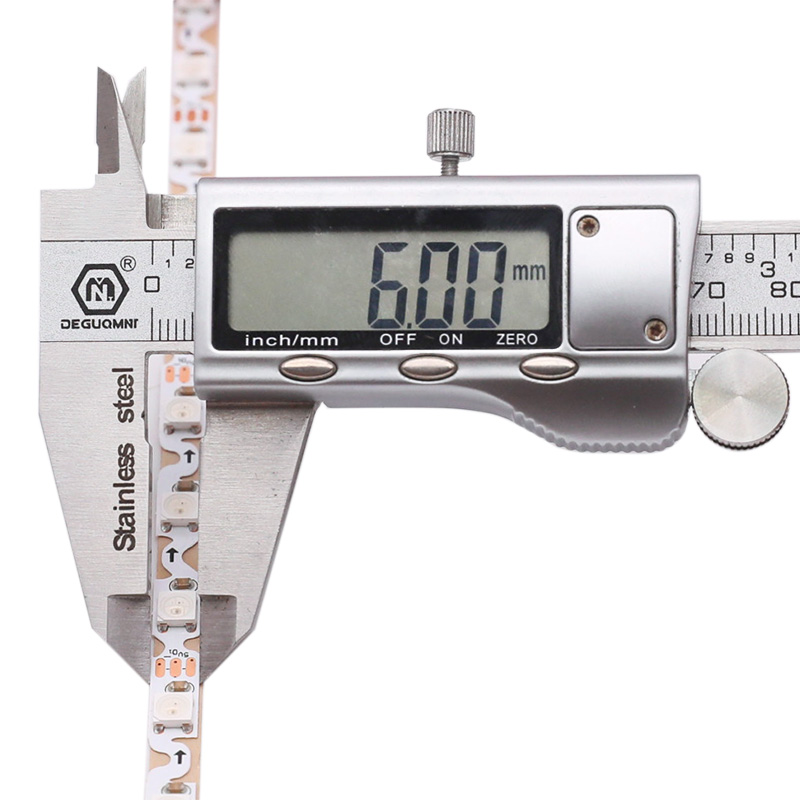

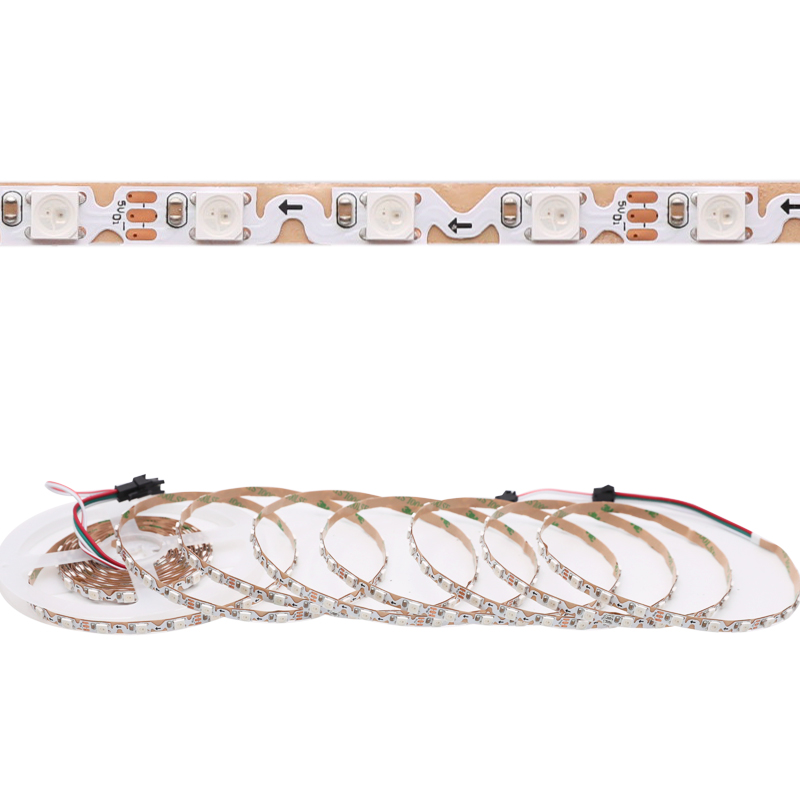

A 60LEDs/m 6mm thin digital RGB S type led strip controlled by SK6812 IC, with DC5V power input. The cobra shaped PCB design is especially suitable for sign letter channel lighting. Its 6mm narrow PCB width allows this S type led strip to easily fit into a variety of tight installation spaces.

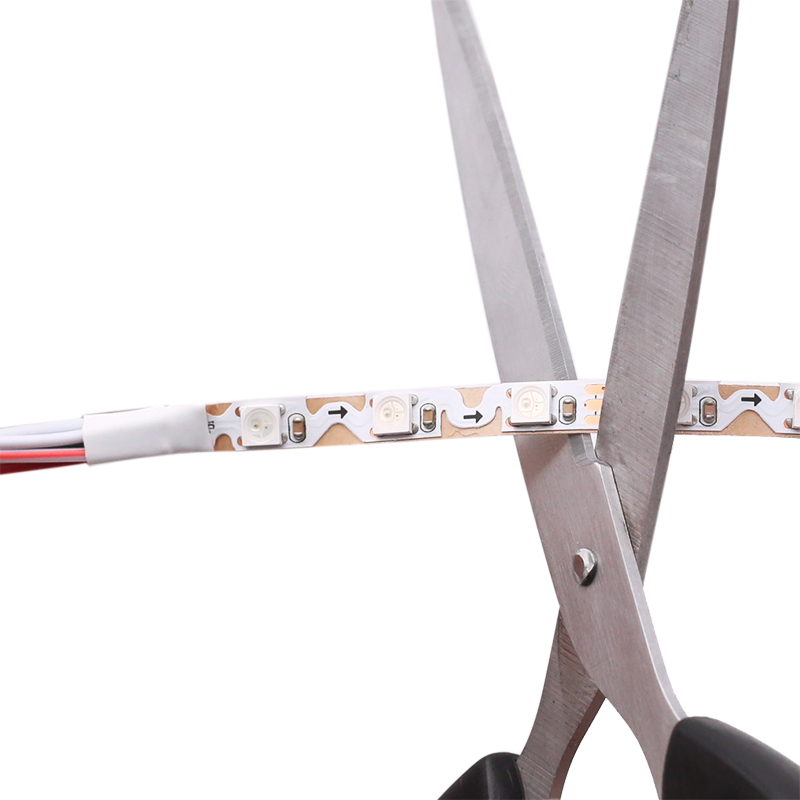

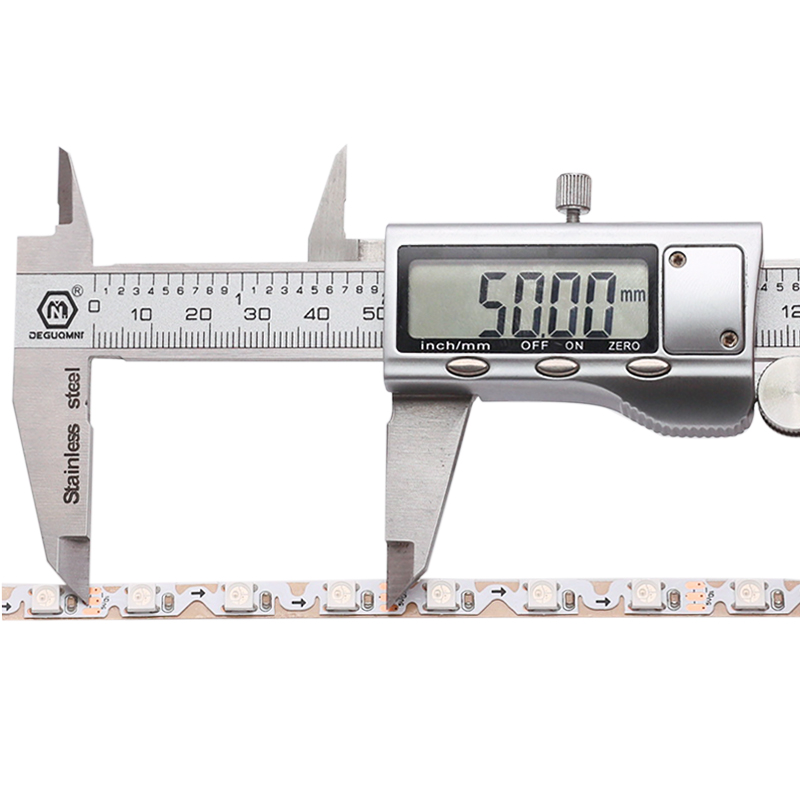

There are 60 pixels per meter, each LED is a pixel, 3-LED can be cut, 50mm (2") cut segment. Note: Using 5V input produces some voltage drop, and the S shaped digital RGB led strip only operates normally for a distance of 1 to 2 meters over a length of 5 meters.
Kit: Bluetooth music RF digital led controller SP638E and Meanwell 5V power supply LRS-50-5 or 5V 10A power adapter.
Product Specifications
Item: | 5V SK6812 S Type LED Strip |
LED Type: | SMD 5050 |

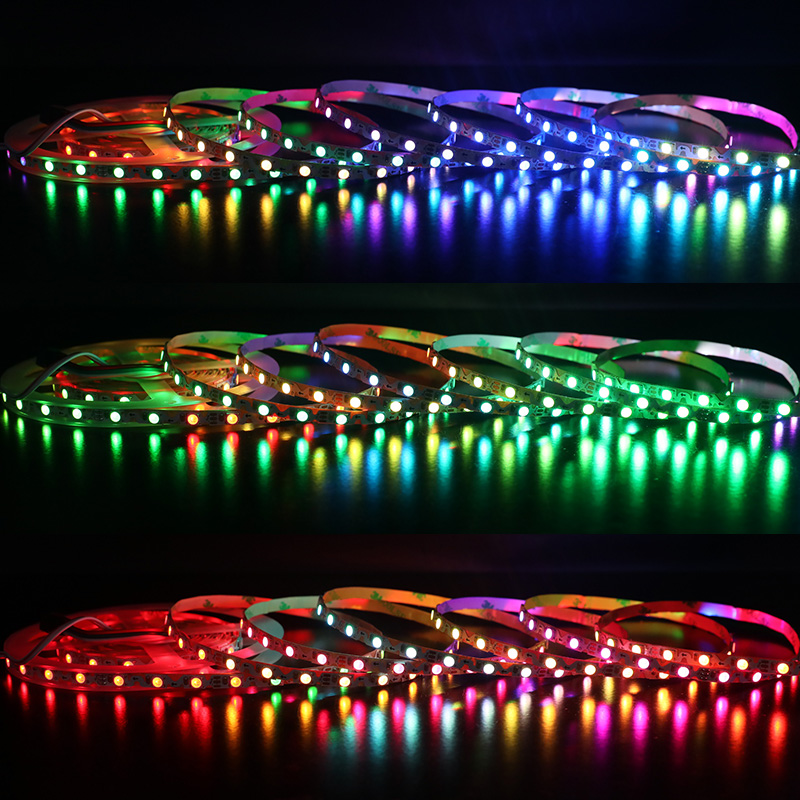

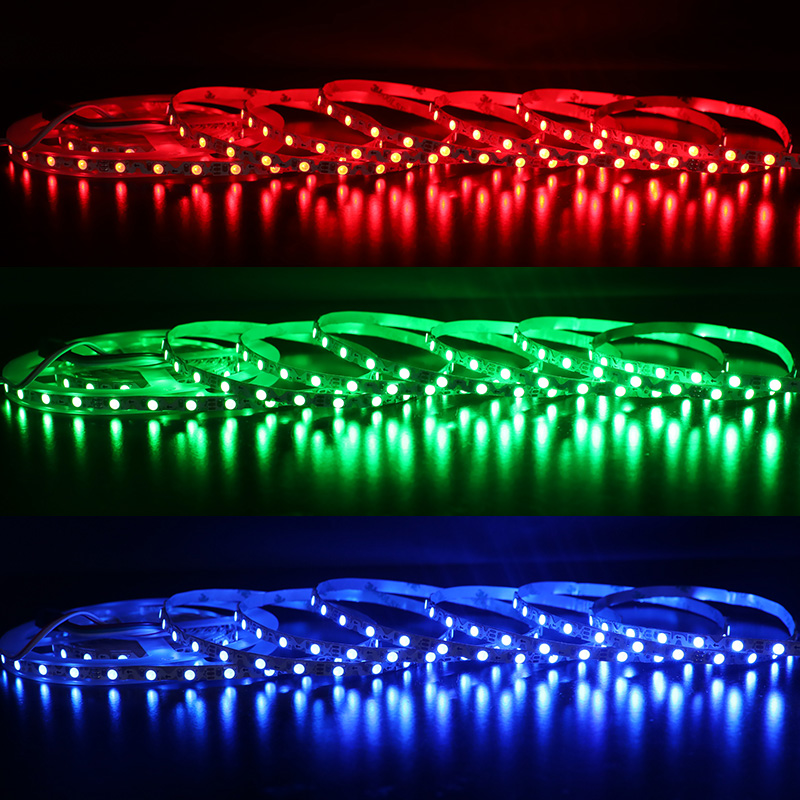

Light Color: | Addressable RGB |
IC Type: | SK6812 |
Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
Dimensions: | L5000mm*W6mm*H0.25mm |
Waterproof Rating: | IP20 |
LED Quantity: | 60 LEDs/m, 300 LEDs/roll |
IC Quantity: | 300 ICs/roll, 1 IC drives 1 LED |
Input Voltage(V): | 5VDC |
Power: | 6 W/m, 30 W/roll |
Beam Pattern: | 120 degree |
Lumen: | 20-22lm/LED |
Lifespan: | 30,000+hours |
How to Wire SK6812 S Type LED Strip?
