Special Price: $19.98

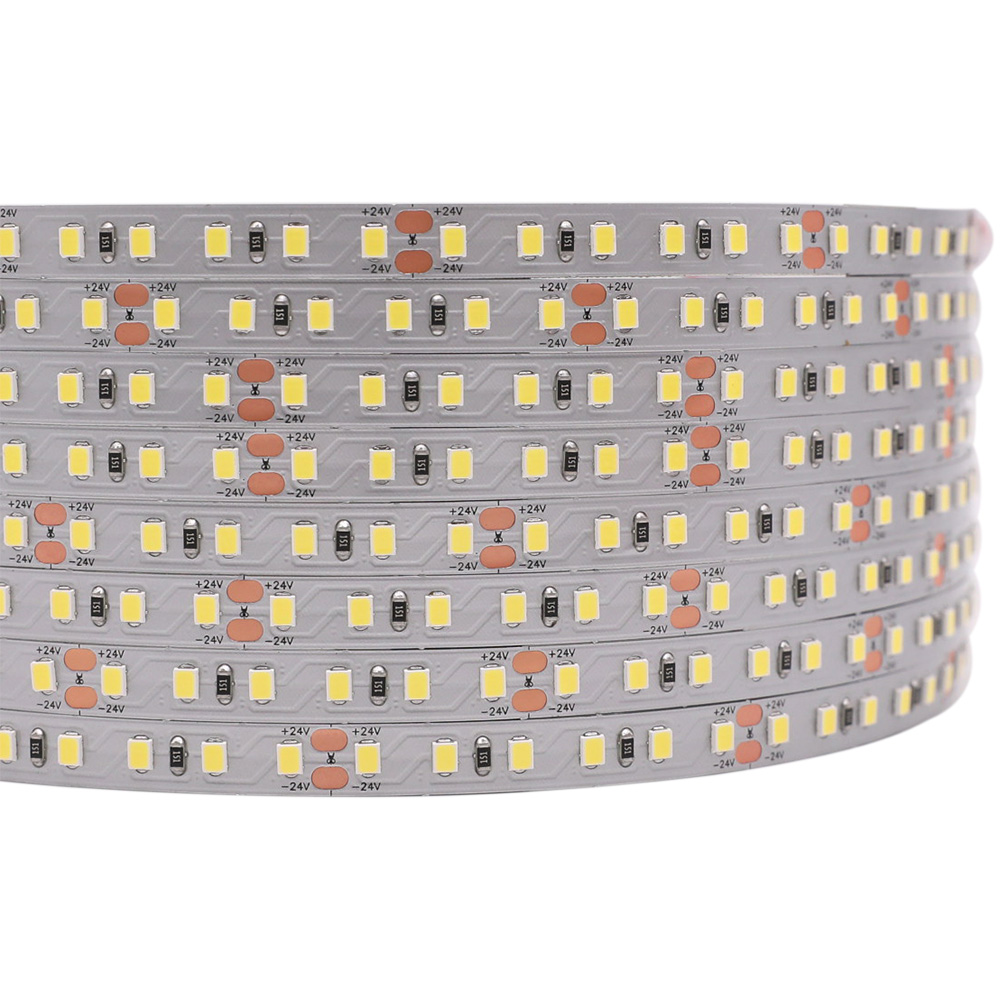

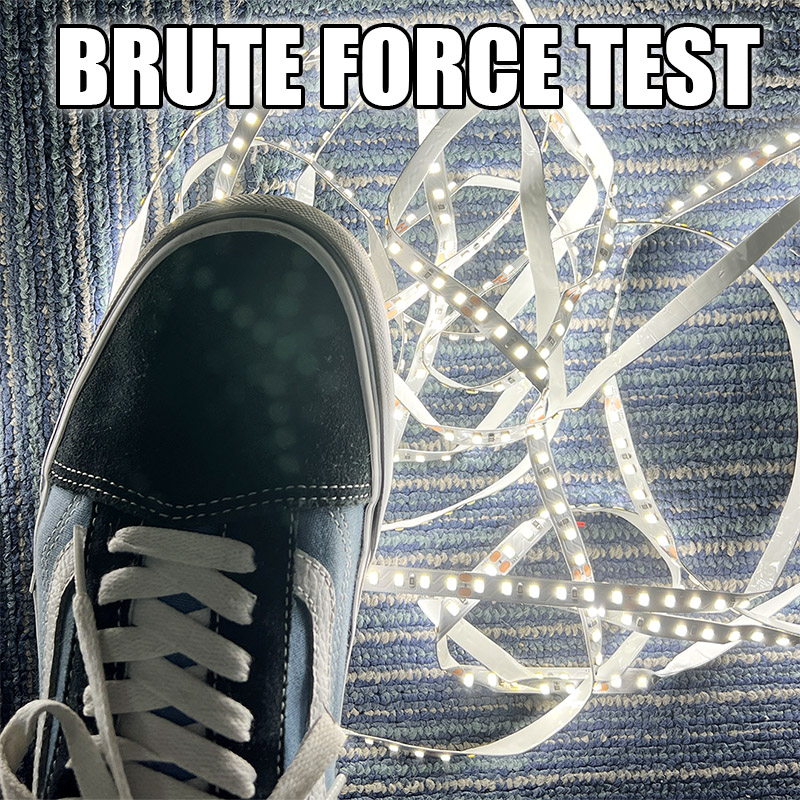

The biggest feature of this bright SMD 2835 LED strip lighting is that it has good anti-violence performance, can be rubbed and stepped on, suitable for flexible silicone led channel and linear aluminum channel installations. The 3528 LED chip is surface mounted on the silver PCB board, with high density 120 LED lights per meter. This 24V 2835 SMD LED strip light has no voltage drop in 5m/16.4ft and 10m/33ft running length, with high color redering index, good color consistency. 8mm wide, every 50mm(6 LEDs) can be cut to get your desired length.
24V low voltage white led strip lights should be powered by 24V DC led power supply or 24V LED dimmer to light or dim the strip. Color temperature 3000K warm white or 6000K daylight white(pure white) can be optional. Different waterproof rating is suitable for different installation places, IP20 non-waterproof white LED strip lights are suitable for indoor use, while IP67 white LED strips are outdoor waterproof.
Standards and Certifications
Product Specification
| LED Strip Type: | 2835SMD |
| LED Chip: | Epistar super brights Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |

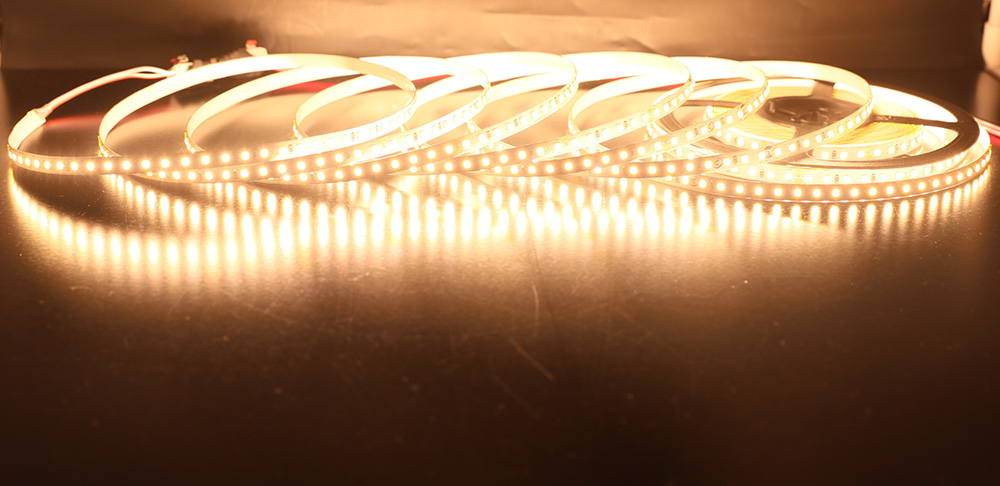

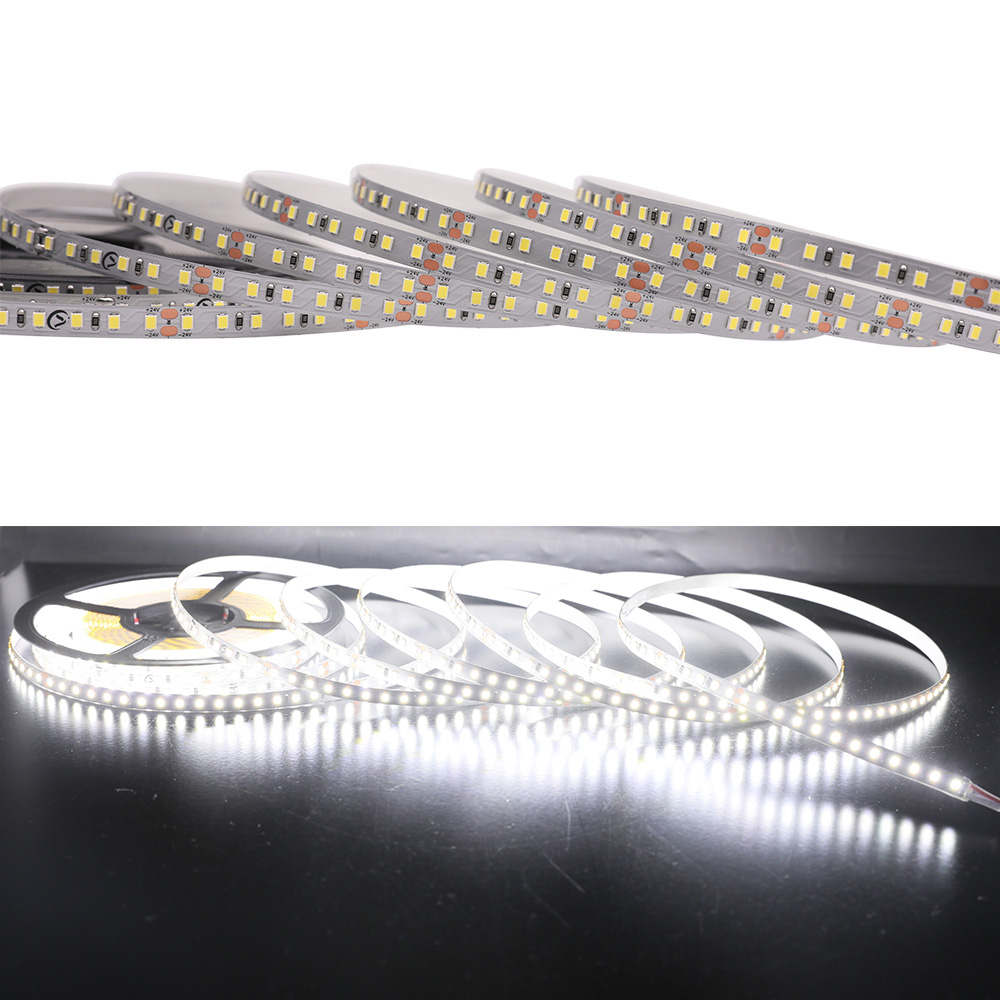

| White Light Color Temperature: | Warm White(3000K), Daylight White(6000K) |
| LED Quantity: | 120LEDs/m, 600LEDs/5m, 1200/10m |

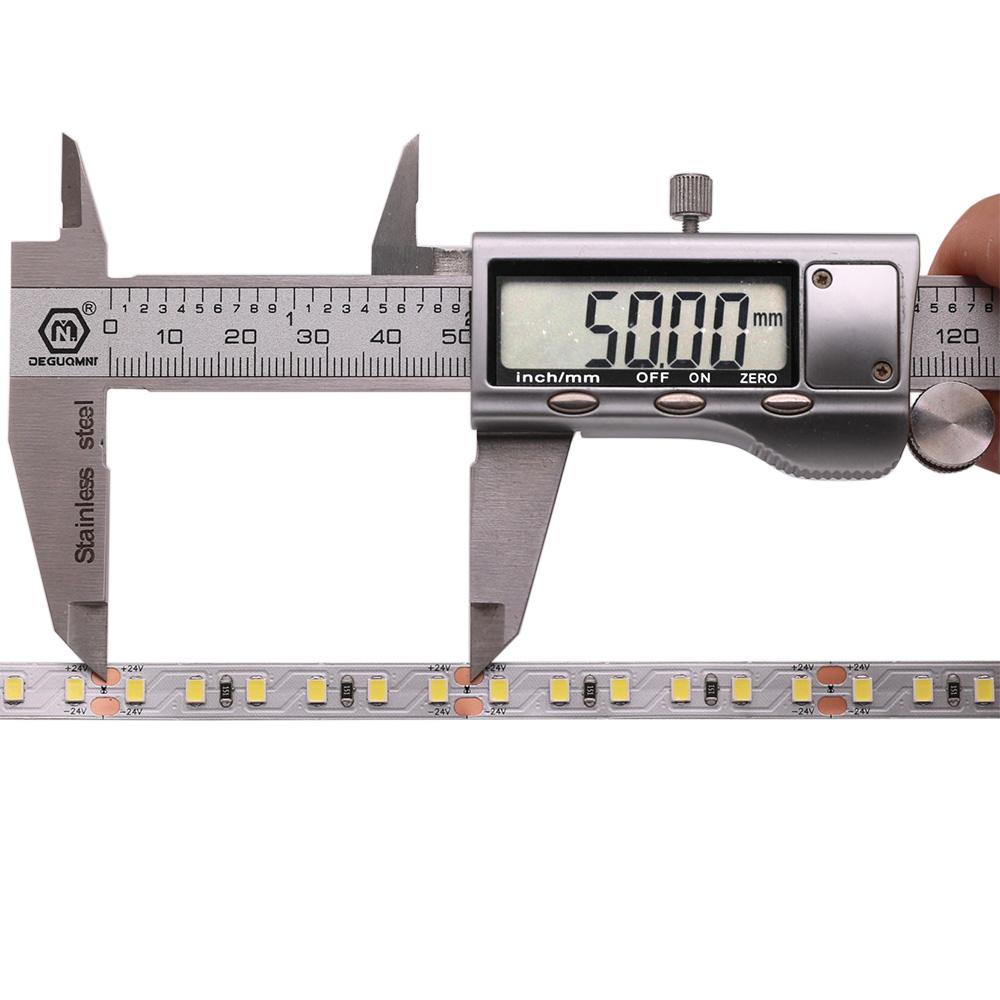

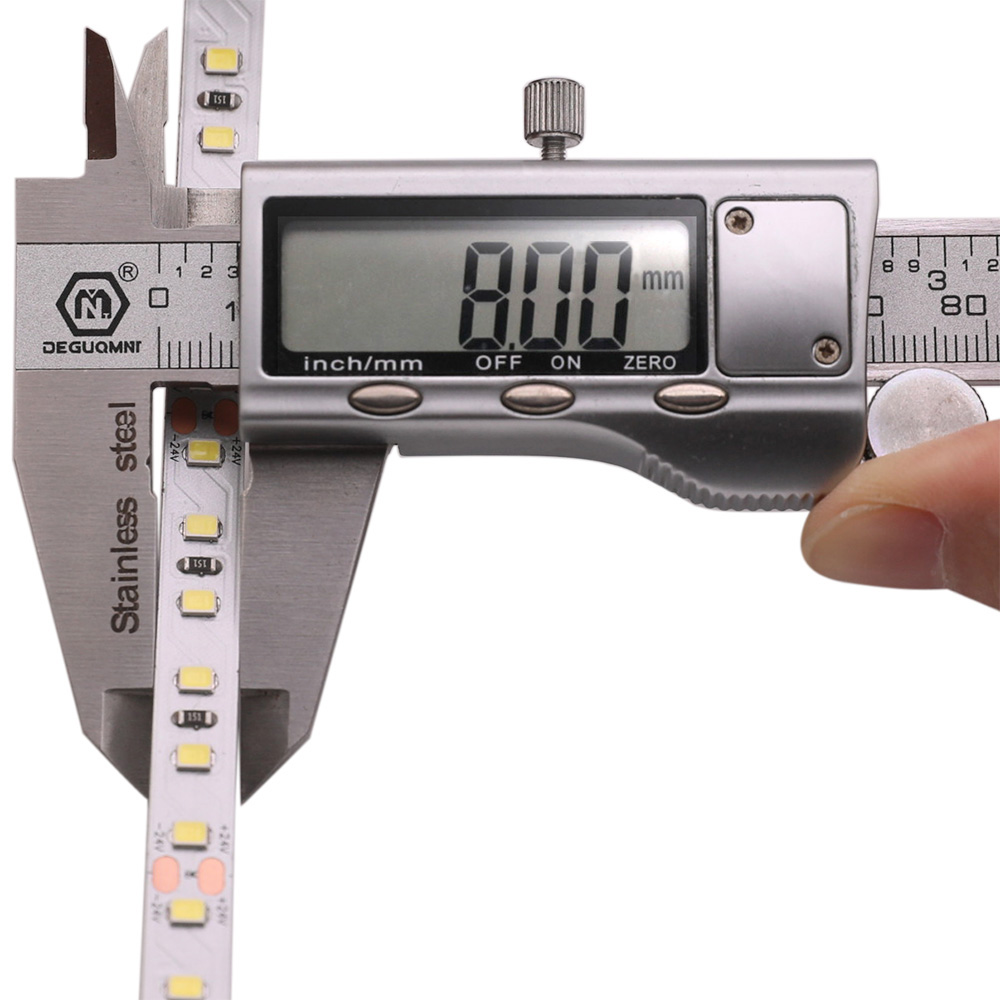

| PCB Wide: | 8mm/0.31in |
| Input Voltage(V): | 24VDC |
| Working Power: | 75W/5m Max |
| Beam Pattern: | 120 degrees |
| CRI (Ra>): | 80/95 |

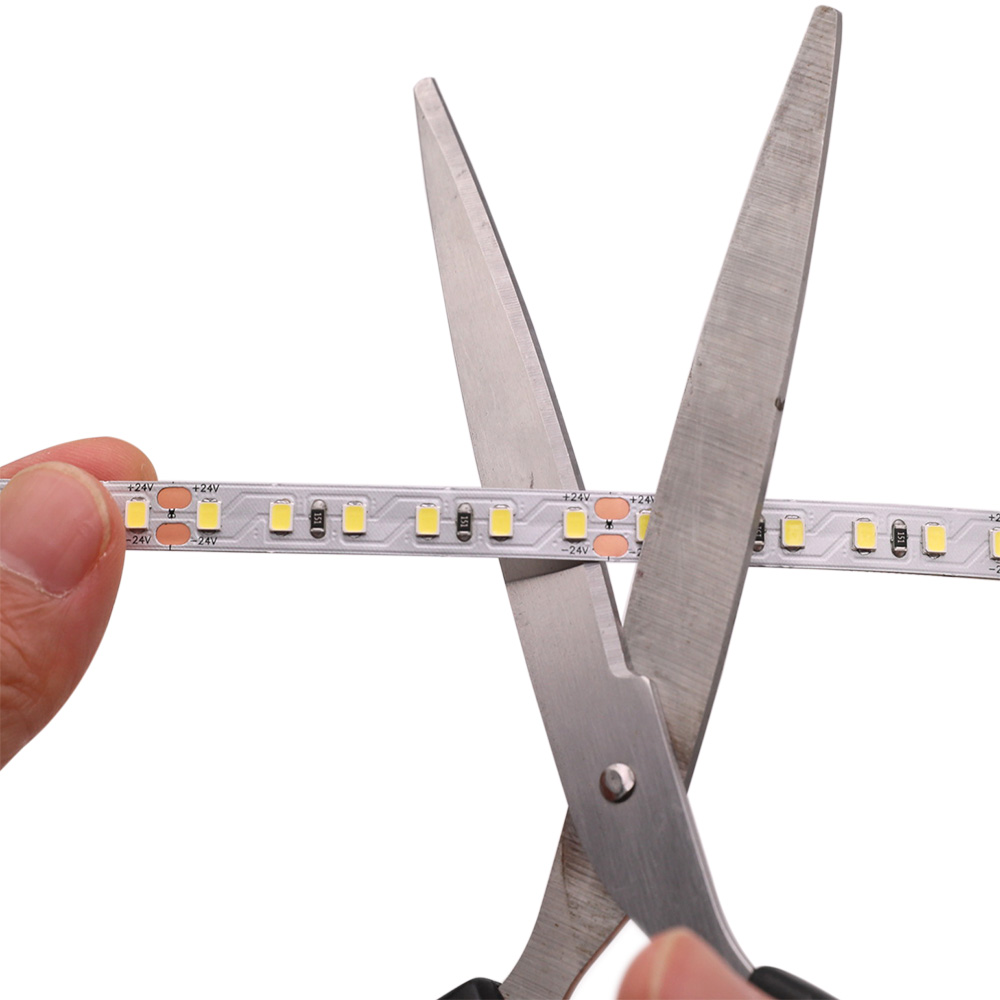

| Cuttable: | 50mm/ 6 lights |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |
| Lifespan: | 50,000+hours |
Product List:
1* IP20 non-waterproof daylight white 5m/16.4Ft SMD2835 600LEDs LED strip light by default. Want 3000K warm white light LED strip and IP67 outdoor waterproof white LED lights, please choose the corresponding option.
| Default white light LED strip: | IP20 non-waterproof daylight white LED strip |
| Kit "LED strip + LED light controller": | IP20 non-waterproof daylight white LED strip + V1 + RT1 |
| Kit "LED strip + power adapter": | IP20 non-waterproof daylight white LED strip + PSPS-24V-96W |
| Kit "LED strip + LED light controller + power adapter": | IP20 non-waterproof daylight white LED strip + V1 + RT1 + PSPS-24V-96W |
If you don't satisfied with the white light LED controller and the LED power supply, you can choose by yourself. We provide articles to help you choose the right one: How to calculate power for led strip lights?
How to Wire 2-pin White LED Strip Lights?
How to Install White LED Strip Lights?
LED Light Strip Applications:
LED Task Lighting
Off-Grid Lighting
Exhibition Lighting, Art Gallery Lighting, Museum Lighting
Retail Shop Lighting
Indoor Photography Lighting
Studio Office Lighting
Energy Efficient New Construction Cove Lighting
Bias Lighting
Accent lighting
Mood lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
