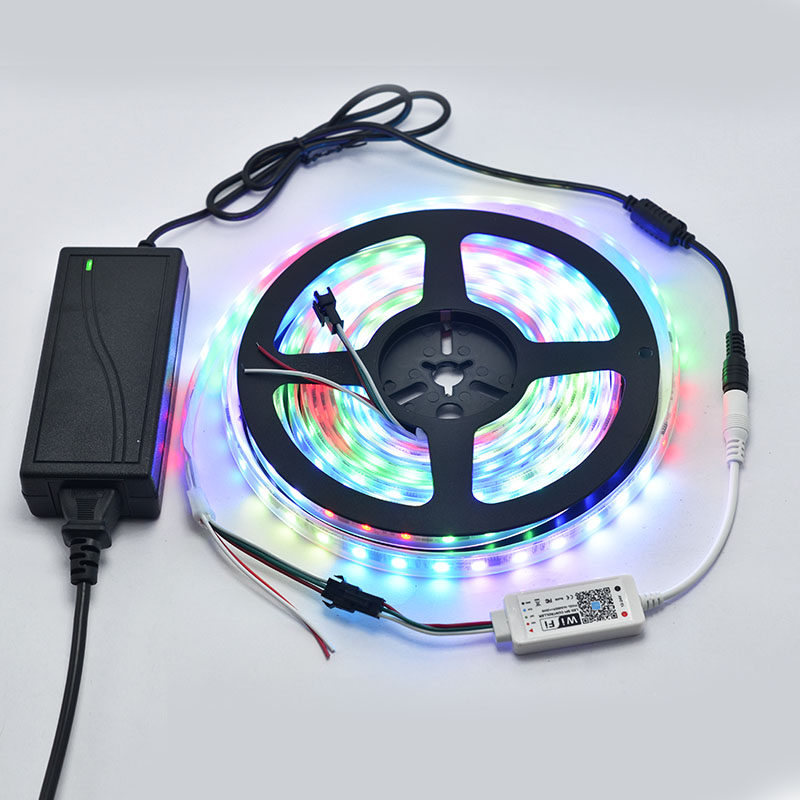

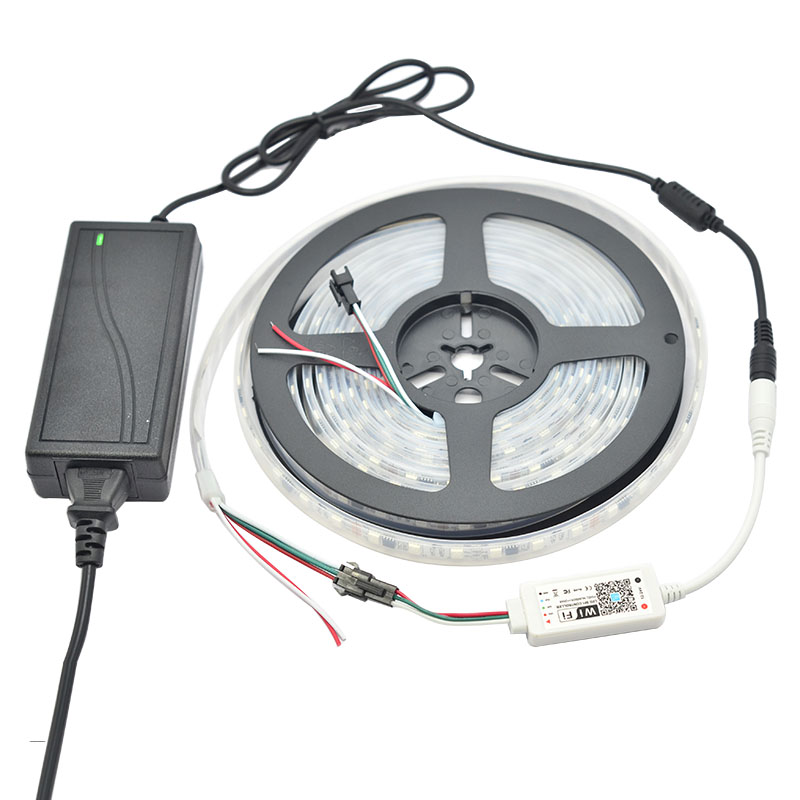

This is 2018 Newest LED-WiFi dream color music controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more Substantial. We can use an Android or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer. it can also works with Amazon Alexa and Google Assistant, IFTTT, Nest ect, smart home control system.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 16.4feet, in outdoor can control more than 98feet.
This controller has 1 output channel, the device interface of power supply and LED strip at both ends, three interface one the one side GND,DATA, V+ is connect led equipment, . This controller now can support 5 kinds of SPI strip in market, for DC5V/12V/24V UCS1903, WS2811, WS2812B, TM1812, TM1809, WS2801, SM16703,SK6812, IC Addressable led strip lights or led dream color string module lights or led pixel panel

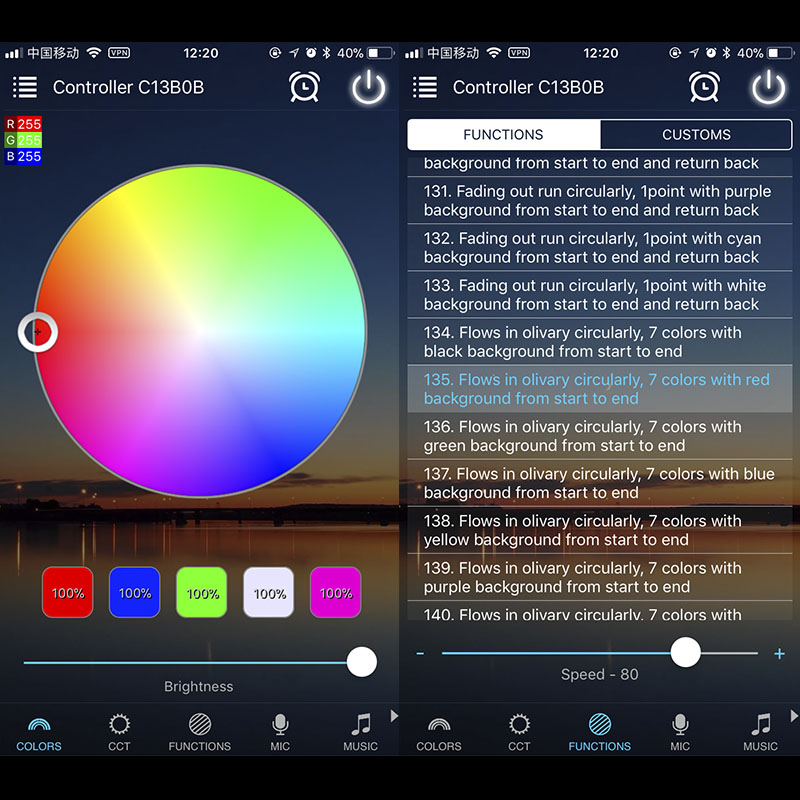

The APP built-in single color ring and you can select any color, and built-in 300 kinds of color changing and chasing modes and music, MIC modes, If you want to learn more, please watch our test video.
UCS1903 12V Flexible LED Strip Lights Test Video:
Category: SPI WIFI MUSIC LED Controller
Domination Principle: WiFi
APP: Magic Home Pro
Operation Platform: Android 4.0 or IOS 9.0 or higher
Signal Output: Support one-wire driver IC, able to control up to 2048 pixel
Input Voltage: DC12V DC24V
Supported Driver IC: WS2811, UCS1903, WS2812B, SM16703,SK6812
IP Rating: IP20
Working Temperature: -20-55℃
Control Distance: Visible distance 30M
Certification: CE, RoHS, FCC
Warranty: 2 Year
Net Weight: 14.5g
Carton Size(L*B*H): 55CM*29CM*23CM
QTY Per Carton: 200Sets/CTN
Gross Weight: 5.7kg
This controller supports two wires of WS2811, UCS1903, WS2812B, SM16703,SK6812 IC models
The controller built-in 2048 pixels, can be connect 6 rolls of WS2812B 5V led strips or 20 rolls of WS2811 DC12V led strips, a 1to8 amplifier can magnify the signal by 8 times,
So an amplifier can be connected over 24 rolls of WS2812B 60LEDs/m led strips,
two amplifier can be connected over 48 rolls of WS2812B 60LEDs/m led strips,
If you you want to control DC5V WS2812B/SK6812 led strip, please cut the red wire(V+), just connect white and green wire(GND,DAT) and all the led strips please supply DC5V power seperately, the controller supply DC12V 3A power seperately,
if your light power more than 80watt, we also suggest that you supply the light strip power separately.
if your led light pixel more than 2048 pixels, please use a signal amplifier,
If you do not know how to connect, or how to find the correct product, please feel free to contact me.
If you don't know how to use the amplifier to connected more than 1000 feet or how to connect the WIFI controller, please feel free to contact us, firstname.lastname@example.org
How to connect amplifier
Signal amplifier (repeater) receives one way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream-color striplight changes in effect; and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifier.
How to connect 3,000 foot+ WS2812B 5V LED Strips
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

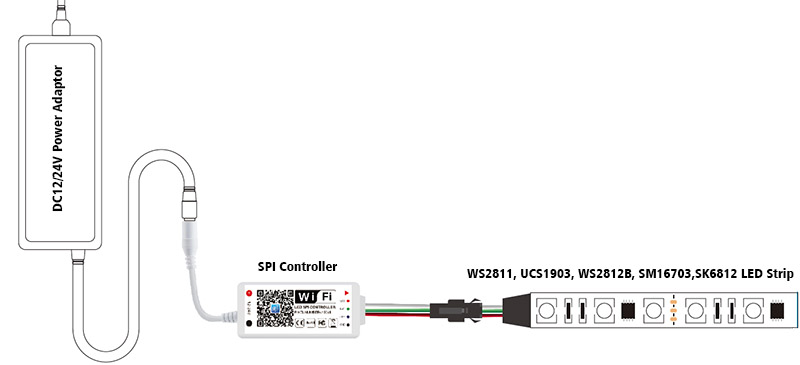

Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1 x LED WIFI Music Controller
