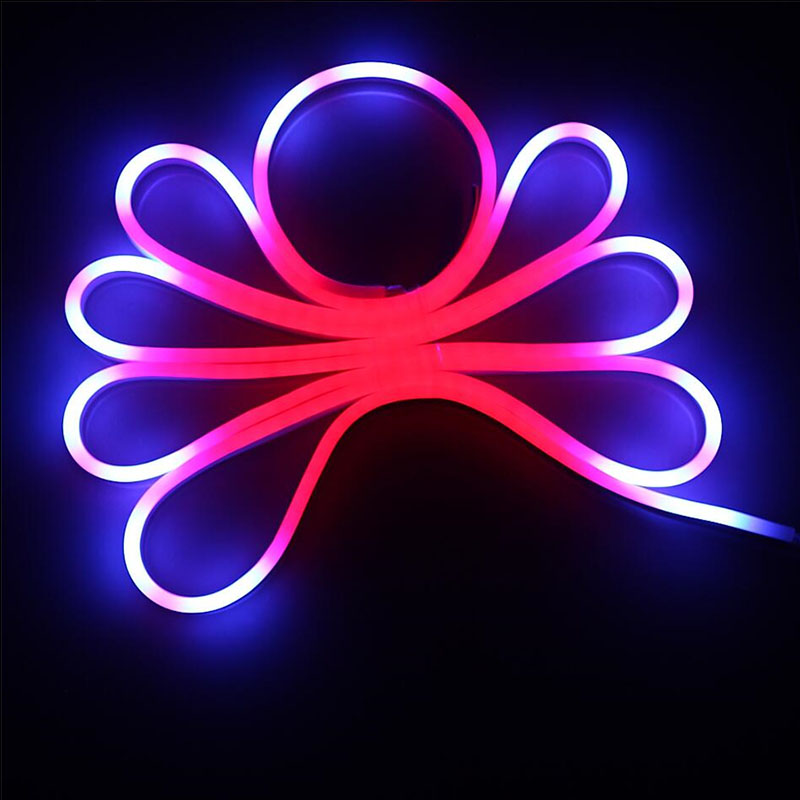

16-65ft Addressable RGB Neon Light Kit Dream Color Waterproof IP68 DC24V Ws2811 TM1934 Custom Flex Neon Rope For Pool Trucks Lighting
Related Products
16-65ft Addressable RGB...
$149.98 $111.9825% off
DC5-30V Tuya Wifi Music...
$49.98 $44.9810% off
FW1903 Dual Data Signal...
$27.98
DC5-24V WiFi-SPI+R9...
$49.98 $31.9836% off
DC5-24V SP107E Wireless...
$16.98
Outdoor Flexible Black...
$124.98
TM1934 Flexible LED Neon...
$79.98-
Special Price: $149.98 $111.9825% off
1. Adopts TM1934 addressable IC, LED chips with dual data wires, if one 6-LEDs segment damaged, you can solder the back data wire to repair them, easy to operate, very suitable for large industrial LED lighting projects.
2. This is a complete addressable LED neon light kit in waterproof IP68 with all the items that are added, plug and play!

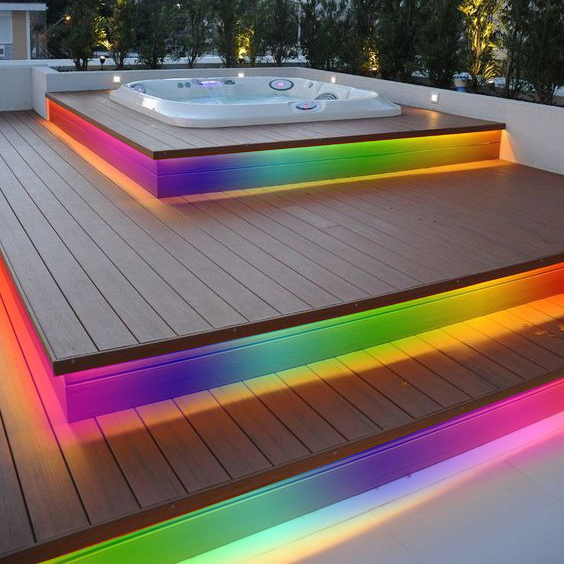

3. The DC24V full color LED neon light can be used for above ground pool lights, also can be installed under the water for about 1m/3.28ft, popular for outdoor LED application, such as deck lighting, pool lighting, cove lighting.
4. The LED SPI controller will be installed in the waterproof box, you can choose to use the SP107E music Bluetooth controller, SP108E WiFi DIY controller. Different controller has different color effects and functions, static or dynamic, choose the one you like.

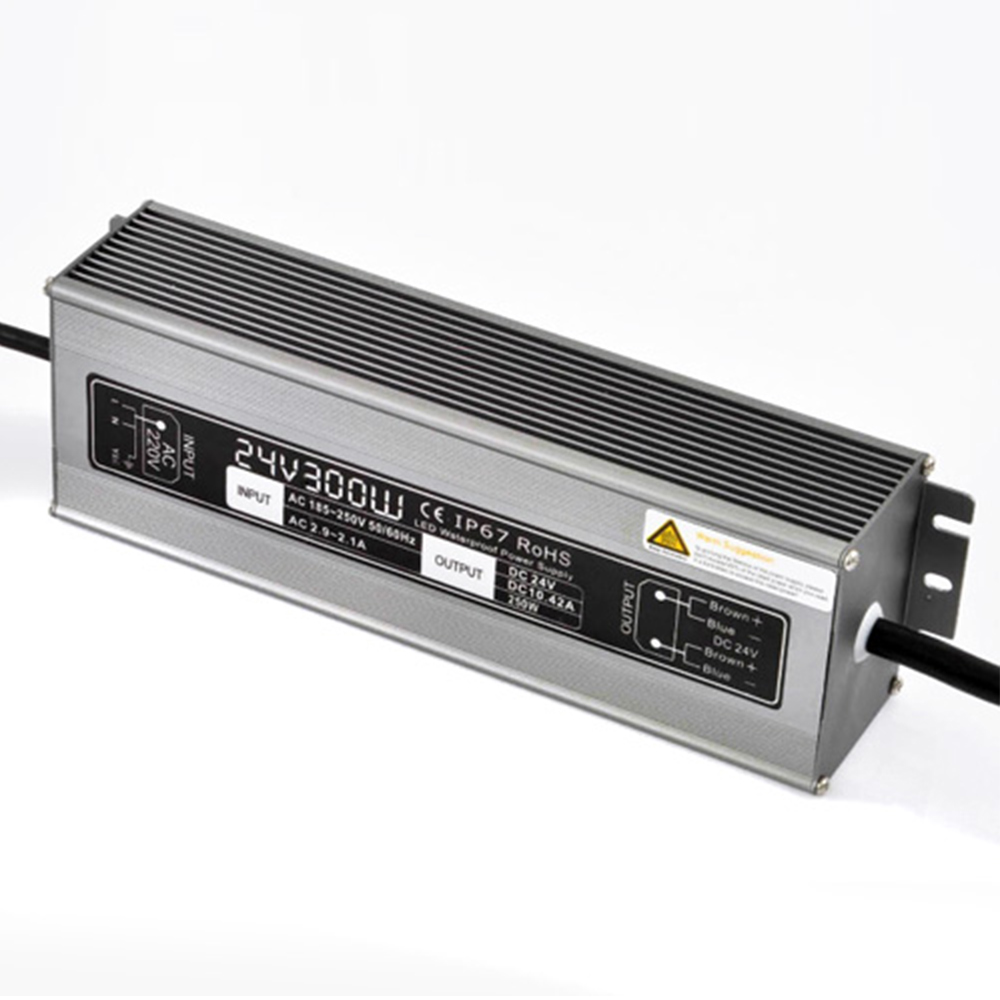

5. The DC24V waterproof IP67 LED power supply can also be used under the water, please note, only the AC power cord part is not waterproof.
6. LED neon rope light from 5m to 20m(16.4ft to 65.6ft), every 0.5m/1.64ft can be cut, offer to customize, please contact us or note your requirements when you are placing the order.
7. With waterproof fast connectors at both ends of the neon lighting, the waterproof 2-pin power extension default cable length is 1m/3.28ft, support customizes the cable length, no more than 3m/9.84ft.
8. Our DC24V TM1934 Addressable Color chasing LED neon lights need to power every 10m/32.8ft to avoid the voltage drop, that's to say you can power at both ends of 15m/49.2ft or 20m/65.6ft lights.
9. The light transmittance of black silicone neon tube is lower than white silicone tube housing, please confirm it. And the light spots also vary. The white silicone tubing has almost no light spots, while the black silicone tubing has a little.
Please Note:
For the LED neon lights, we do not suggest the customer cut and change the length by yourself. The internal structure of this model is complicated. After cutting, the signal and power cannot be connected in series. If you need a customized length, please contact us or leave the notes when you are placing the order, and we can make for you for free.
The following controllers all support WS2818 and TM1934 Chips:
1. Without RF remote, smartphone App control

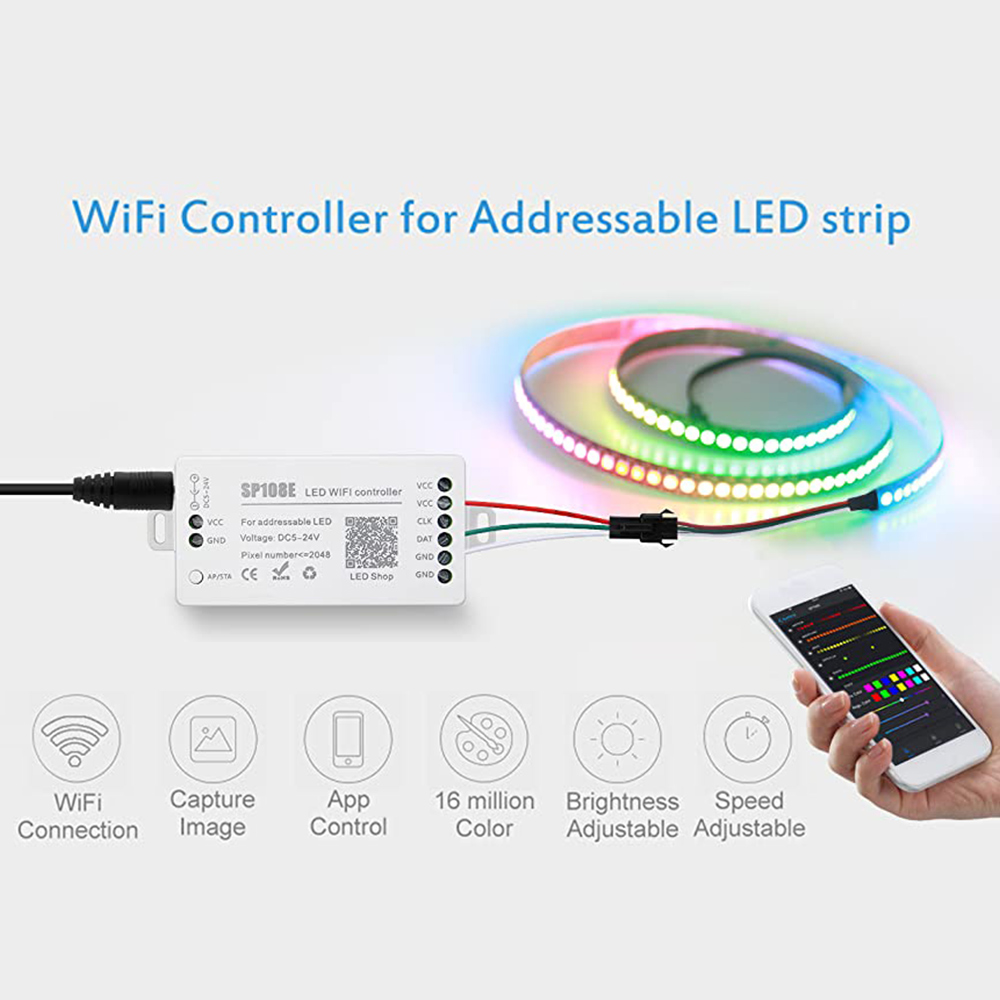

SP108E WiFi DIY Mode controller
2. Can be controlled by RF remote(you need to purchase by yourself), with button control
DSA DMX512 converter LED controller (no APP or software function, can be connect to DMX master to control led lights)
3. With RF remote control and some other control methods
SP602E Bluetooth music controller + RF remote
WiFi Alexa & Google Home Music TuYa Controller
HC100 SPI Controller + RFSP601E Bluetooth music controller + RF remote
What's the features of WS2818 and TM1934 led strip lights?
Both WS2818 and TM1934 are 4-channel (Breakpoint continue) dual data addressable led strip IC chips. One LED doesn't light up and will not affect the normal use of other LEDs. Unless two adjacent LEDs are damaged at the same time, the light strip will be not work.
We will conduct destructive testing and aging treatment for 2 hours before sending, and double waterproof treatment on the connector, so please don’t worry about product quality;
Please Note
If you purchse our LED neon light kit, we will send the length of LED neon light according to your choice, we also send a waterproof box and some waterproof accessories.
For LED mounting bracket, we will send you 10PCS per 5 meters, if you choose 10m LED neon light kit, we will send you 20PCS LED mounting brackets.
For 5m/10m kit, you only need to power at one side, so we will send you the following LED power supply
| Length | LED power supply |
| 5m/16.4ft kit | PSWP-24V-100W |
| 10m/32.8ft kit | PSWP-24V-150W |
For 15m/20m kit, you need to power at two ends, according to your wiring type, we provide two choices of LED power supply.
| Wiring Type | Circle | Linear |
| 15m/49.2ft kit | 1* PSWP-24V-300W | 2*PSWP-24V-150W |
| 20m/65.6ft kit | 1* PSWP-24V-350W | 2*PSWP-24V-200W |
Linear wiring is straight line.
If you need other lenghts, we can also customize for you, please contact us via email or live chat. Welcome your inquiry!
Specifications
| LED Chip: | WS2818/TM1934 IC super brights Chip |
| LED Strip Type: | SMD 5050 DreamColor |
| Controller Type: | SPI Bluetooth/WiFi (support IOS&Android device) |
| Dimensions: | W1.25cm(0.49 in ) x H2.3cm(0.91 in ) |
| Length: | 5-20M (16.4-65.6ft) |
| LED Quantity: | 60 LEDs/m |
| IC Quantity: | 10 ICs/m |
| Light Color: | Addressable RGB |
| Input Voltage: | 24V DC |
| Beam Angle: | 120 degrees |
| Working Power: | 14.4W per meter/3.28ft |
| Working Temperature: | -20° to 50° |
| Waterproof Level: | Waterproof IP68 |
| Lifetime: | 50,000+ hours |
Neon Flex LED Rope Lights Spec sheet
Package Included
1 x DC24V TM1934 Addressable LED neon light with waterproof fast connectors/extension wires

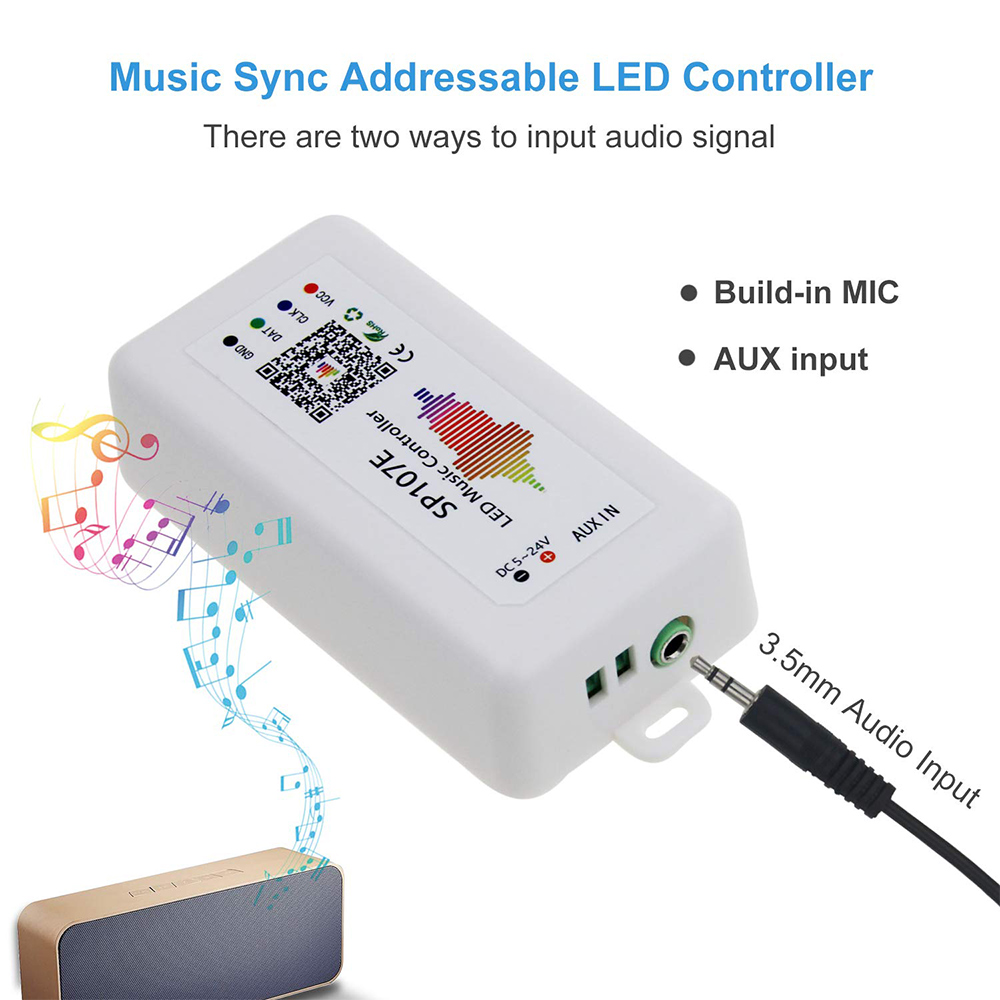

1 x SP107 Bluetooth music controller or othe controllers in the waterproof box
1 x DC24V IP67 waterproof power supply with AC power cord
10 x Mounting brackets ( for 5m/16.4ft neon rope lights, every 1m use two)
Control Function
Search for and install "LED Chord" via App Store or Google Play, then open the phone Bluetooth, open the app, search for LED Chord and connect it, then click directly to enter (we have completed the setup)
There are 120 color chase modes in the operation interface, you can mark the mode you like, and select 256 kinds of the single color by sliding the color ring. All modes can adjust brightness and speed.
At SuperLightingLED, your product’s warranty covers any items that are damaged upon arrival. If you received a defective item, please contact us before any negative feedback or reviews, and we will be happy to replace it at no cost.
Wiring Diagram
How to connect addressable led neon lights?
| By : Skip Walker Date Added: 10/29/2022 | |
| I've had these lights for around a month, and so far they're fantastic. Bright (adjustable), vibrant, soft diffusion so they won't blind if stared at, and with many customizable colors and presets. The Music Sync, tho I don't really use it, is nonetheless a cool option to have. What really caught my attention was its ability to be shaped into designs, and not simply lined up like most LED strips. All in all, I'm very impressed with these. I've no issues with the app or setup, tho am disappointed it's not 5g compatible it's no big deal. | |
Rating:
|
|
| By : Abdolreza Raissinia Date Added: 06/04/2021 | |
| I used this to line my stand up arcade cabinet and it blew me away. Great quality, flexible, easy to use. SO BRIGHT! The setting in my picture is low and but its really bright on low. I did note that the higher the brightness, the more the color washed out, but you can adjust brightness/color/effect to your taste. I highly recommend this product. I will buy again for next project. | |
| Rating:
|
|
| By : Dawn Cormier Date Added: 09/14/2020 | |
| According to the merchant’s installation instructions, I installed a 60ft neon roll in my swimming pool. The depth of the swimming pool is 5ft. Lighting for 1 month, everything is normal. Thanks！！ | |
| Rating:
|
|
