Special Price: $48.98 $38.9820% off

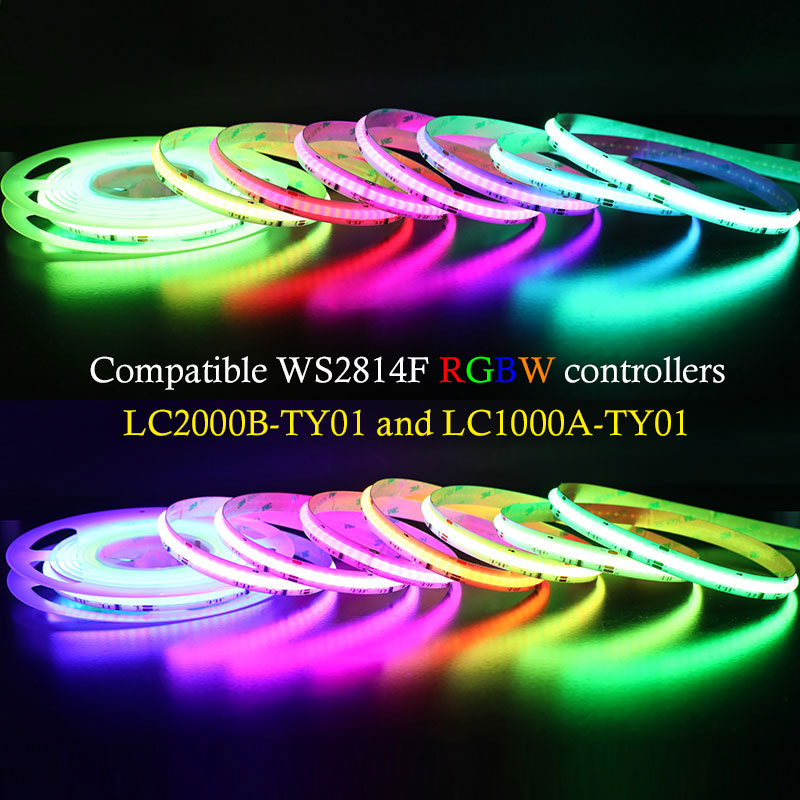

2023's newest COB LED strip RGB+W product - Wled Controller WS2814 Addressable RGBW LED COB Light Strip, the densest and brightest type with 784LEDs/m higher density, the only FCOB RGBWIC led strip. Adapt WS2814F single wire data transmission, this addressable LED RGBW COB strip is compatible with LC2000B-TY01, LC1000A-TY01 WiFi Tuya controllers and SP639E Bluetooth Mini Controller (controler in the kit) to achieve a wide range of RGBW static and dynamic light colors.

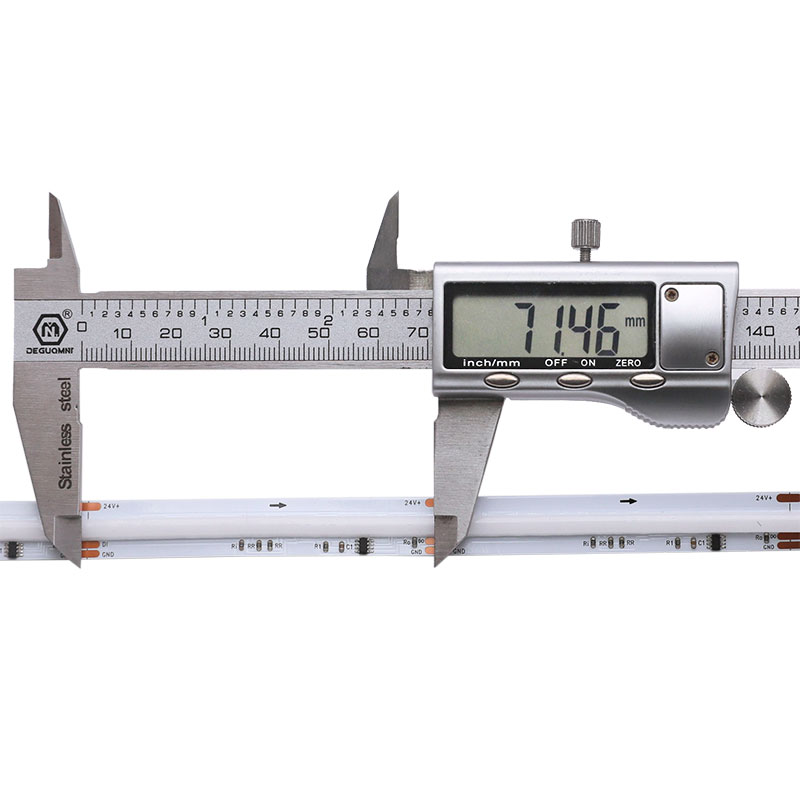

The RGBW addressable LED COB tape light uses a DC 24 volt low voltage input, a separate circuit loop every 71.43mm, and each 71.43mm=1 pixel, so there are 14 pixels one meter and 70 pixels per roll. 5 meters in a roll, 90W/roll, choose a 150W 4.16A led power supply MeanWell LRS-150-24.

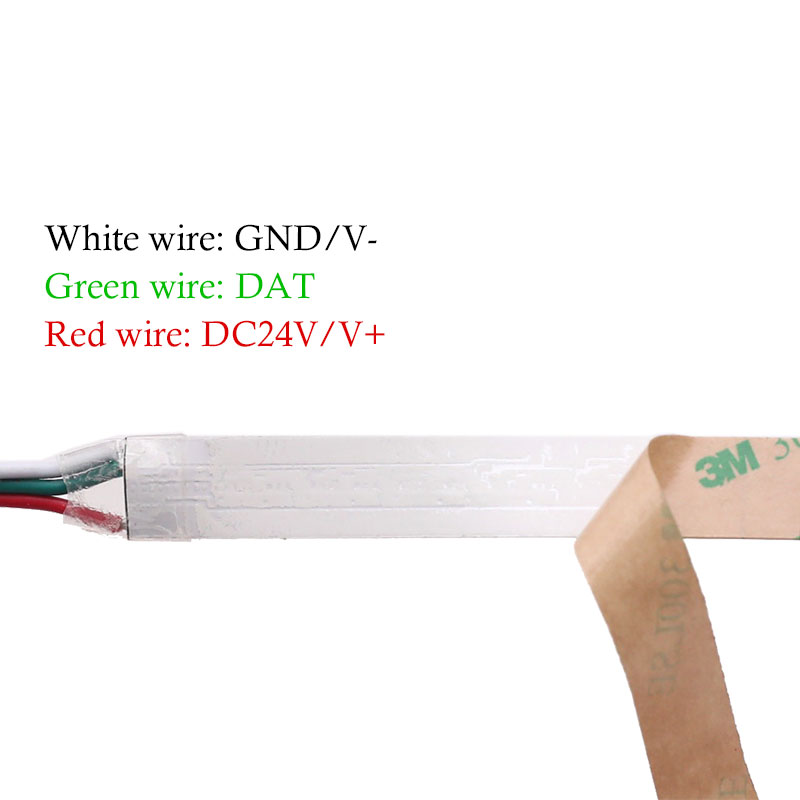

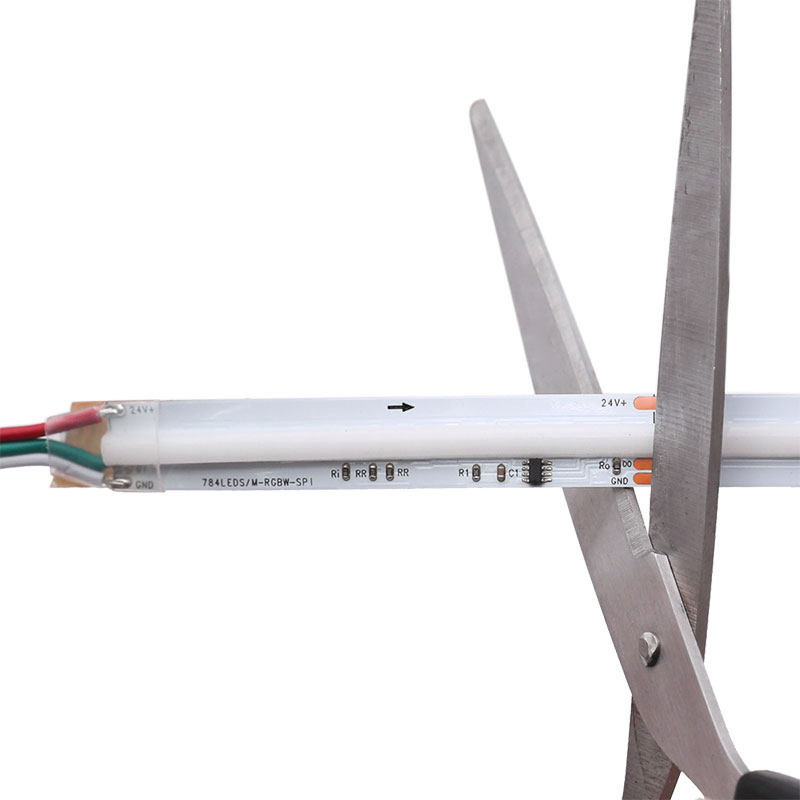

And the RGBW COB addressable led strip supports cutting and reconnecting (using a 3PIN COB connector) at the cut line. Each end of the digital COB LED strip comes with a 3pin JST connector for easy connection.
In addition to this 784 LEDs/m density version, we also offer a more cost-effective 576 LEDs/m version with same excellent dotless lighting effect.
5m kit: 5m led strip + SP639E + LRS-150-24 + AC plug
10m kit: 10m led strip + SP639E + LRS-350-24 + AC plug
COB Light Strip Specification
RGBW COB LED Strip Spectrum Test Report (3000K), (4000K), (6000K)
Standards and Certifications
Product Specification
| Product Type: | 24 Volt Addressable RGBW LED COB Light Strip |
| IC Chip: | WS2814F IC |
| Input Voltage: | DC24V |
| Power: | 18W/m, 90W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | Addressable RGB+White |
| PCB Width: | 10mm/0.4" |
| LED Quantity: | 784LEDs/m, 239/ft |
| Waterproof Rating: | IP20 / IP67 |
| Cuttable: | 71.43mm/2.8", 14ICs/m, 70ICs/Roll |
| Lumen: |
3000k: Red-375 lm/W Green-2173 lm/W Blue-342 lm/W W-1307 lm/W RGBW-893 lm/W 4000k: Red-381 lm/W Green-2098 lm/W Blue-323 lm/W W-1352 lm/W RGBW-887 lm/W 6000k: Red-420 lm/W Green-2165 lm/W Blue-324 lm/W W-1320 lm/W RGBW-908 lm/W |
| Lifespan: | 50,000 hours + |
| Beam Angle: | 180° |
| Strip Length: | 5m/16.4Ft |
How to Wire Addressable RGBW COB LED Strip?
