Special Price: $25.98 $21.9815% off

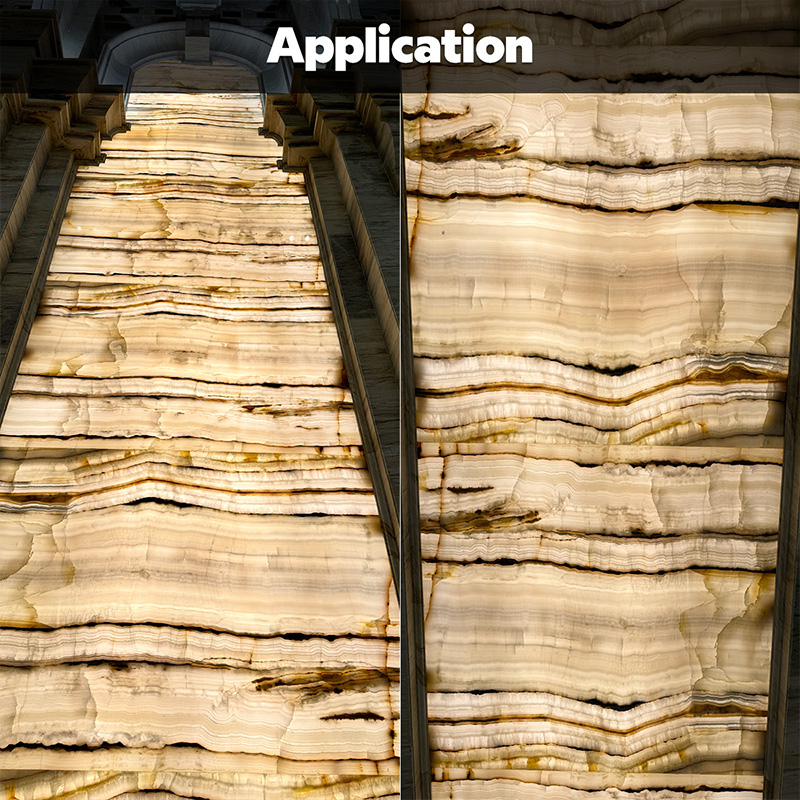

This LED paper sheet can emit 3000K warm white light without dark zones. The illumination is uniform, creating a comfortable and cozy atmosphere. LED sheeting is widely used to backlit countertops, mainly placed behind semi-transparent materials such as marble or onyx. It can also be applied for wall backlighting decoration in commercial settings like hotels.

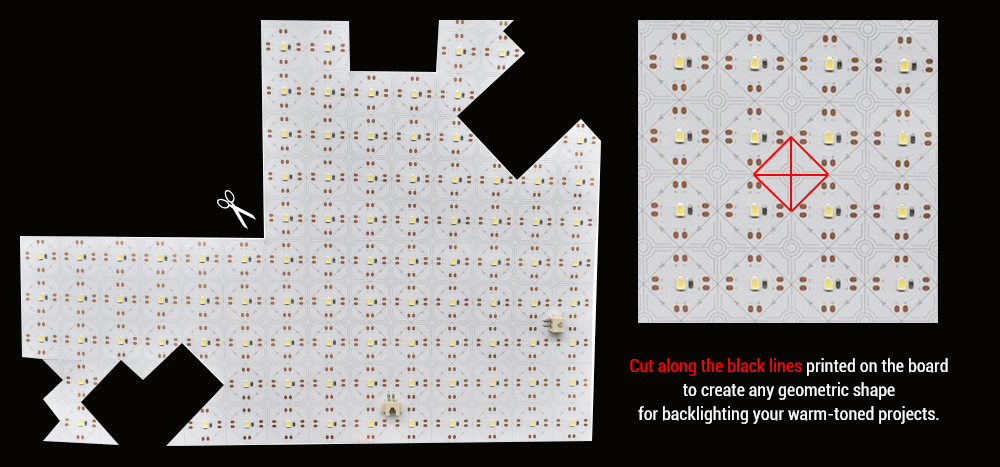

Our LED backlight sheet is flexible and can be folded to fit curved surfaces and square corners. It can also be cut, and the cutting unit is super small - Each LED chip can be cut individually. The surface of the flat LED sheet is printed with horizontal, vertical, and diagonal cutting guidelines. You can cut along with scissors to customize the size of the LED panel sheet. These LED lighting sheets can also be cut into logos or other irregular shapes for signage lighting and art design illumination.

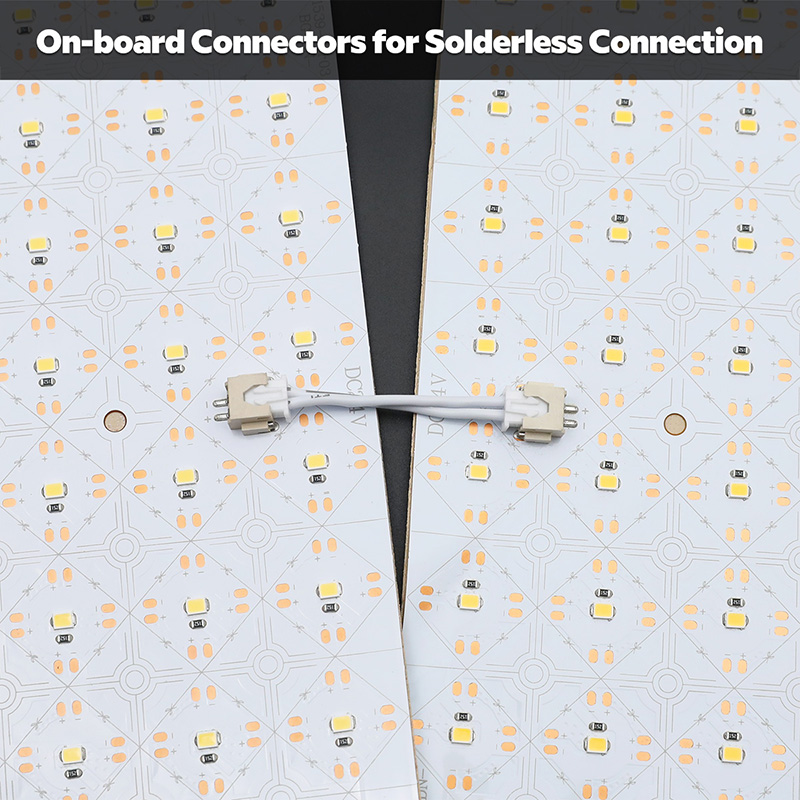

Made of double-layer FPC material, this thin LED sheet is lightweight and portable, but guarantees a stable luminous effect. Multiple sheets can be connected via board-mounted connectors to cover large areas. If you have professional soldering skills, you can also solder via pin dots. The height of the connectors is 8mm (0.31in) and we also offer a sheet LED version without connectors for customers who have special requirements for the height of the sheet.

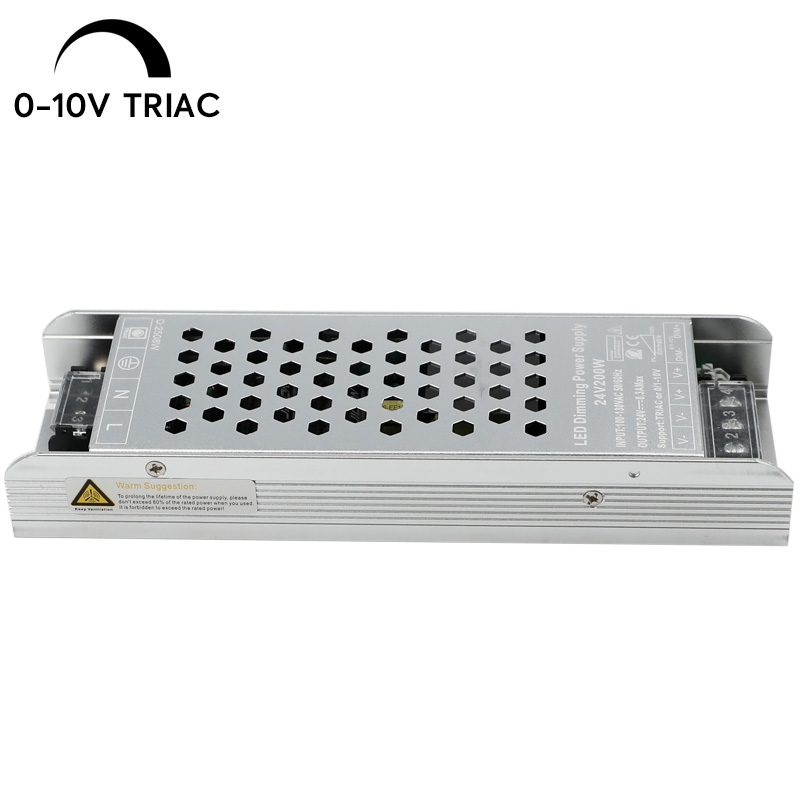

To run and dim these LED sheets, a 24V power transformer and a dimmer are necessary. Adhesive backing is designed for easier installation. There are also screw holes on the surface for fixing with screws.
Features:
1. 3000K warm white light, bright and even illumination, dimmable with a dimmer.

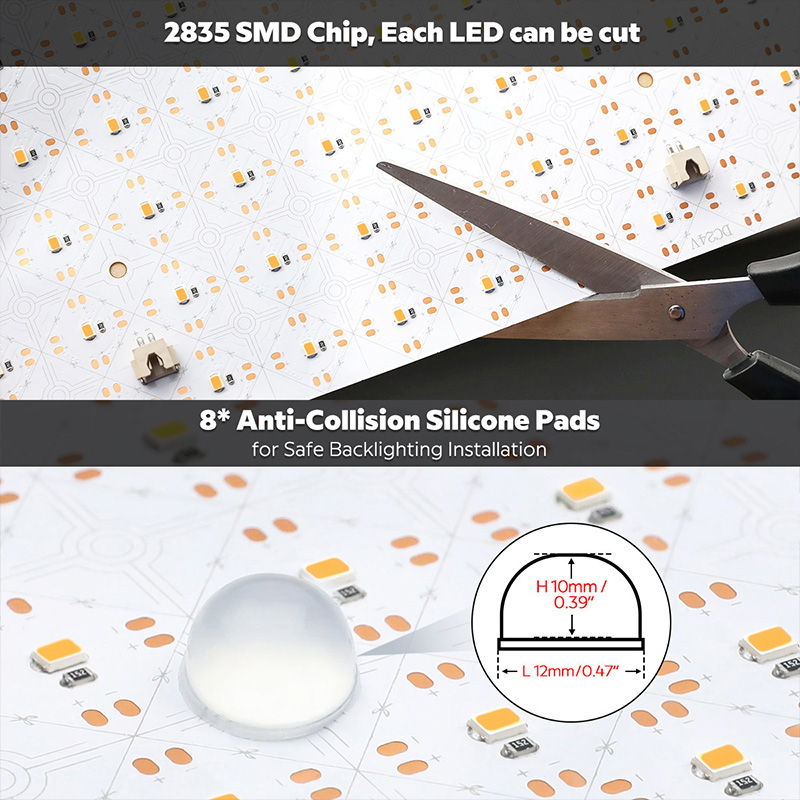

2. Cut to size, each LED chip can be cut with scissors. (0.87”X0.87”)

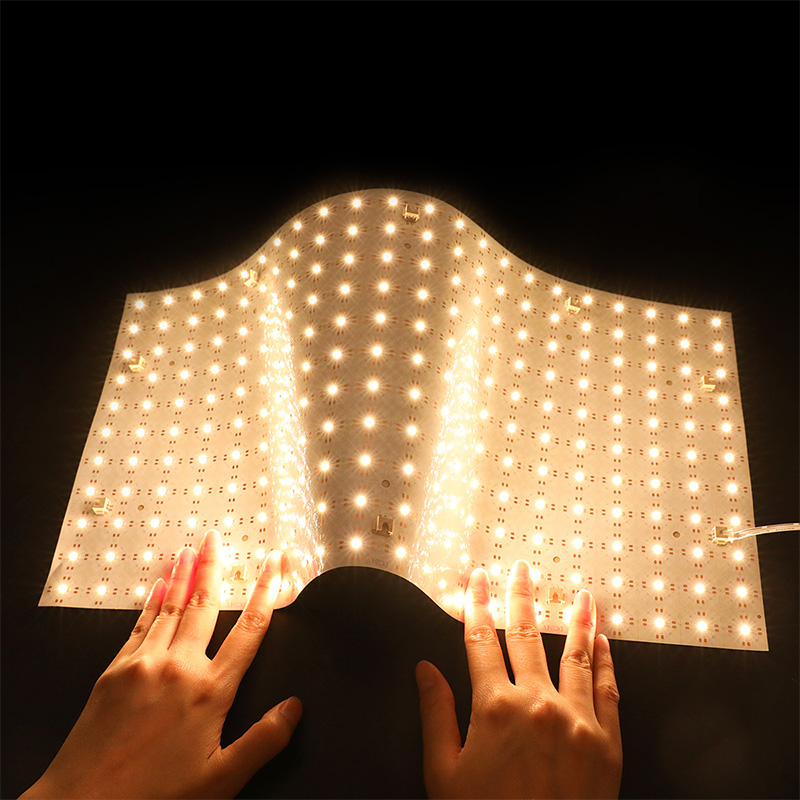

3. Flexible, bendable, and paper-thin.
4. Connectable to cover large area. 10 plug-and-play connectors are mounted on the surface.

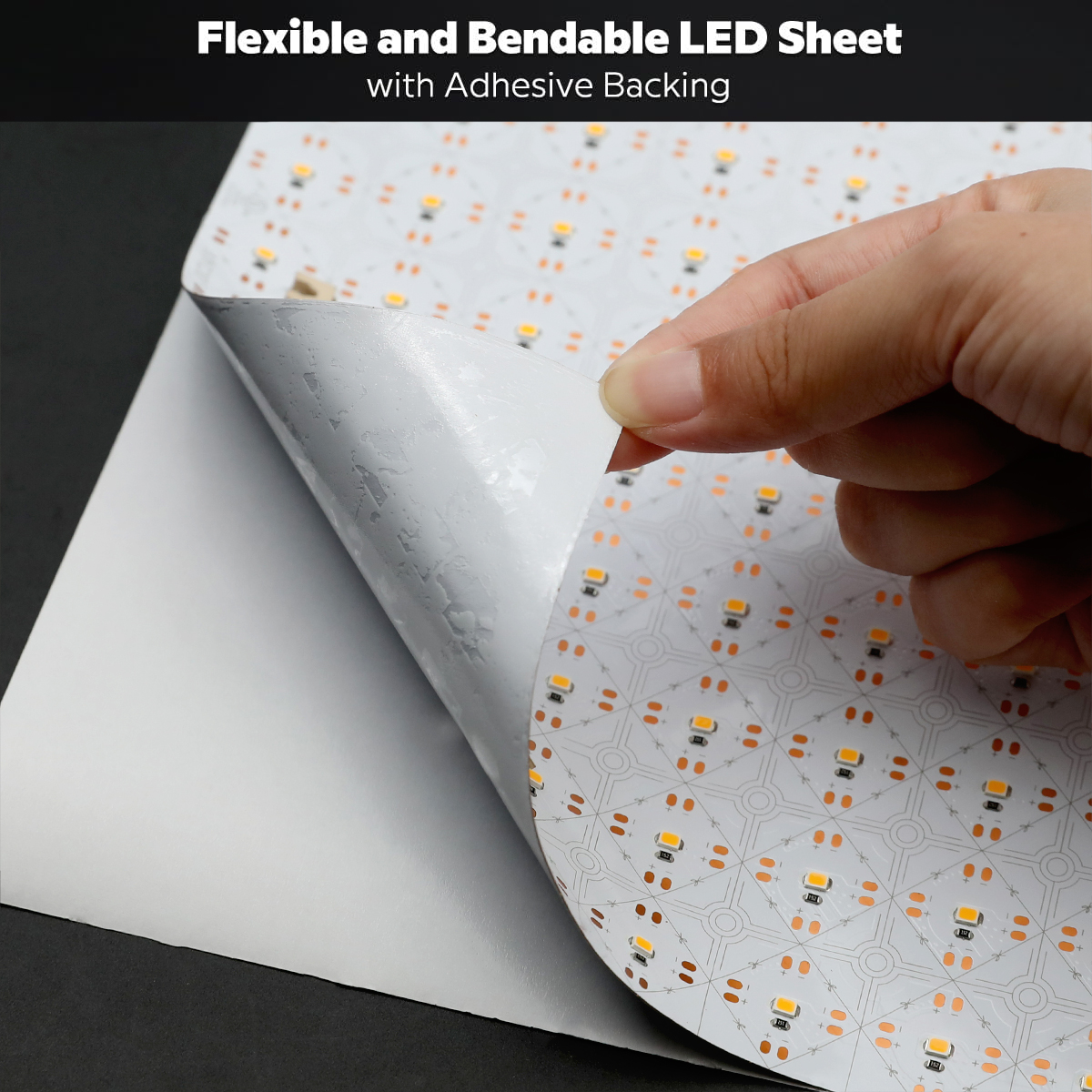

5. 3M adhesive backing makes fast installation possible.
6. IP20 non-waterproof and IP54 splash-proof version available to suit different needs.
7. Accessories such as power adapter leads and interconnectors are included for easier installation and connection.
The "22X11" specified in the title indicates that there are 22 LEDs in a row, with a total of 11 rows.
A connector terminal withstands a current of 1 ampere. Each connector can connect up to 3 LED light sheets in a series.
Click here to discover more LED light sheets: Flexible Cuttable LED Sheet Lights
White LED Sheet Manual Download
Video showcasing the CCT color LED sheet used for marble wall backlighting.
Kindly note that the product featured in the video is different from the one offered here. (mainly color difference)
Product Specifications
| LED Strip Type: | 3000K Warm White Flexible LED Sheets for Countertops Backlighting |
| LED Chip: | SMD2835 |
| Input Voltage: | 24V DC |

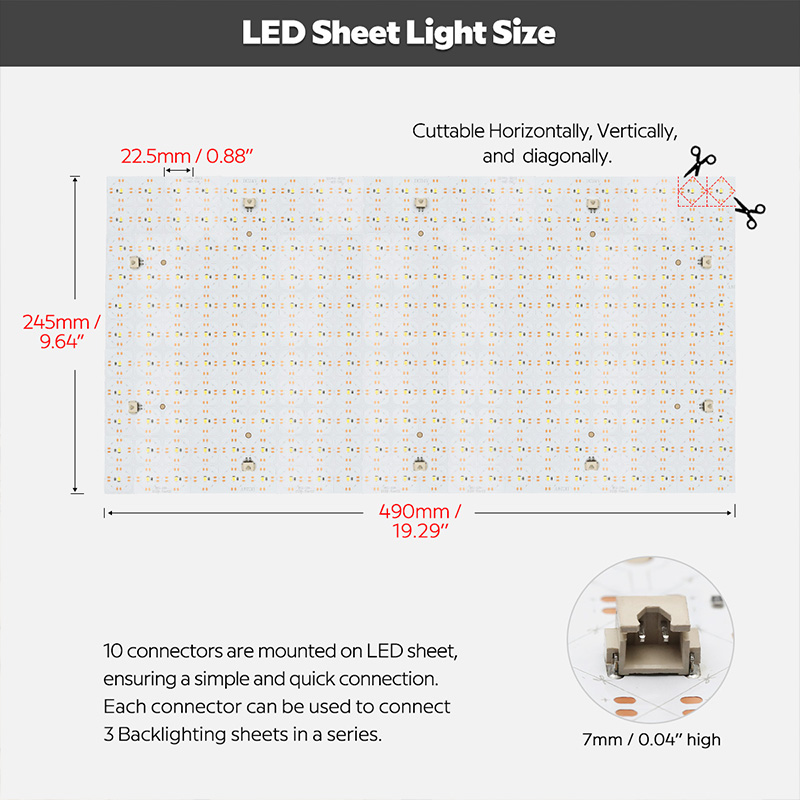

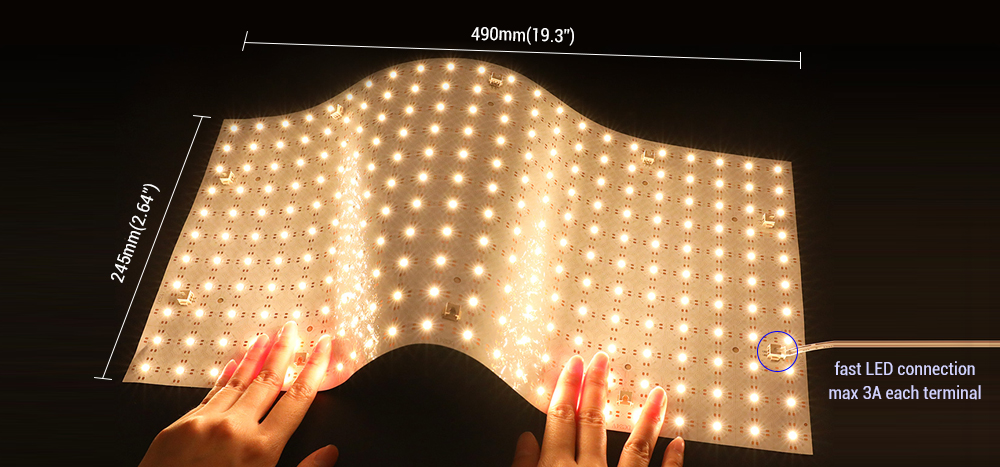

| Product Size: | L19.2 "x W9.6"X0.3" (490mm*245mm*8mm) |
|
Light Color:
|
Warm White 3000K
|
| Lumen: | 2800Lm/m |
| LED Quantity: | 242 LEDs per sheet |
| Working Power: | 28W per sheet |
| Cut Unit: | 1 LED (0.87"x 0.87") |
| Lifespan: | 50,000+hours |
| Beam Pattern: | 120 degrees |
| IP Rating: | Non-waterproof IP20/ Waterproof IP54 |
|
CRI:
|
90+
|
| Warranty: | 2 years |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
