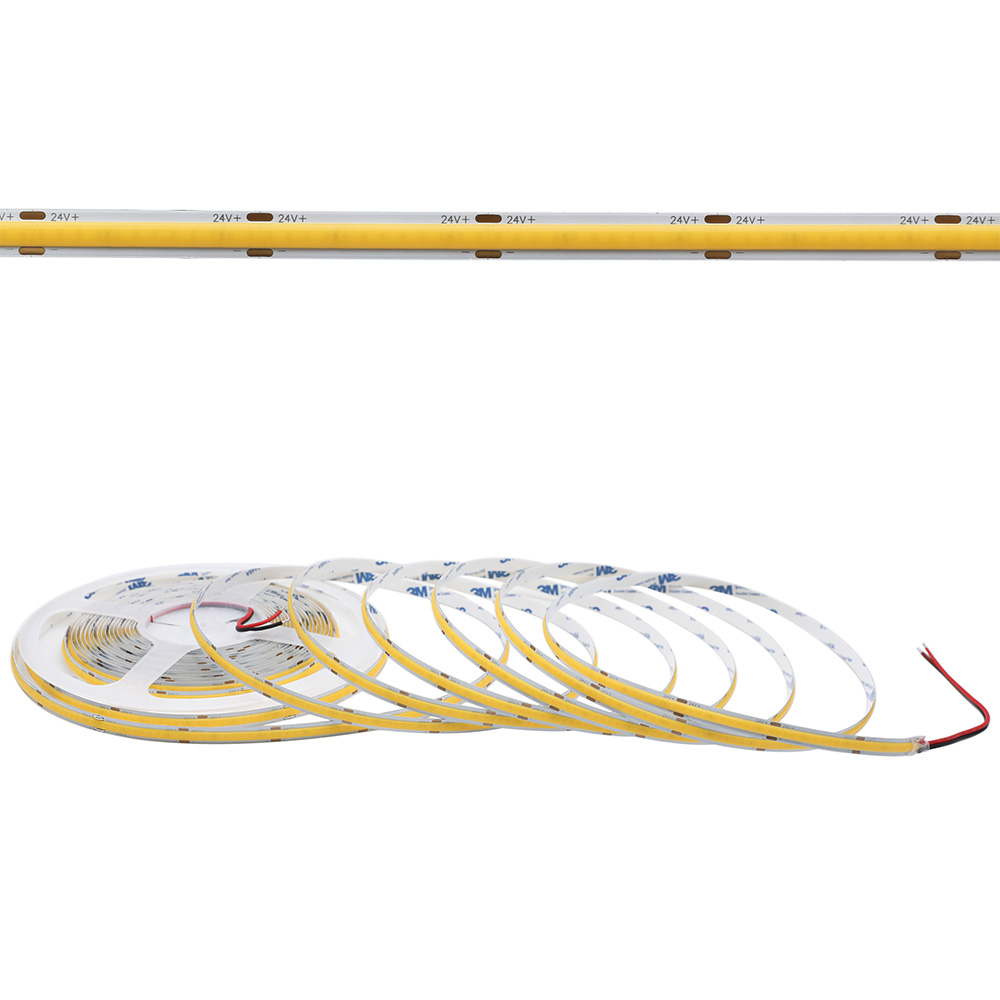

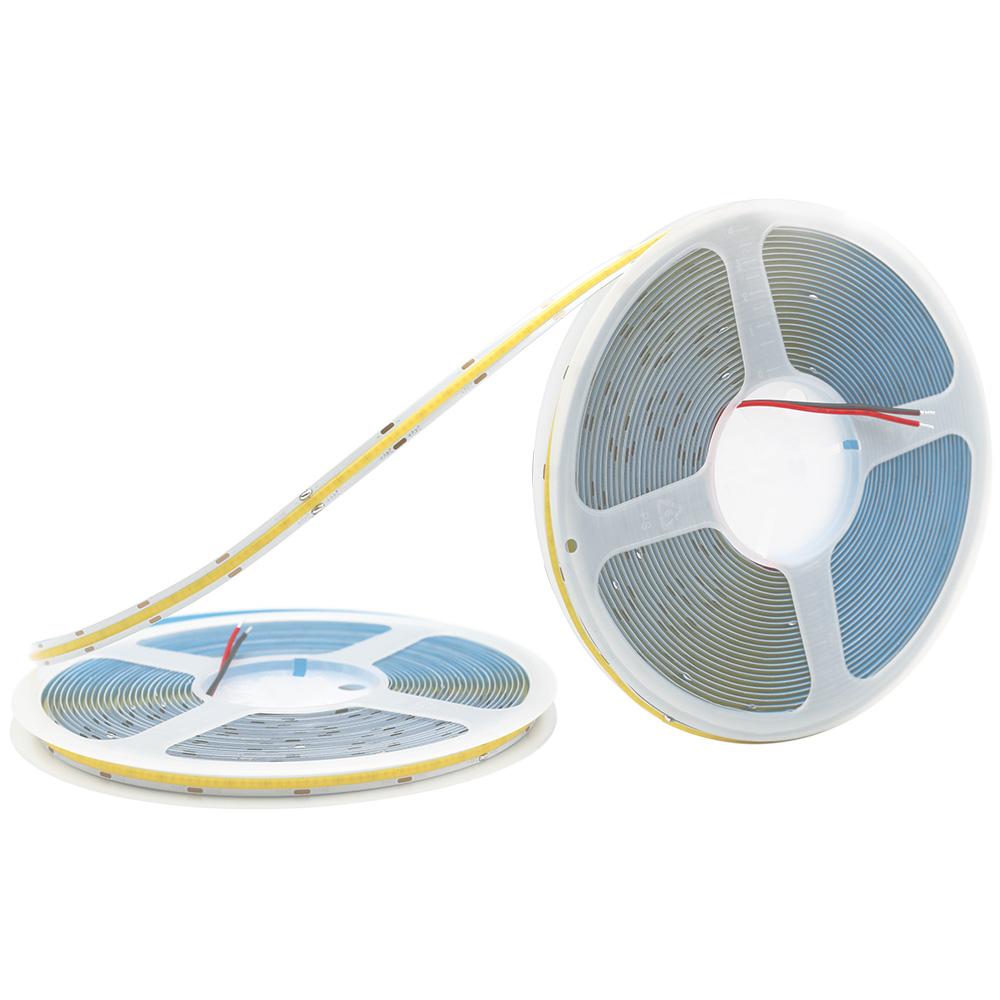

DC24V Ultra Long White COB LED Strip Lighting - 384Chips/m - 16.4~65.6Ft Without Voltage Drop
Related Products
DC24V Ultra Long White...
$16.99 $14.9912% off
Single Color LED...
$19.98
Mean Well LRS-200-24 ...
$39.00 $36.985% off
All In One SMD And COB...
$3.99
Single Color LED...
$19.98 $18.985% off
200W8.33A DC24V Constant...
$49.98
15A*1CH Brightness LED...
$22.98-
Special Price: $16.99 $14.9912% off
What is COB? COB VS LED

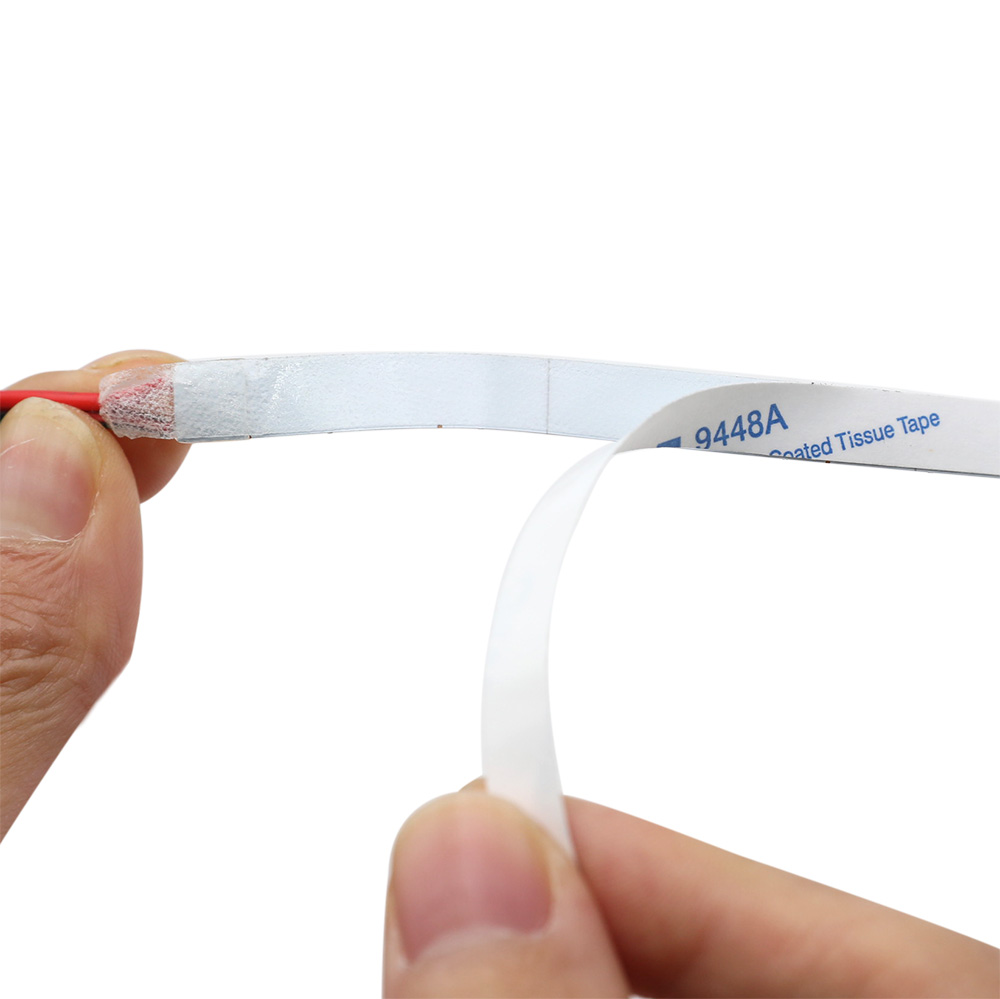

COB stands for chip-on-board, the LED chip is placed directly on the PCB board, sealed by a sealing layer, and showing different colors through different sealing layers. The COB bedroom LED light strip has a linear luminescence and no light spot due to the linear sealing layer, which is the most obvious difference between COB and LED light strips. COB LED strips have the general characteristics of light strips, energy-saving, high flexibility(more flexible than LED strips), high CRI, can be cut, and the 3M adhesive design is easy to install.
Learn more: What is COB LED strip light?
|
• Super density 384 Chips per meter • 8mm/0.32in wide • 20m/65.6Ft without voltage drop, you can only power at one side, perfect for bedroom lighting design • 10W/m, 3W/Ft • DC24V safety voltage input • Warm White/ Natural White/ Daylight White optional • Under-cabinet lighting; bookshelf lighting Waterproof Available
|
IP20
How to choose LED strip lights options?
We provide multiple options for indoor or outdoor use, including the LED controller, LED power supply, if you purchase the LED power supply in the kit, we will also send you an extra AC plug, please read the following list to get detailed product:
| Length | Power | Kit for indoor use | Kit for outdoor use |
| 5m / 16.4Ft | 50W | ||
|
Controller: V1 + RT1 Power supply: 24V 72W |
Controller: FUT036S-P + FUT006 Power supply: 24V 150W waterproof |
||
| 10m / 32.8Ft | 100W | ||
|
Controller: V1 + RT1 Power Supply: 24V 120W |
Controller: FUT036S-P + FUT006 Power Supply: 24V 150W waterproof |
||
| 15m/49.2Ft | 150W | ||
|
Controller: V1-L + R6-1 Power Supply: 24V 200W MW |
Controller: FUT036S-P + FUT006 Power Supply: 24V 200W waterproof |
||
| 20m/65.6Ft | 200W | ||
|
Controller: V1-L + R6-1 Power Supply: 24V 350W MW |
Controller: FUT036S-P + FUT006 Power Supply: 24V 200W waterproof |
If you want to achieve APP control, you can purchase our Milight single color LED controller
When you purchase the LED power adapter, please read the following article: How to choose the correct LED power supply
For the waterproof LED controller, only including the LED controller, if you need the LED remote controller, you can purchase from the Skydance single color LED remote controller series
Standards and Certifications
Product Specification
| LED Strip Type |
COB LED (COB Flexible led strip light specification  ) |
| LED Chip | Epistar Chip (COB Chip) |
| Input Voltage | DC24V |
| Power | 10W/m; 3W/Ft; 100 LM/W |
| Working Temperature | -20℃~+45℃ |
| Storage Temperature | -20℃~+60℃ |
| LED Color | Warm White(3000k), Nature White(4000K), Daylight White(6000K) |

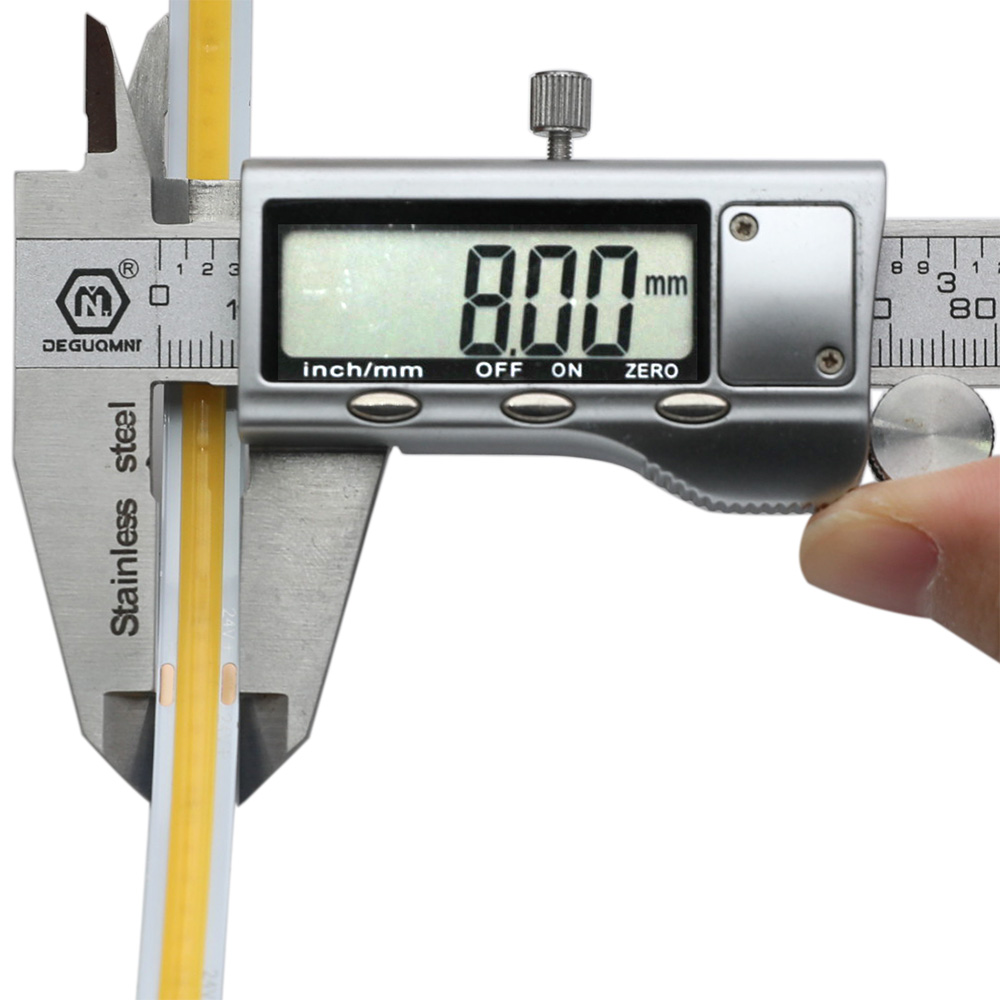

| PCB Width | 8mm |
| LED Quantity | 384 Chips/m |
| Waterproof Rating | IP20 / IP67 |

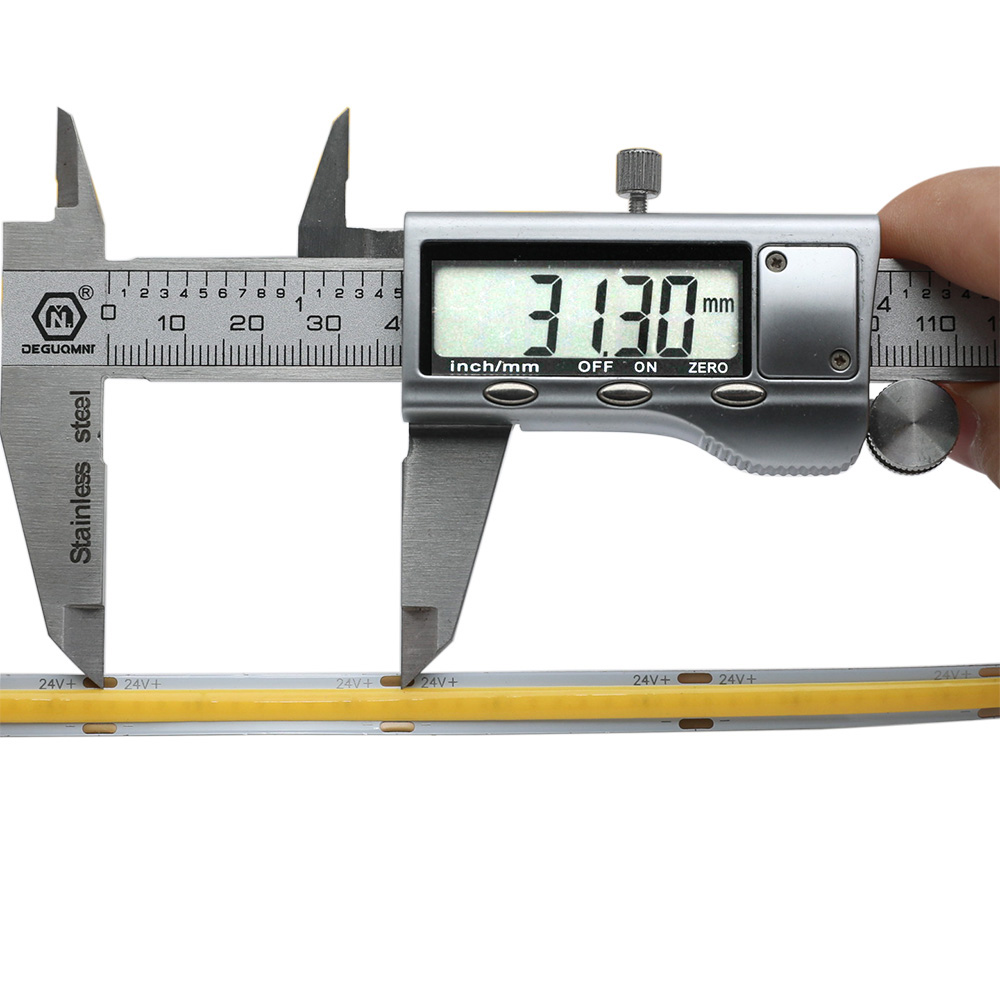

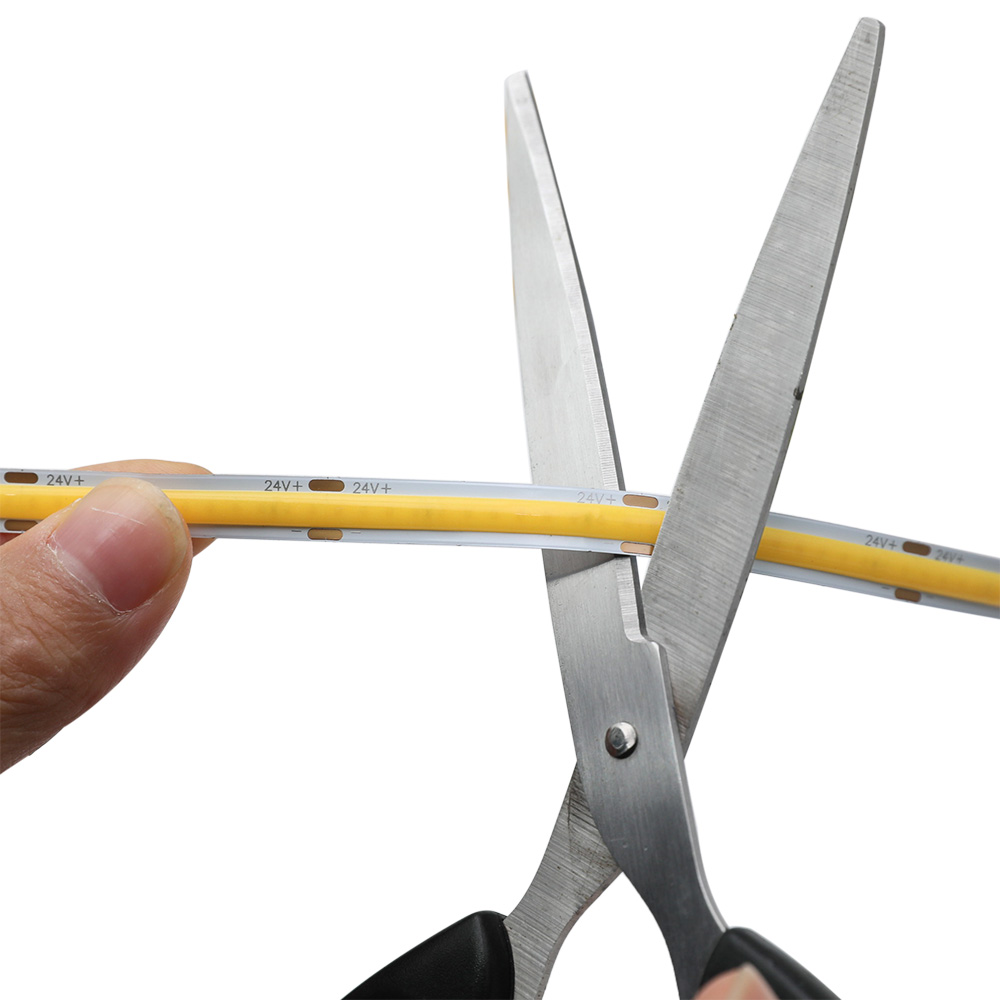

| Cut Length | 31.25mm |
| PCB Color | White |
| Color Rendering Index | Ra＞90 |
| Beam Angle | 180° |
| Length | 5m/16.4Ft; 10m/32.8Ft; 15m/49.2Ft; 20m/65.6Ft optional |
Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
• Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.
• Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.
• Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Don't know how to wire? please read the following article: How to wire the single color LED strip light
