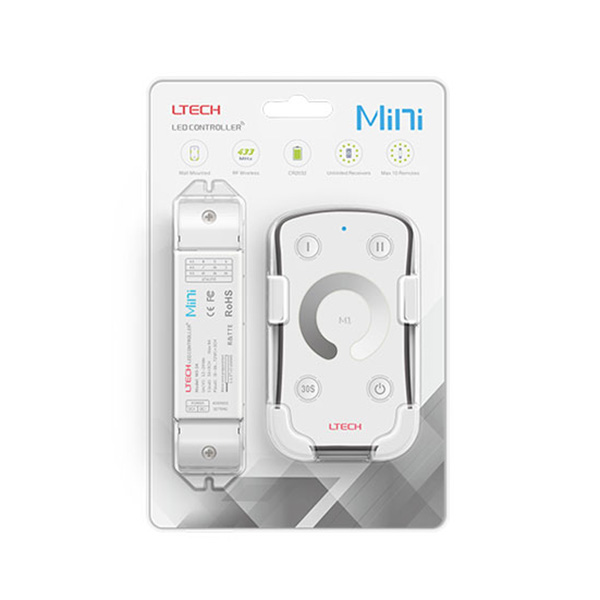

DIM Controller M1+M3-3A
  • DIM Controller M1+M3-3A
  • DIM Controller M1+M3-3A

DIM Controller M1+M3-3A

Model: M1+M3-3A

$29.98

Free Shipping Worldwide On Order Over $199
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Mini series LED controller collected pithy research and development of LED controller for 12 years, abandon the past there are many disadvantages of infrared remote control, using advanced RF remote control, wireless signal with strong penetrating power, no longer restricted by all kinds of blockage.

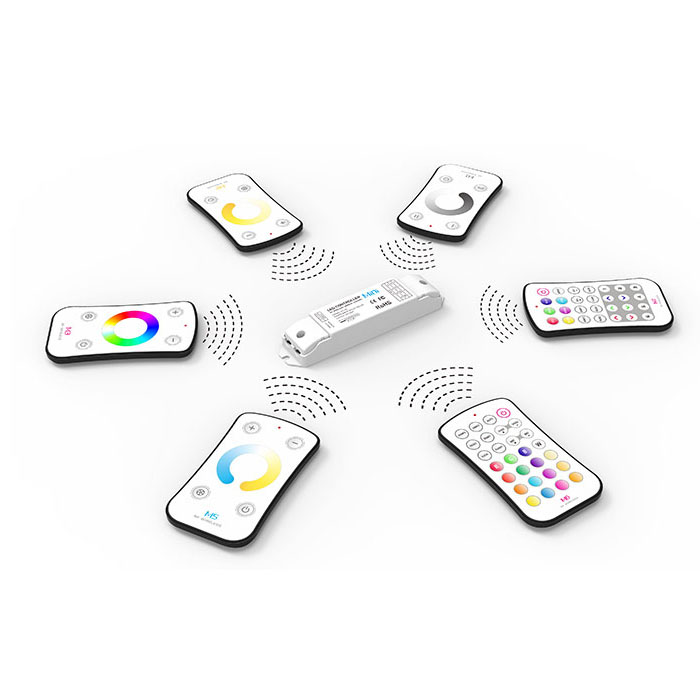

    4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design:One receiver compatible with six different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.



    M1, M2, M3, M5, M6, M7 Remote Control

    Working voltage :DC3V(Battery CR2032 )

    Working Frequency :433.92 MHz

    Remote Distance :40-50m

    Working Temp. :-20℃~55℃

    Dimensions: L104×W60×H9mm

    Weight (N.W.) :42g



    M3-3A Receiving controller

    Power input :DC12V-DC24V

    Max Current load :Max 3A ×3CH

    Max Output power :108W/216W (12V/24V)

    Compatible remote :M1/M2/M3/M5/M6/M7

    Working Temp. :-30℃~55℃

    Dimensions: L135×W30×H20mm

    Weight (N.W.) :47g



    Product details: M1+M3-3A





    DIM Controller M1+M3-3A

    DIM Controller M1+M3-3ADIM Controller M1+M3-3A
