Special Price: $51.98

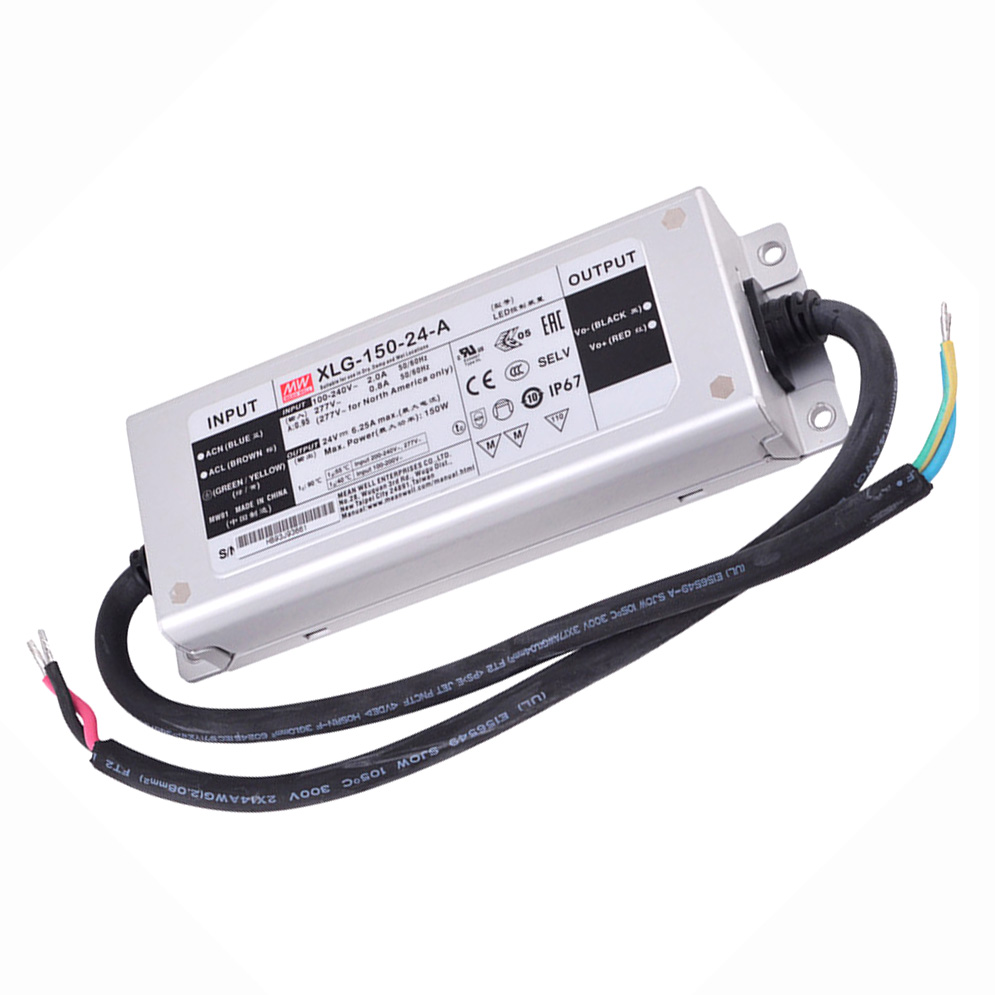

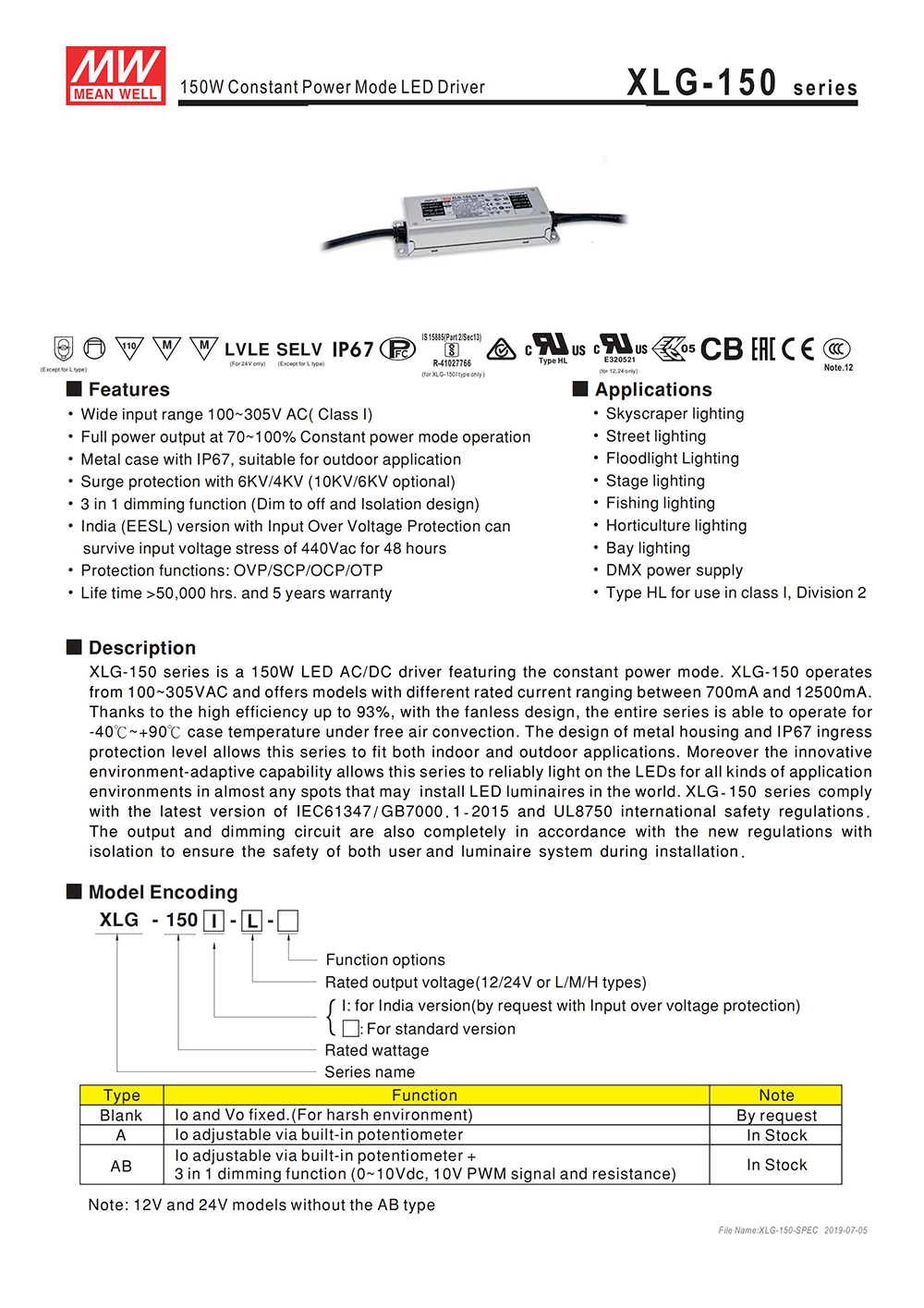

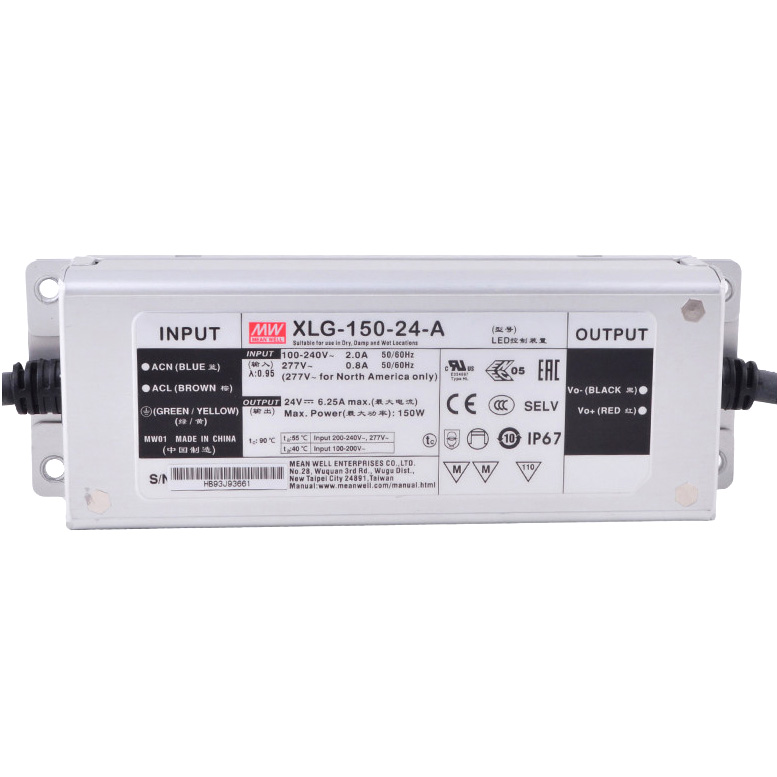

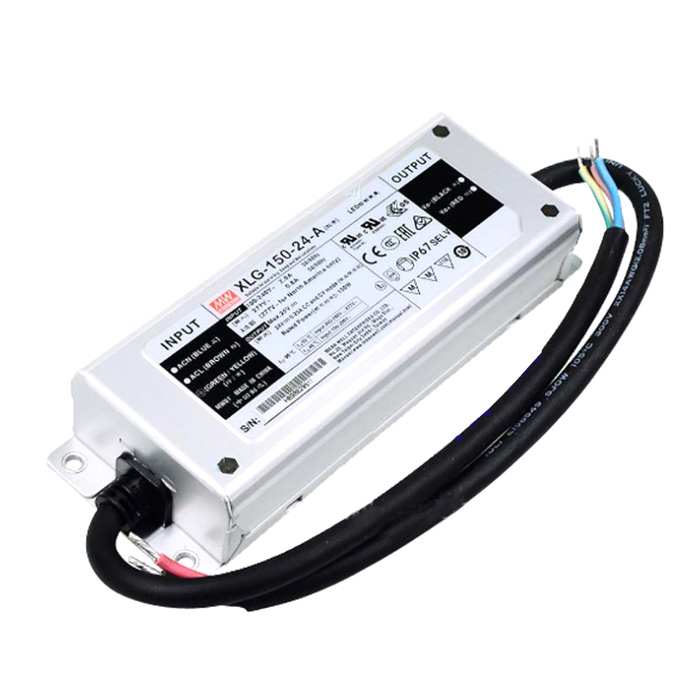

Meanwell XLG-150-24-A UL Listed IP67 24VDC 150W Power Supply Outdoor. XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode. XLG-150 operates from 1 00~305VAC and offers models with different rated current ranging between 700mA and 12500mA.Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40C ~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the L EDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-1 50 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.To offer a complete product choice, the XLG-150/200 series (150/ 200W) is soon officially unveiled after the launch of XLG-25/50/75 /100 series (25/50/75 /100W). The whole series adopts constant power mode design, which is convenient for customers to design and adjust driver current for various LED light sources.Besides, adopting constant power and wide current range adjustable design, XLG series has other voltage output choices, such as 12V/24V output for constant voltage applications, and L/M/H types output for constant current applications, fulfilling customer demands of different LED design and usage.
12V and 24V Output Design
12V and 24V models are suitable for general indoor and outdoor lighting projects, including waterproof light strips/advertising lightboxes or voltage sources with DMX control.
L Type Design

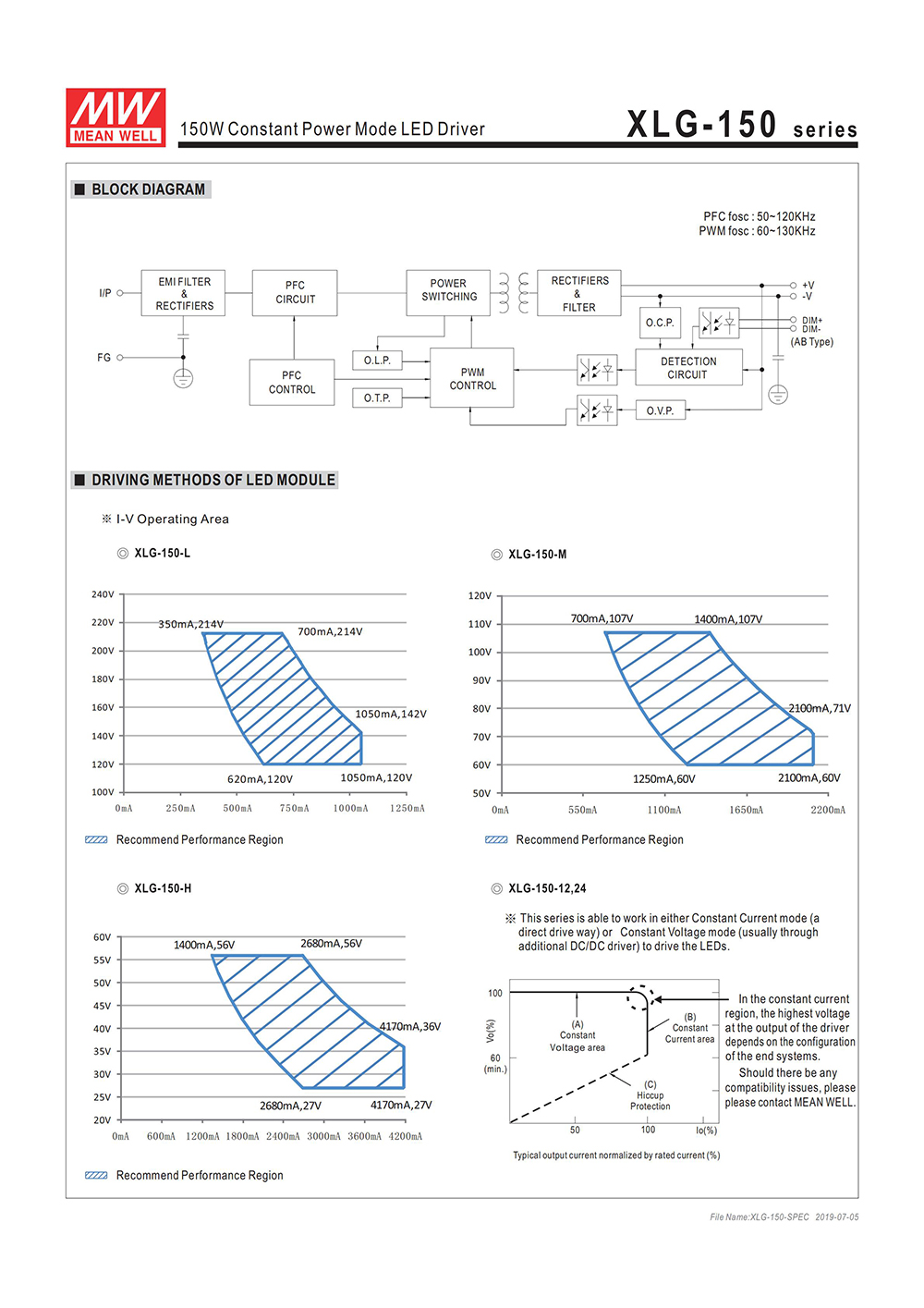

L type is designed for a full power operation from 700 mA to 1050 mA. The adjustable output current allows customers to adjust driver current and wattage. The wattage range covers from 25W to 240W for selection based on different forward-voltage.
M Type Design
The constant current of M-type models is adjustable from 1400 mA to 2100 mA for full-power output design. The M Type is only available for 150W; however, XLG-150-M Type is available for 100W applications.
H Type Design
The H type design is a full power operate based on 56V output and provides different driver currents for different wattage usage. H Type is applicable for under 56V Forward-Voltage COB LED or SMD LED circuit, especially a perfect fit for luminaires require compliance with a SELV <60V.

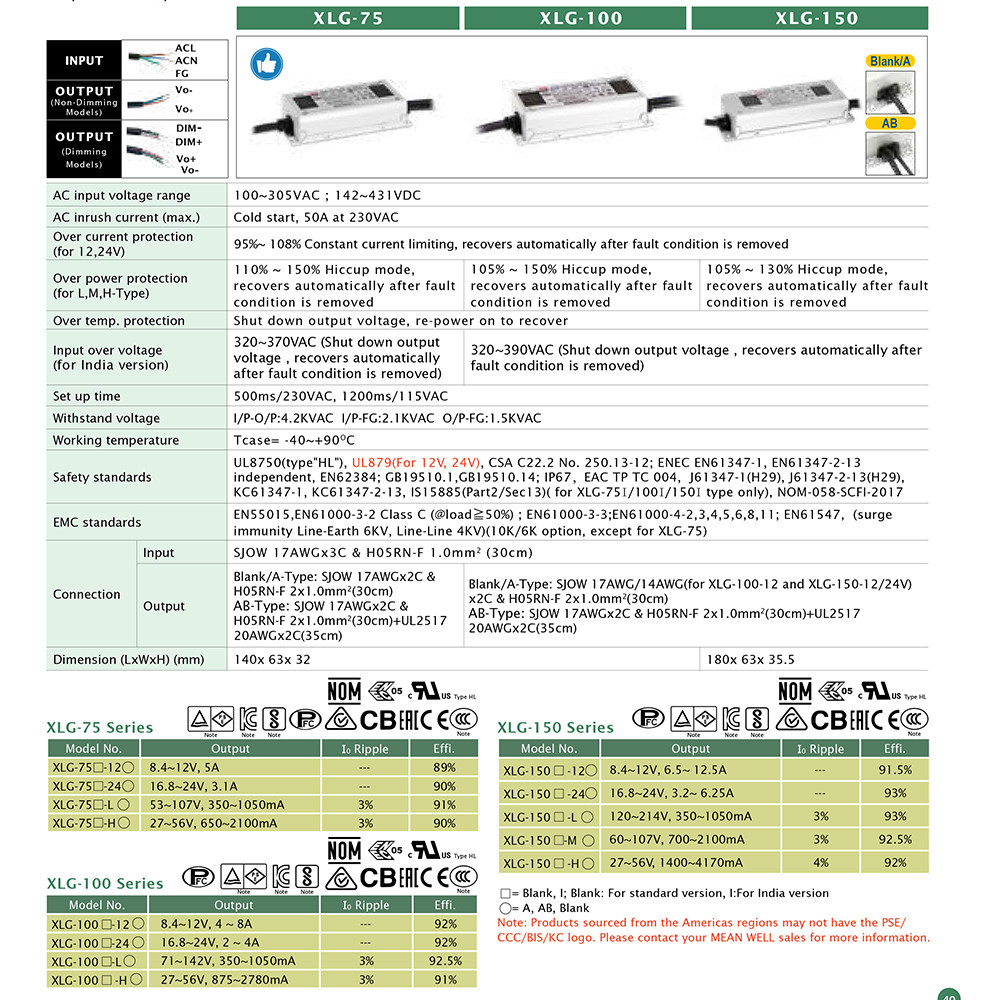

For LED luminaires application, MEAN WELL officially releases the new generation waterproof LED driver series—XLG series. The whole XLG series, which has been highly expected by the market, covers from 25W to 240W. It can be used for LED Bay light/Streetlight/Horticulture lighting and floodlight applications. XLG series applies the constant current and constant power design, which remarkably enhances the convenience of integrating model selection. The design of the XLG Series brings the benefits of reducing the confusion of model selection and stock pressure aspects.
Note: When you choose LED strip light to use with the power supply, we recommend that you choose the waterproof LED strip light.
Main features
Wide input range 100~305V AC( Class I)
Full power output at 70~ 100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP

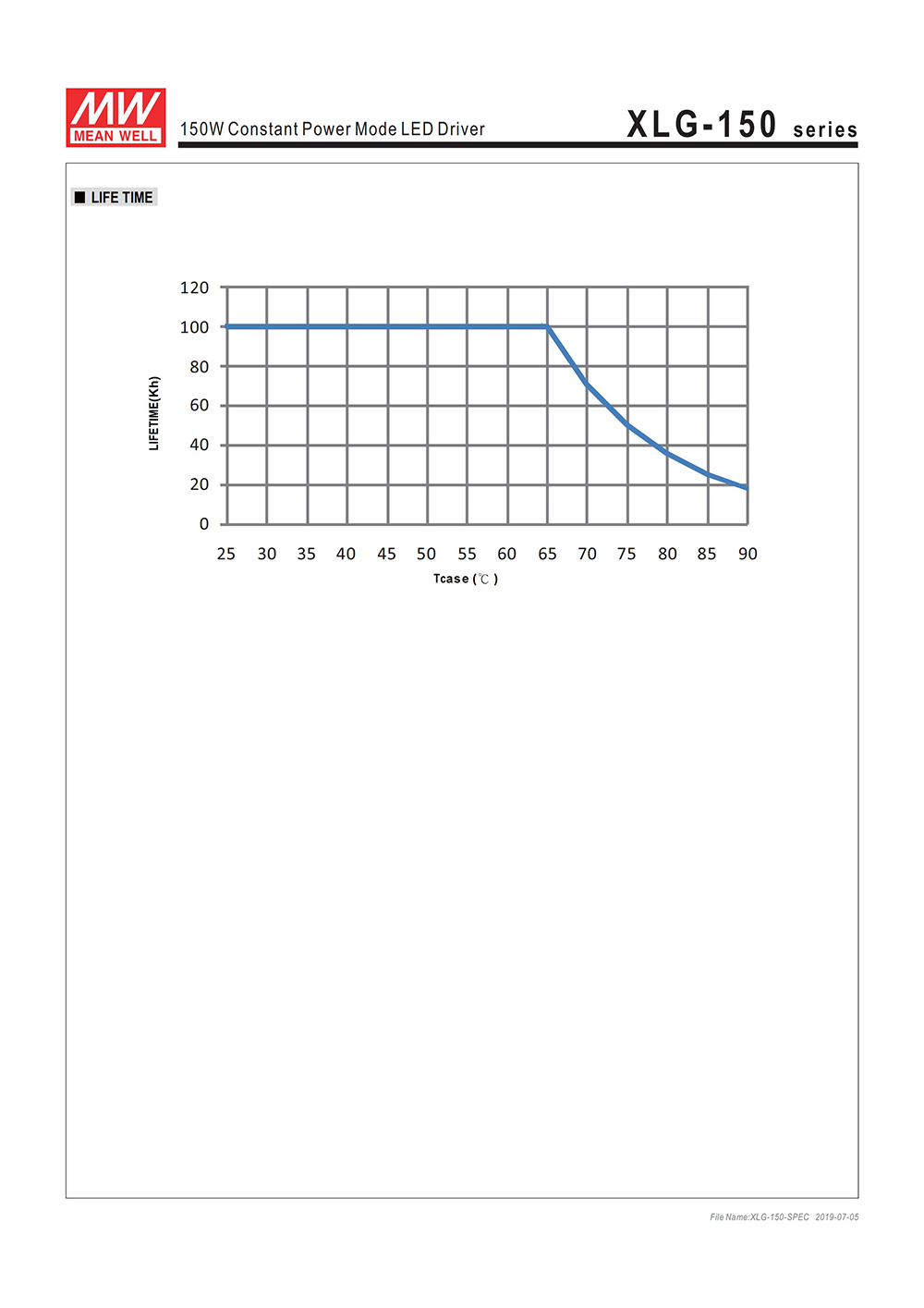

Life time >50,000 hrs. and 5 years warranty

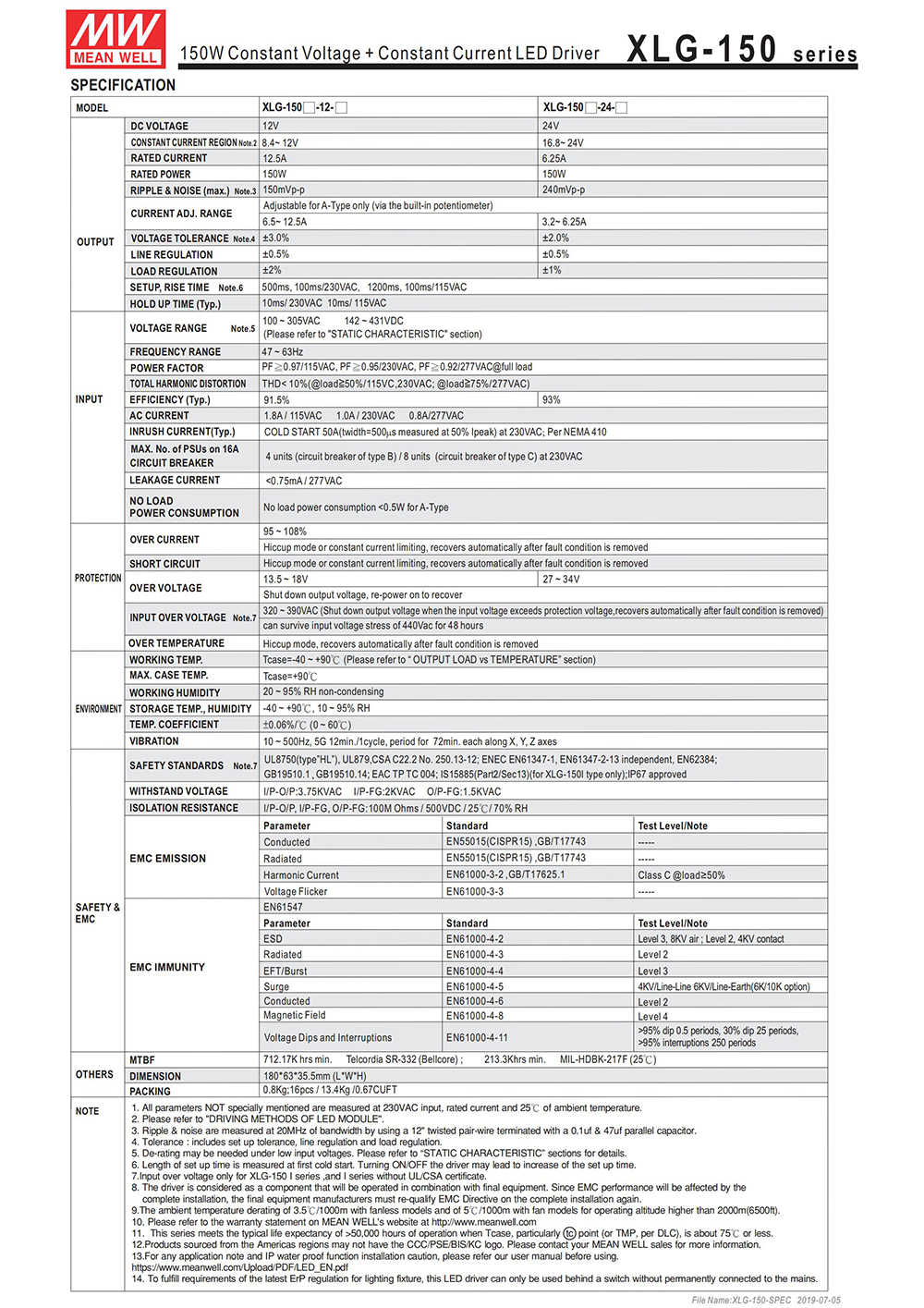

Main parameters
Rated Current: 6.25A
Output Voltage: 16.8V-24V
Current Range: 3.2-6.25A
Rated Power: 150W
Output Voltage Accuracy: ±5%
Efficiency: 93%
Load Regulation: ±2%
Input Voltage: 100～305VAC/142-431VDC
Input Surge Current Cold Start,1.8A/115VAC, 0.95A/230VAC, 0.92A/277VAC
Leakage Current: <0.75mA / 277VAC
Standards and Certifications
Package List:
1 * XLG-150-24-A
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
