Special Price: $50.00 $28.9842% off

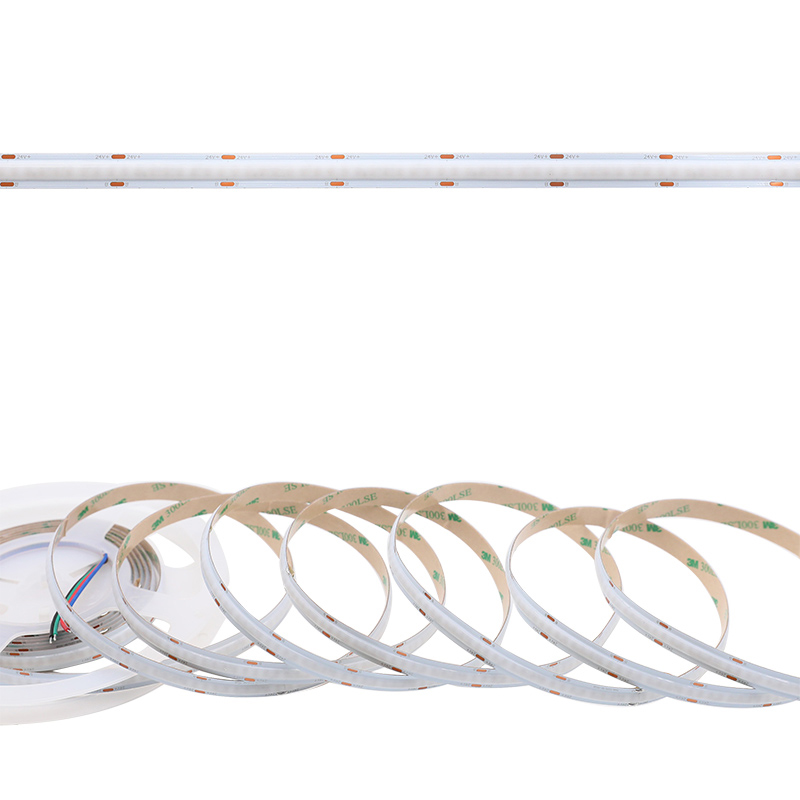

COB RGB led strip light is one of the hottest sales RGB LED strip lights in the market, which also called the FCOB LED strip light, work with high quality chip on board, the LED density of the whole roll LED strip light is 768chips per meter, compared with the ultra slim COB LED strip light, with more brightness and wider, greatly solve the heat dissapation.
LED strip light adopts high quality PCB material, with good flexbility, can be bent at will, because the COB LED chip is so smaller, evenly arranged, the lighting beam angle of single LED is 180degrees, so COB LED strip light with a higher CRI and color efficiency, uniform illumination.

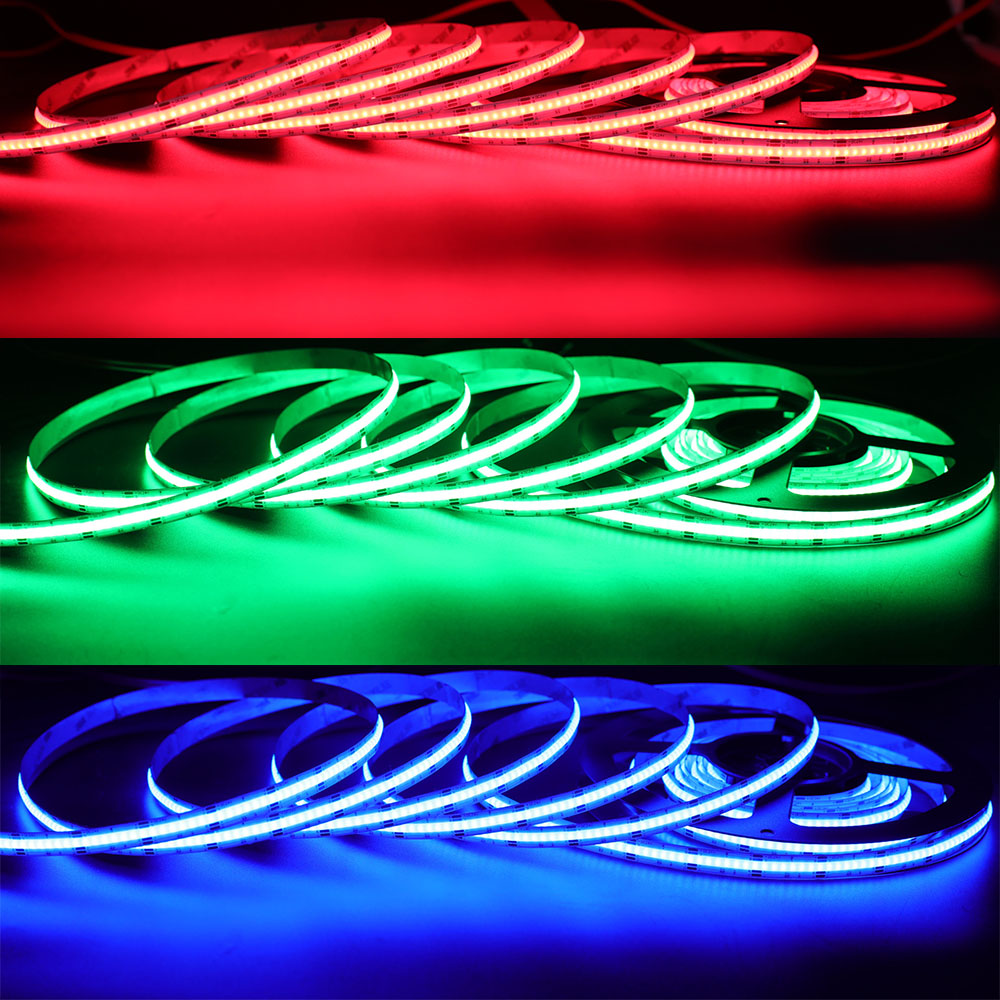

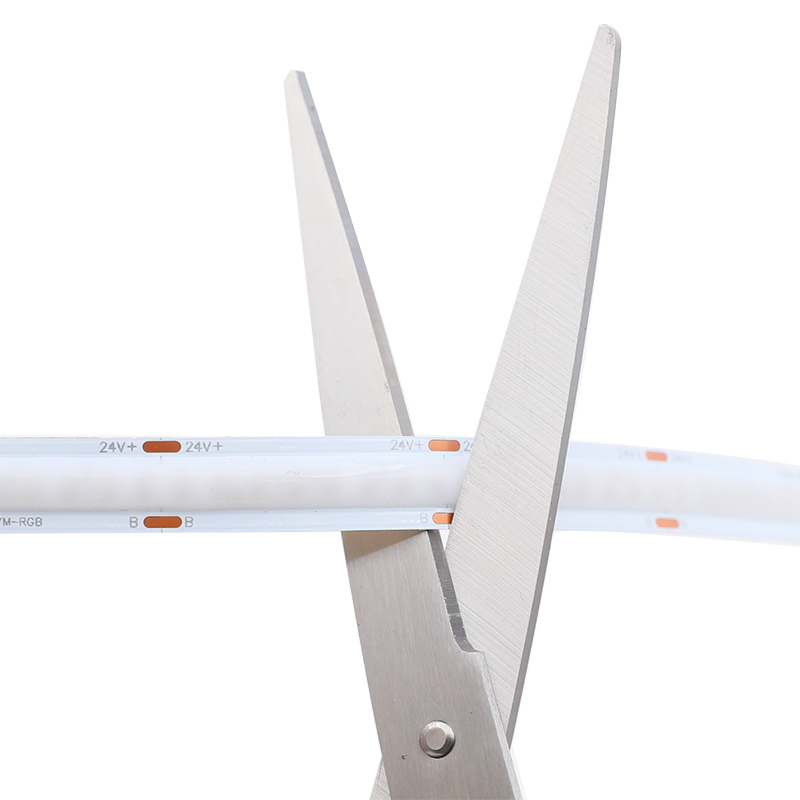

Support DC24V satety voltage input, which can withstand 2000V static electricity, everey 33.33mm cuttable, you can contact us to customize the length for you, for outdoor use, we provide IP67 waterproof available, R/G/B LED chip mix to product 16 million color temperature, work with the color changing RGB LED controller can achieve single color changing, including the (Red, Green, Blue, Yellow, White and other color), connect the R/G/B together to the negetive port, you will get the white color, the color temperature up to 8000K and above.
This COB LED light strip offers a 90-plus CRI lighting efficiency ranging from 83.9Imw (263.7Im/ft) to 97.9Imw (313.5lIm/it), back with the 3M adhensive, can be install in the LED aluminum channel or LED neon tube to achieve a perfect lighting effect. lt is ideal for displays, exhibitions,under-cabinet, cove lighting applications and more.
Standards and Certifications
Product Specification
| LED Strip Type: | RGB COB LED Strip Light |
| LED Chip: | Epistar Chip |
| Input Voltage: | 24V DC |

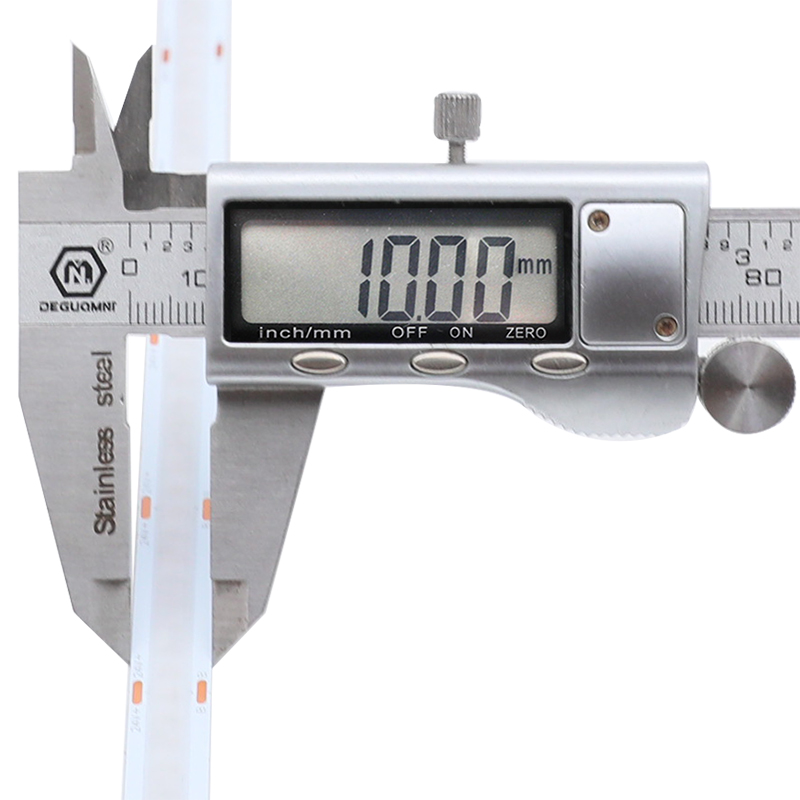

| PCB Width: | 10mm/0.39in |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| Power: | 3A/roll, 14.4W/M, 72watt/roll |
| Length: | 5m/16.4Ft |
| LED Quantity: | 768 Chips/m(R/256,G/256,B/256) |
| White Color: | 8000-15000K |

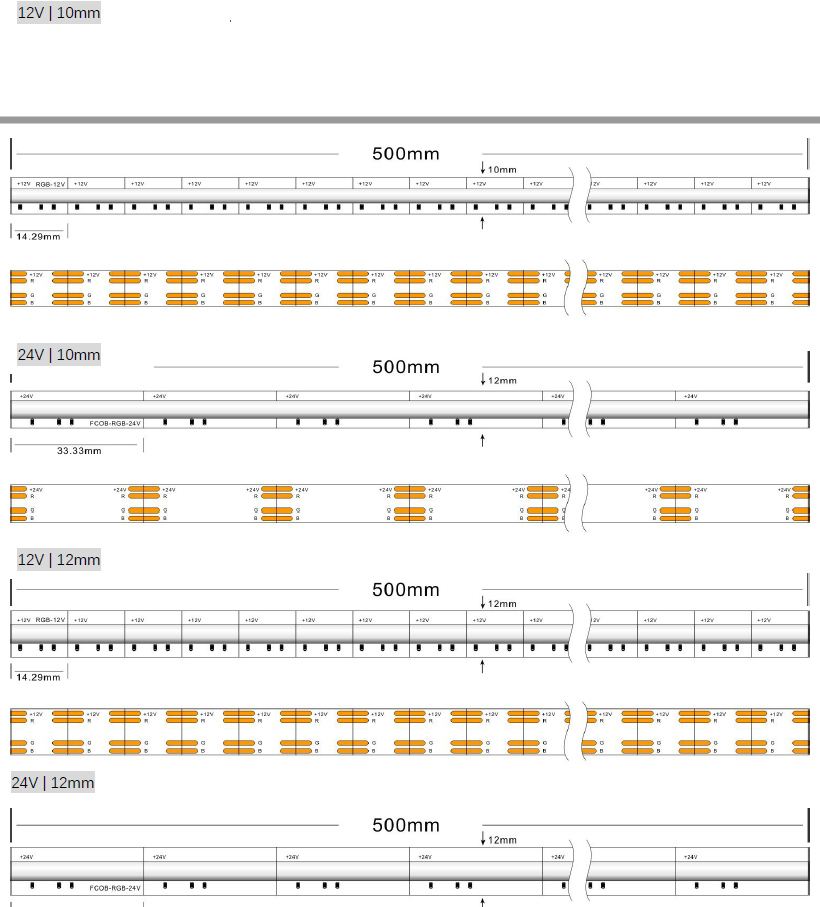

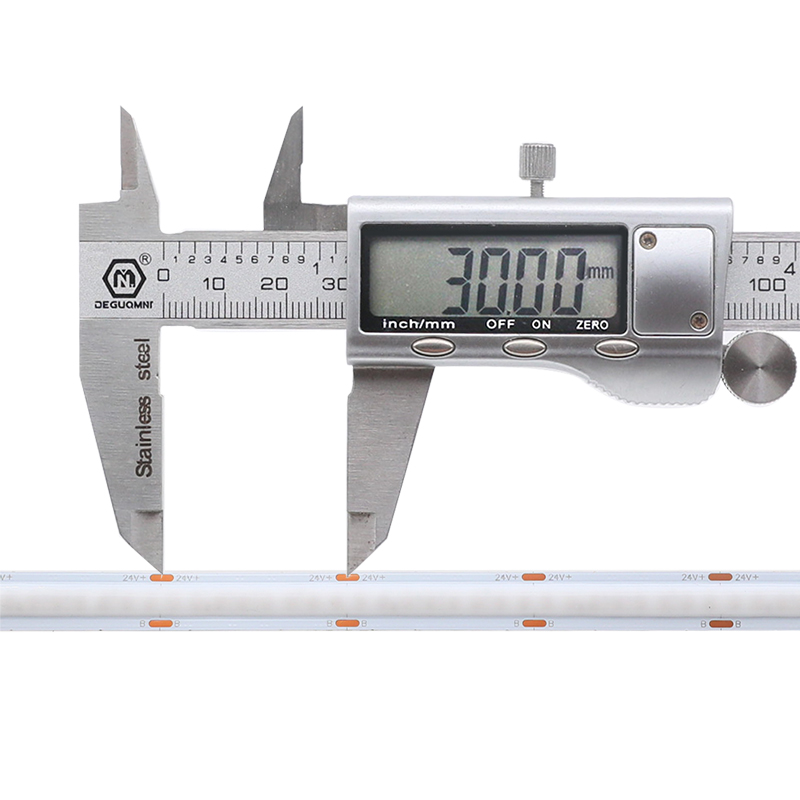

| Cut Length: | 33.33mm/1.31in |
| PCB Color: | White |
| Brightess: | 1000-1050lm/m, 5,250lm/roll, 87.5lm/watt |
| Beam Angle: | 180° |
| Waterproof Rating: |
|
How to choose COB LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|
LED Strip |
Power | Voltage | Kit |
| 5m/16.4Ft COB Strip | 72W / Roll | DC12V |
Controller: WB5 Power supply: 12V 100W MW power supply + AC Plug |
| DC24V |
Controller: WB5 Power supply: 24V 100W MW power supply + AC Plug |
if you have any requirements for other types of the LED Controller, you can visit our Color Change RGB Controller Series.

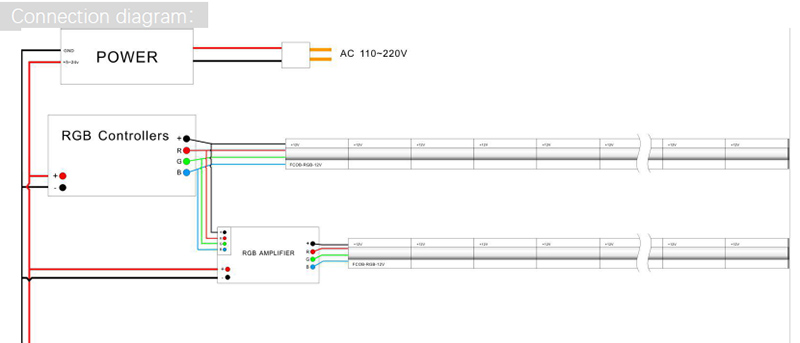

Wiring Diagram: How to Wire RGB Color Changing LED Strip Lights?
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
