Special Price: $7.98

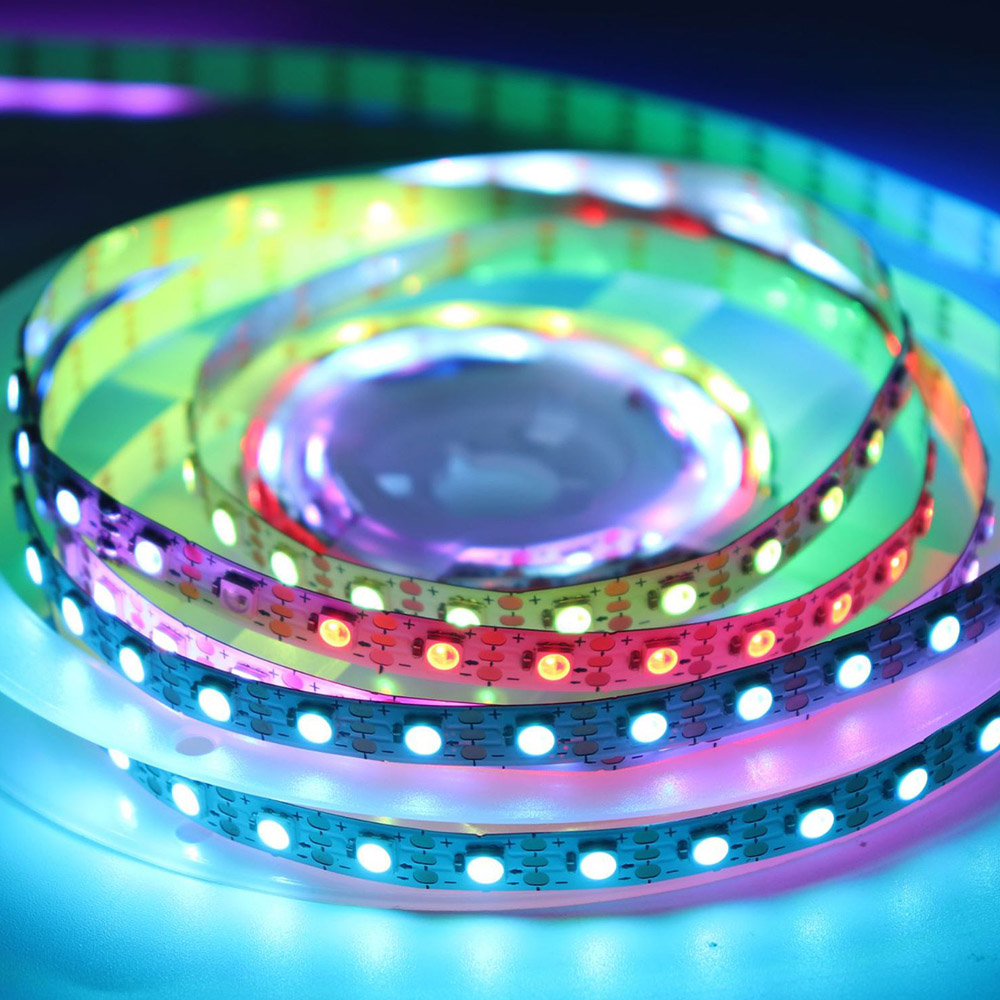

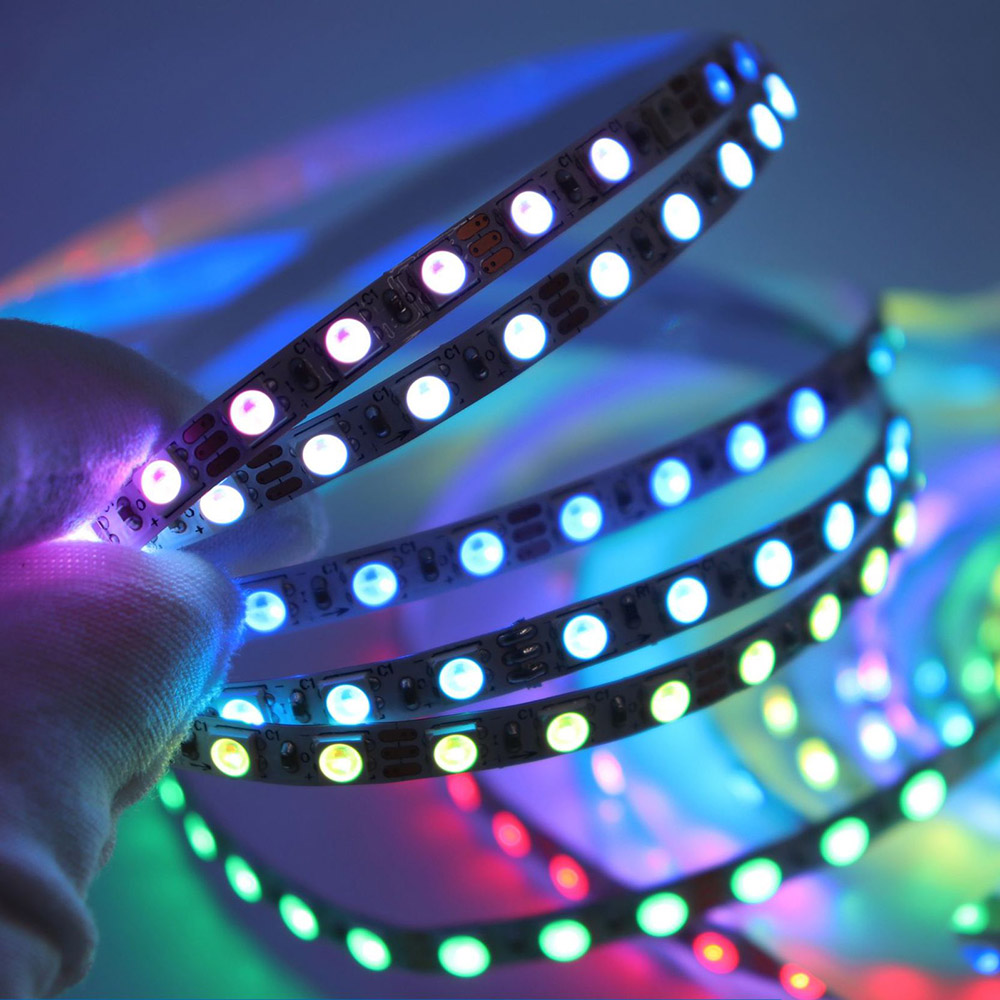

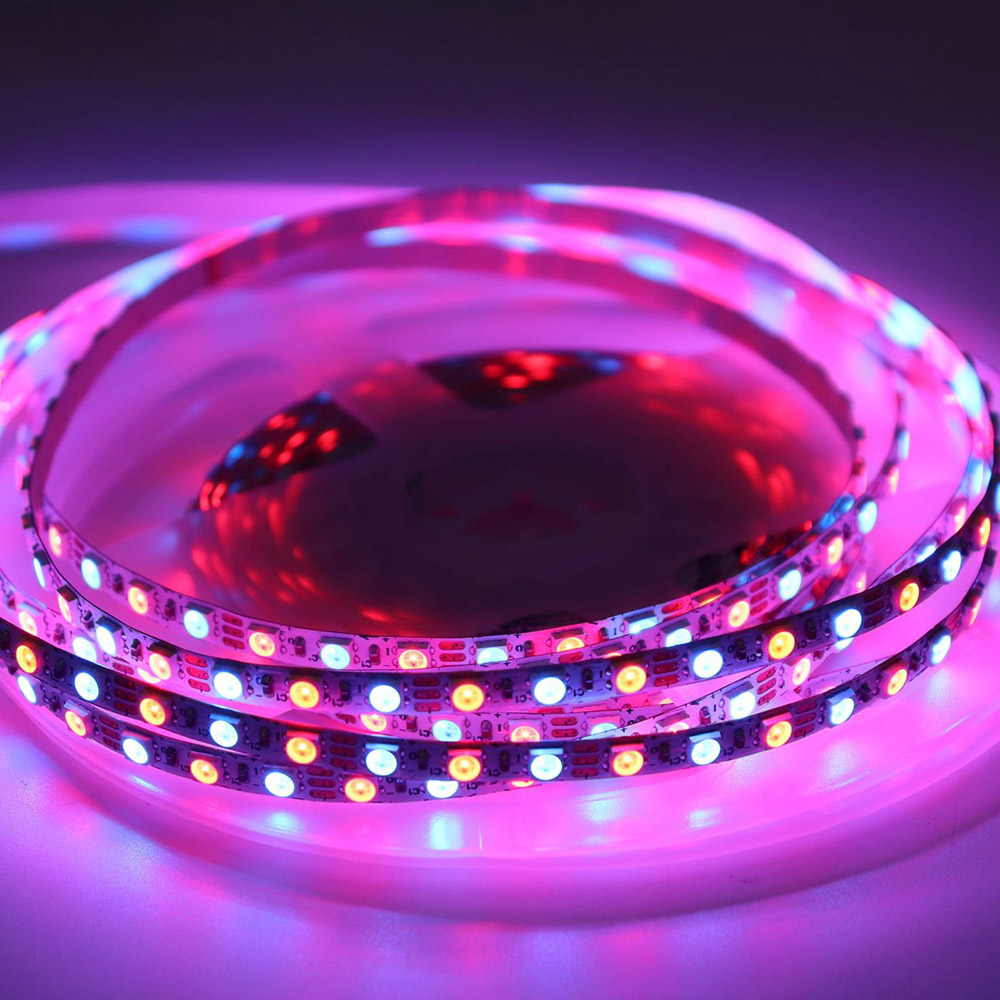

This SK68xx mini RGB led strip adapts 3535 SMD LED chips, with built-in SK6812 or SK6813 addressable LED intelligent IC, making various dynamic lighting effects via the light controller. Low voltage DC5V or DC12V input, safe and less power consumption, friendly to your home lighting and decorative lighting.
High density and high light brightness, every 1 LED or 3 LEDs can be cut, easy to get the length you want for your projects. 4mm or 7mm PCB width, popular applies for under cabinet lighting, backing lighting, narrow place LED lighting, and other indoor lighting.
| LED Strip Light Type | IC Type | Cut Unit | IC Quantity | FPCB Width | Power | Power Supply Capacity (16.4ft) |
| 5V 60LEDs/m | SK6812 | 1 LED, 16.6mm cut length | 60 pixels per meter, 300 pixels per roll | 4mm | 9W/m | ≥ 54W |
| 12V 60LEDs/m | SK6813 | 1 LED, 16.6mm cut length | 60 pixels per meter, 300 pixels per roll | 4mm | 9W/m | ≥ 54W |
| 5V 96LEDs/m | SK6812 | 1 LED, 10.4mm cut length | 96 pixels per meter, 480 pixels per roll | 7mm | 14W/m | ≥ 90W |
| 12V 96LEDs/m | SK6813 | 1 LED, 10.4mm cut length | 96 pixels per meter, 480 pixels per roll | 7mm | 14W/m | ≥ 90W |
| 5V 120LEDs/m | SK6812 | 3 LEDs, 25mm cut length | 40 pixels per meter, 200 pixels per roll | 5mm | 18W/m | ≥ 108W |
| 12V 120LEDs/m | SK6813 | 3 LEDs, 25mm cut length | 40 pixels per meter, 200 pixels per roll | 7mm | 18W/m | ≥ 108W |
| 5V 144LEDs/m | SK6812 | 1 LED, 6.9mm cut length | 144 pixels per meter, 720 pixels per roll | 7mm | 20W/m | ≥ 120W |
| 12V 144LEDs/m (Sold Out) | SK6812 | 1 LED, 6.9mm cut length | 144 pixels per meter, 720 pixels per roll | 7mm | 20W/m | ≥ 120W |
SK6812 IC Chip Specifications Download
Standards and Certifications
| LED Strip Type: | SK6812 SK6813 RGB Addressable LED Strip Light |
| LED Chip: | SMD3535 |
| Input Voltage: | DC5V/12V |
| Power: | 9~20W/m |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | Addressable RGB |
| PCB Width: | 4mm /7mm |
| LED Quantity: | 60/96/120/144 LEDs/m |
| Waterproof Rating: | Non-waterproof IP20 |
| Strip Length: | 5m/16.4ft |
| PCB Color: | White |
| Lifespan: | 30,000+hours |
| Beam Angle: | 120° |
| Bits/color: | 8-bits/color;total 24bit for RGB color |
How to Wire Addressable LED Strip Lights?
3-Pin SK6812 SK6813 RGB Addressable LED Light Strip Wiring Diagram:
Applications
These Addressable RGB LED Strip Lights are applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Villa model lighting
