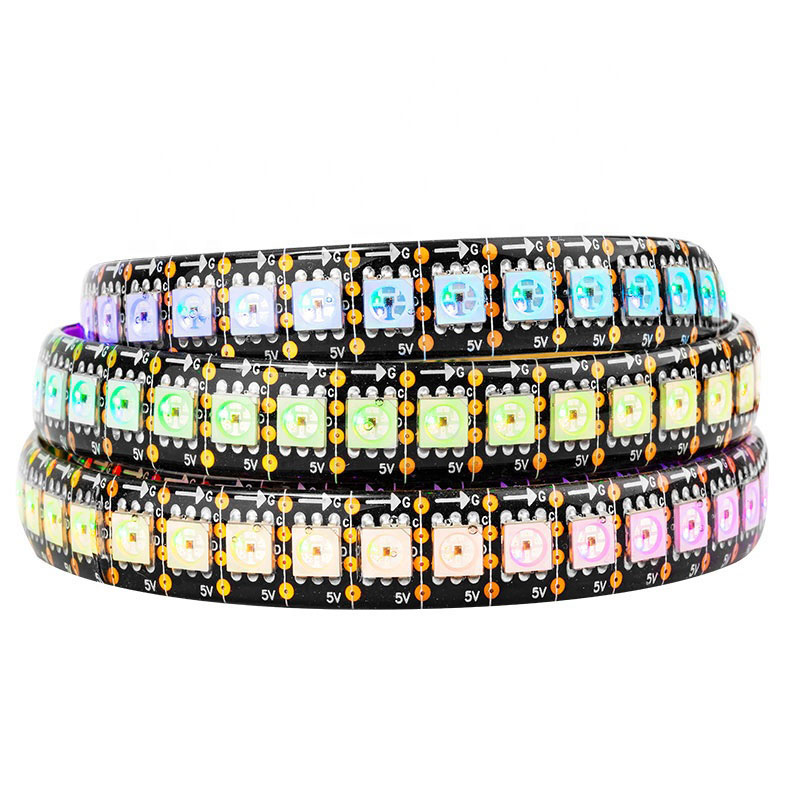

SK9822(Similar to APA102) RGB 144LEDS/M DC5V 12MM-Wide Digital Intelligent Addressable LED Strip Lights - 1m/3.28ft per roll
Related Products
SK9822(Similar to APA102)...
$34.98 $19.9843% off
SPI LED Bluetooth...
$14.98
Mean Well LRS-75-5 DC5V...
$28.00
Black Extruded Aluminum...
$10.00 $7.9920% off
DC5-24V SP108E WiFi LED...
$21.99-
Special Price: $34.98 $19.9843% off
Features

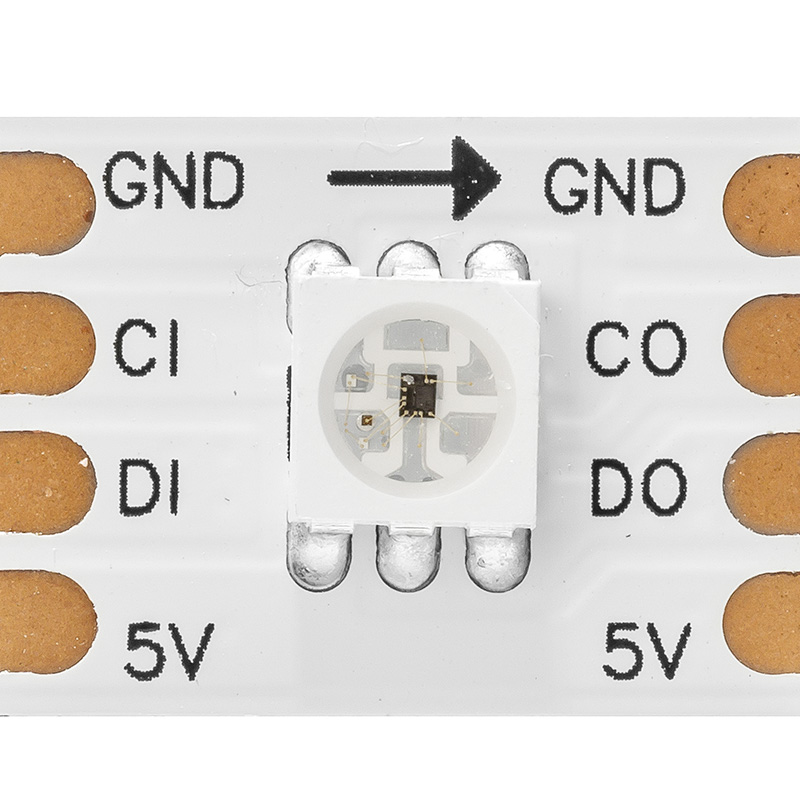

1. There are 144 Addressable RGB LEDs per meter, and 12mm wide for 144 LEDs/meter, DC5V input, and you can control each LED individually! This is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
2. The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
3. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
4. The SK9822 is almost a direct replacement to the APA102 and is superior in some respects, most importantly its built-in constant-current control, If you have ever tried to power a long string of LED strips and only connect one end to the power supply, you may have noticed that the far end of the LED strip has a low voltage on its power rail due to the resistance in the long power connection. For LED strips based on APA102C and WS2812B, use dimmer voltage and red color. With SK9822, as long as the voltage remains above 3.5v, this voltage drop is unlikely to have a noticeable effect.
5. The protocol for the SK9822 is very similar to the protocol for the APA102C, but it updates the colors displayed at different times. If you replace the APA102C LED with the SK9822 LED in a low-framerate application, you may need to update the code that our APA102 Arduino library USES with the SK9822, so you can use it directly or write your own code as a reference. The color generated by SK9822 is different from the color generated by APA102C, so we do not recommend mixing APA102C and SK9822 in a single project.
SK9822 Chips Specifications Download
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (70% more energy saving than the neon), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC5V
Power: 43.2 watt/meter, 43.2 watt/roll
LED Chip Model: SMD 5050
LED resource: SK9822 LED
IC Type: SK9822IC (1 IC drives 1 led chip)
Q'ty of LED: 144 leds/Meter Available
Q'ty of IC: 144 pixel /Meter
Cuttable: every LED is cuttable

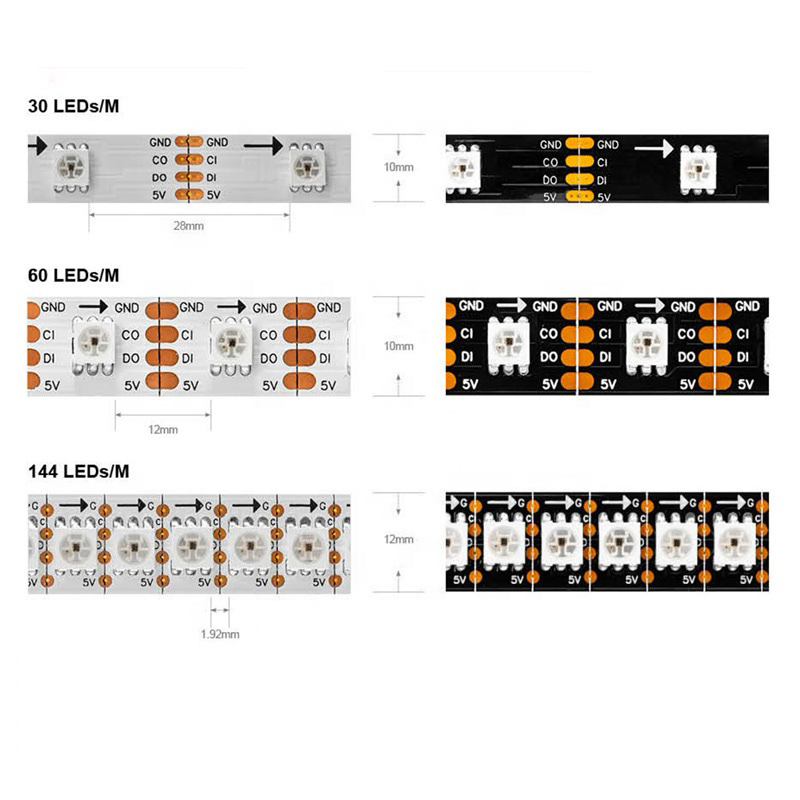

Dimensions: L500cm(196.85 in ) x W1.2cm(0.47 in ) x H0.25cm(0.1 in )
Color Temp(K): RGB full color
FPC color: WHITE/BLANK PCB

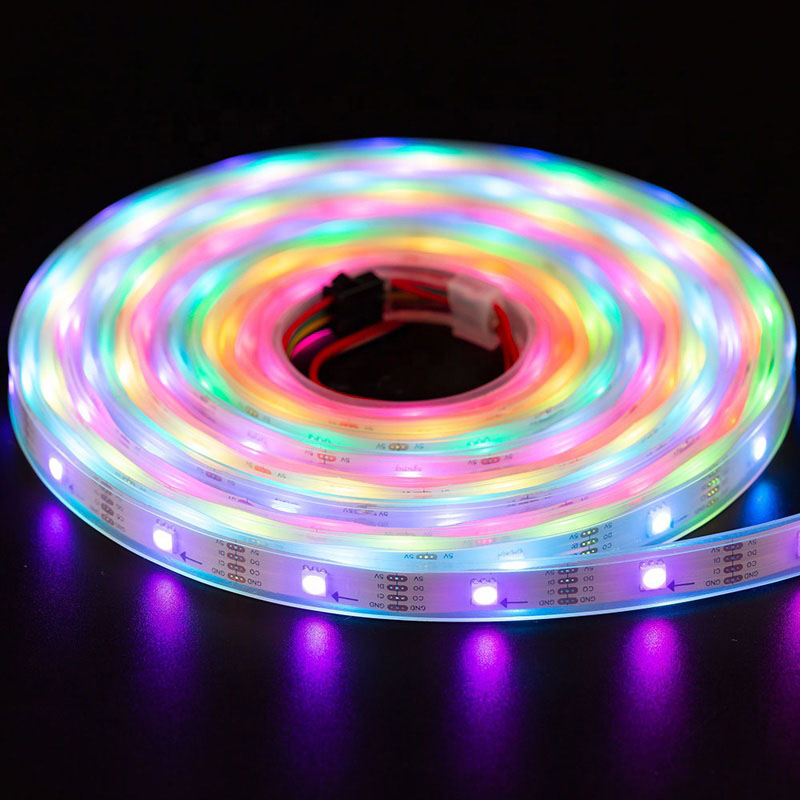

Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)
Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
LED wavelengths: 630nm/530nm/475nm
Average Life (hrs): 50000Hours+
SPECIFICATION
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with the plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with the plastic fastener, the top level of waterproof, For Outdoor);
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
