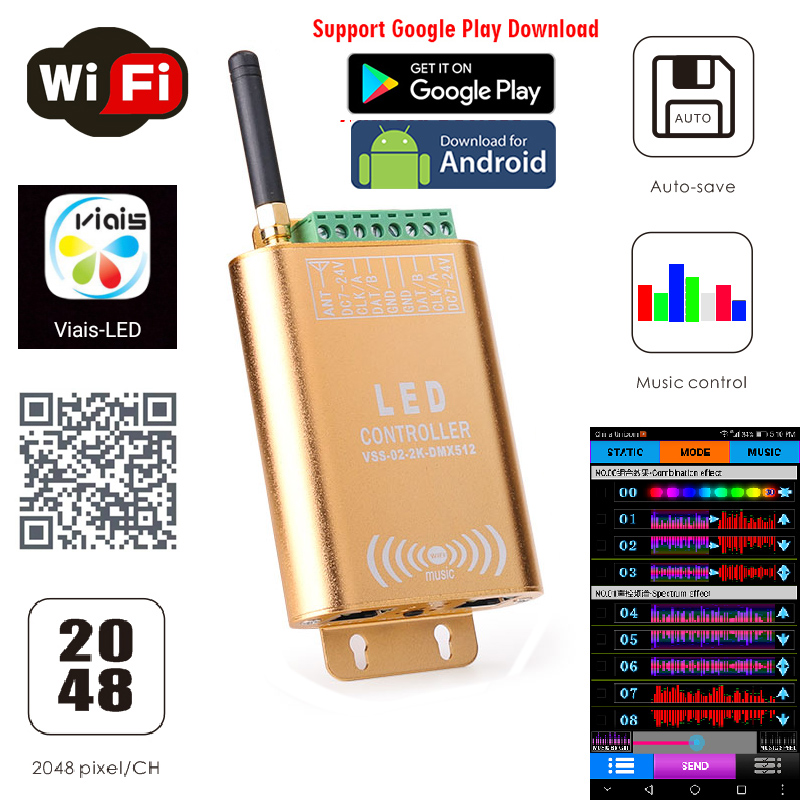

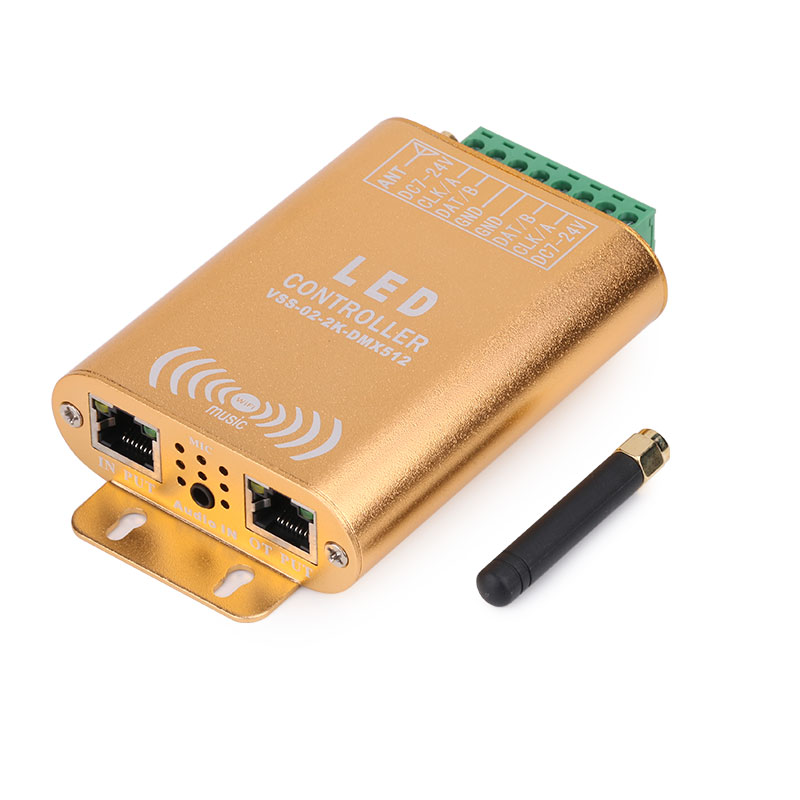

DC7-24V Double Channels 2048 pixels LED WIFI SPI Music Spectrum Android Controller For WS2812B, SK6812 RGB/RGBW Addressable LED Strip Lights APP Support Input Content
Features

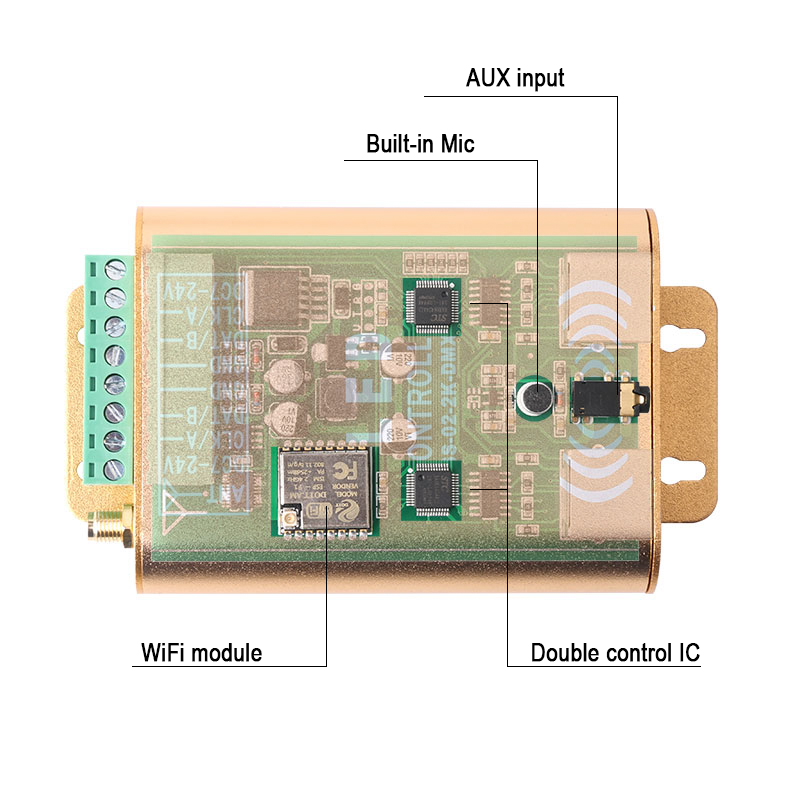

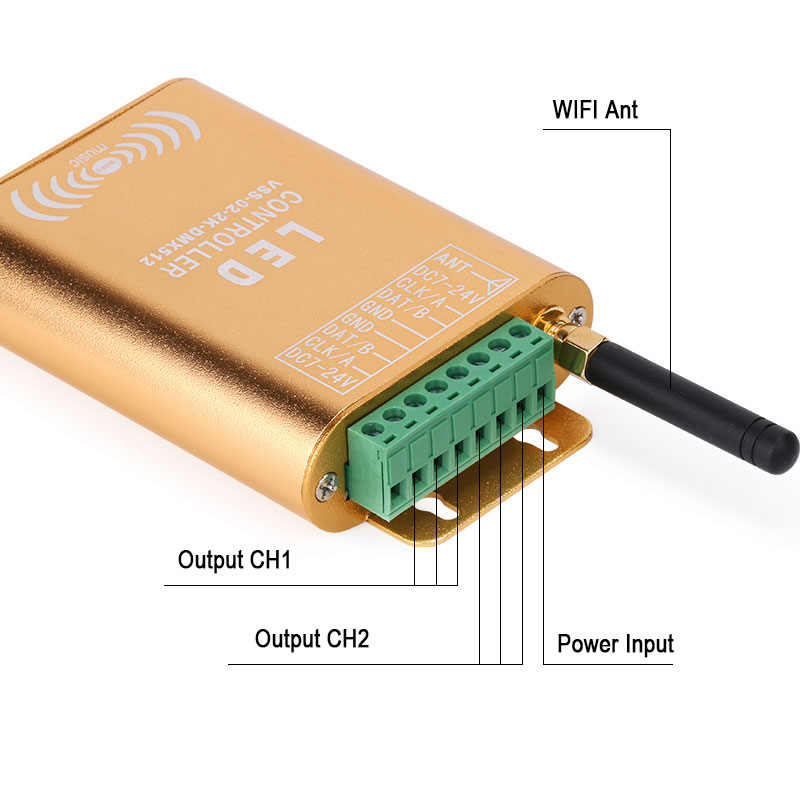

1.control IC 2048 pixel*2CH output(signal repeat)

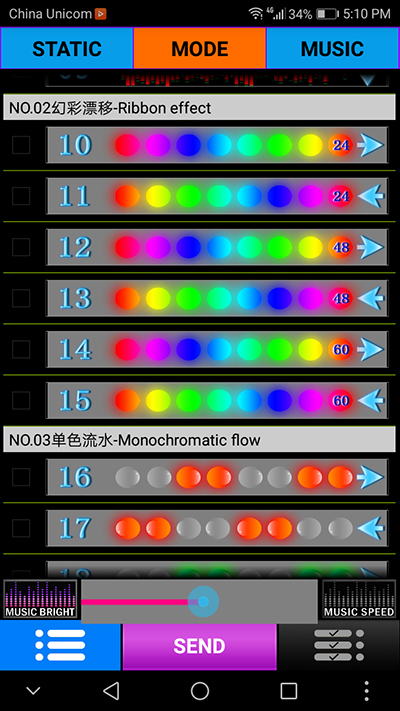

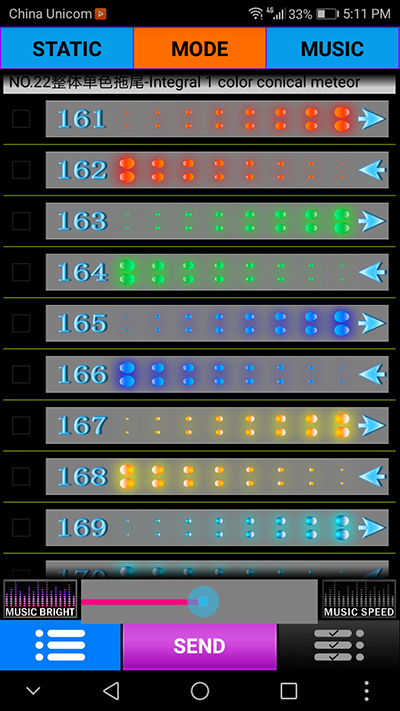

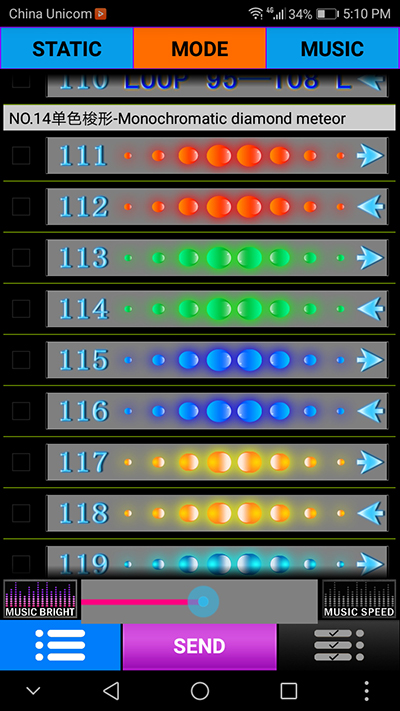

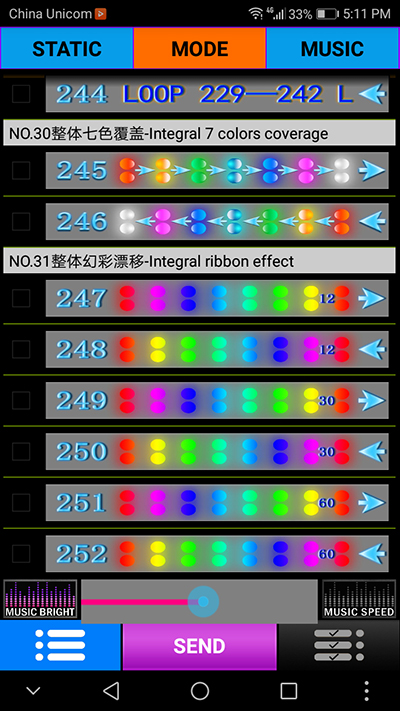

2.252 modes, can Reorder Mode combined

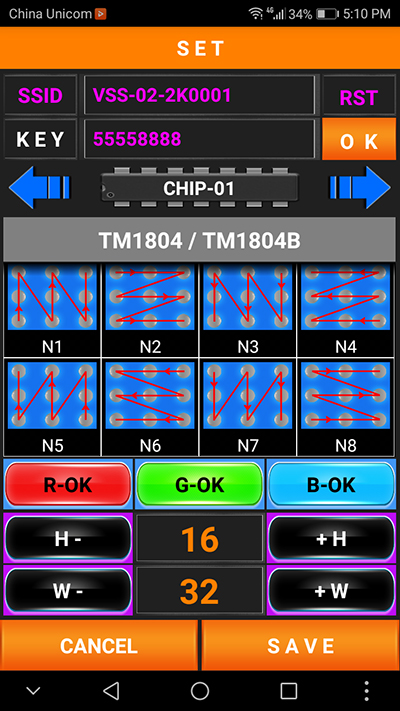

3.RGB order can change.
4.32 speed adjustable
5.auto memory function

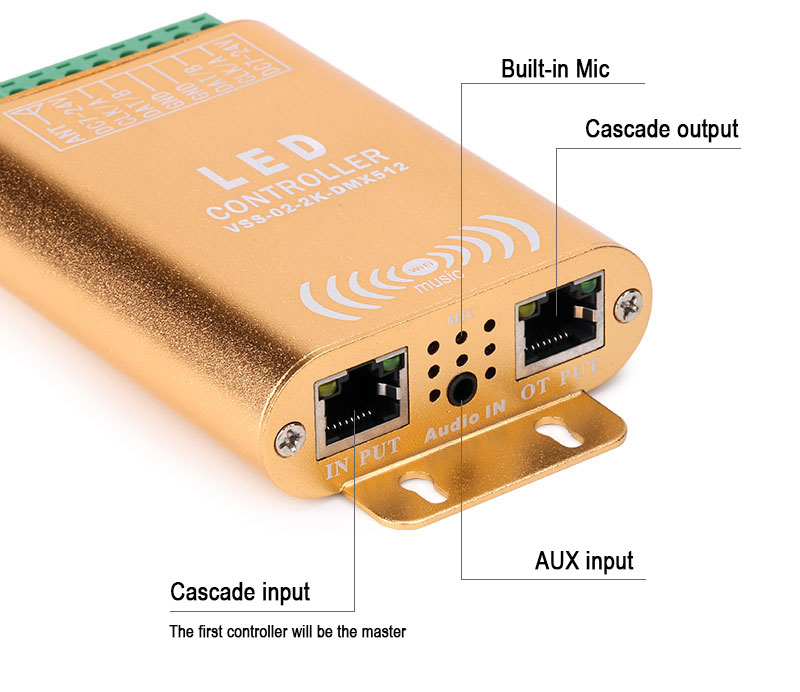

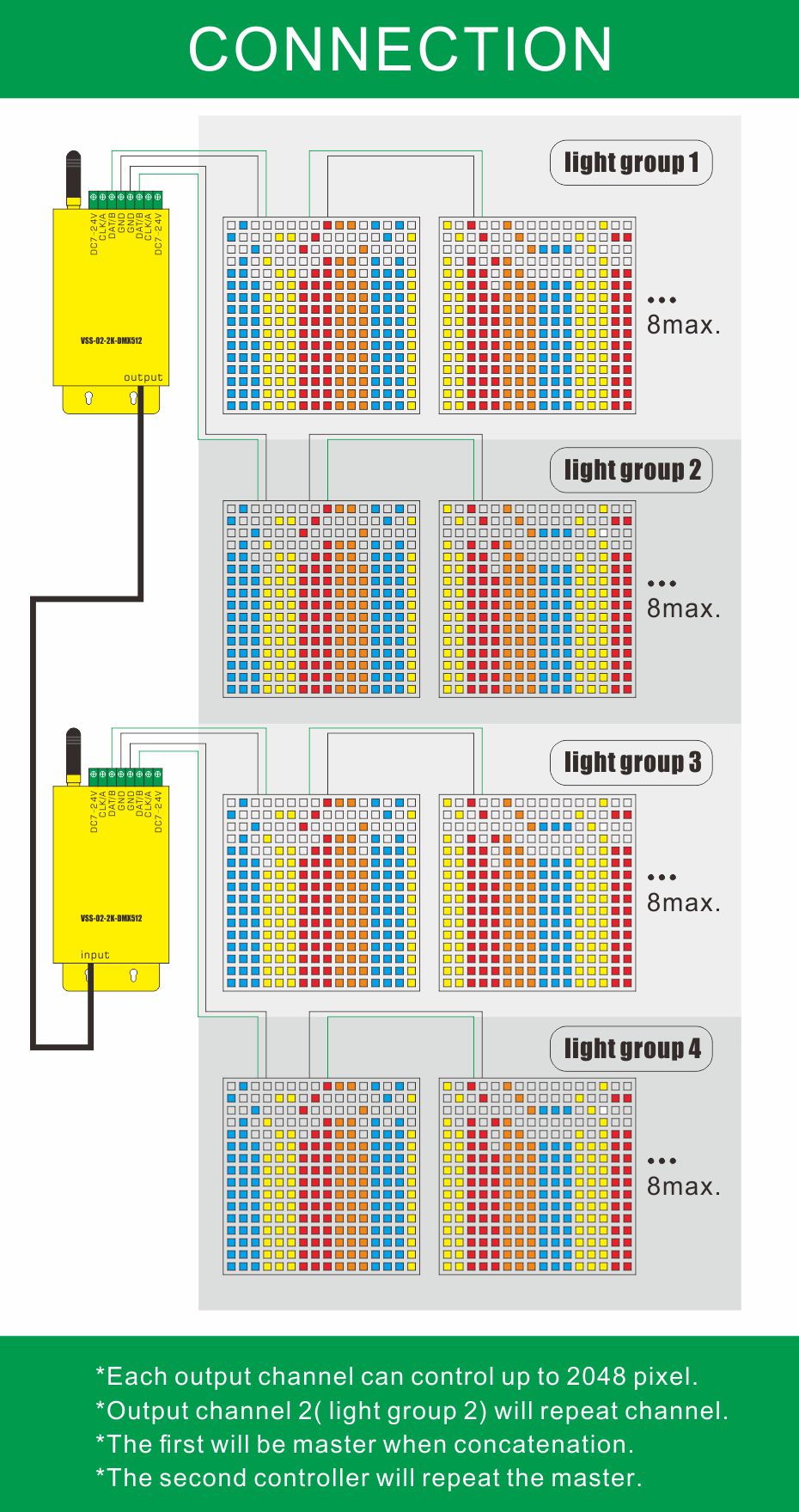

6.cascade connection, the first will auto be master when cascade connecting
7.music control function

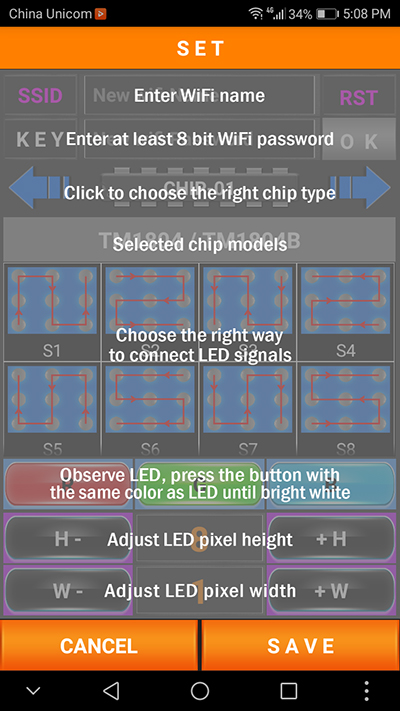

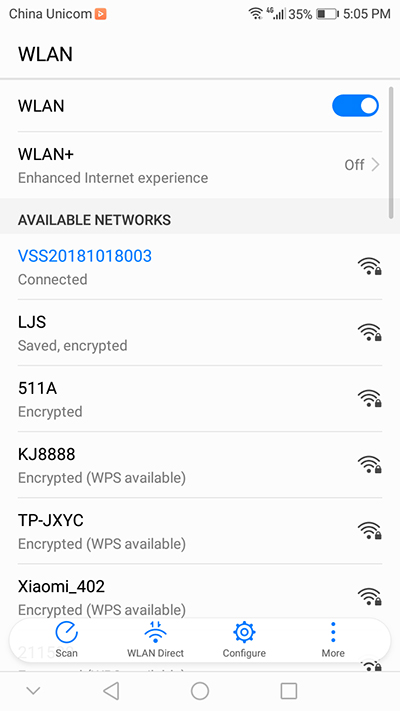

8.wifi connection APP control <Android>
Specifications
Input voltage: DC7-24V
control pixel quantity: 2048*2
built-in mode: 252

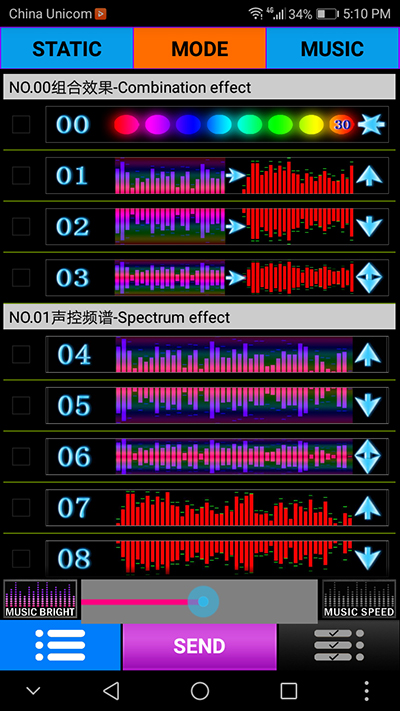

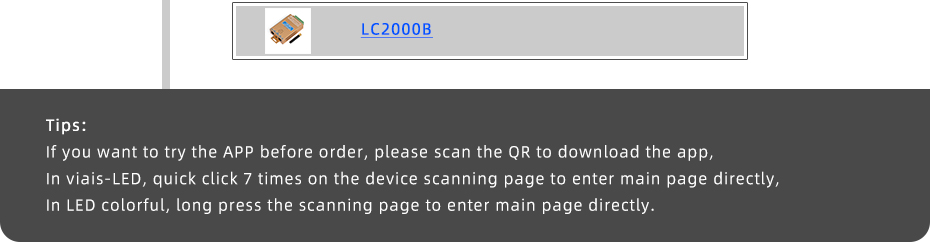

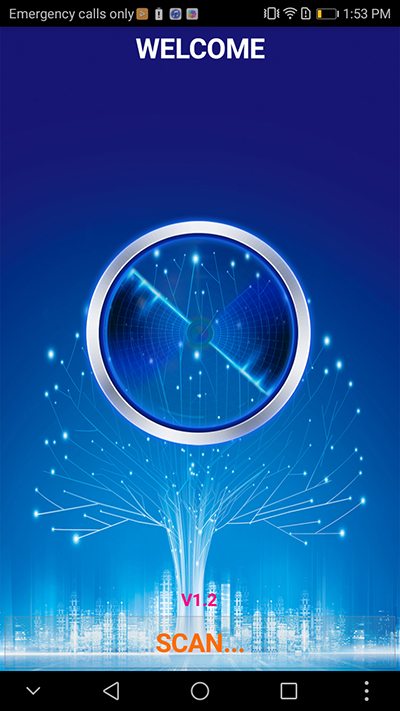

APP: Viais-LED (Android Vision only)
Working temperature: -30℃-85℃;
Working Voltage: DC7V~24V;
Working Power:2W;
Radar distance: 4-5 Meters;
IR distance: 2-3 Meters;
Touch distance: 2 CM;

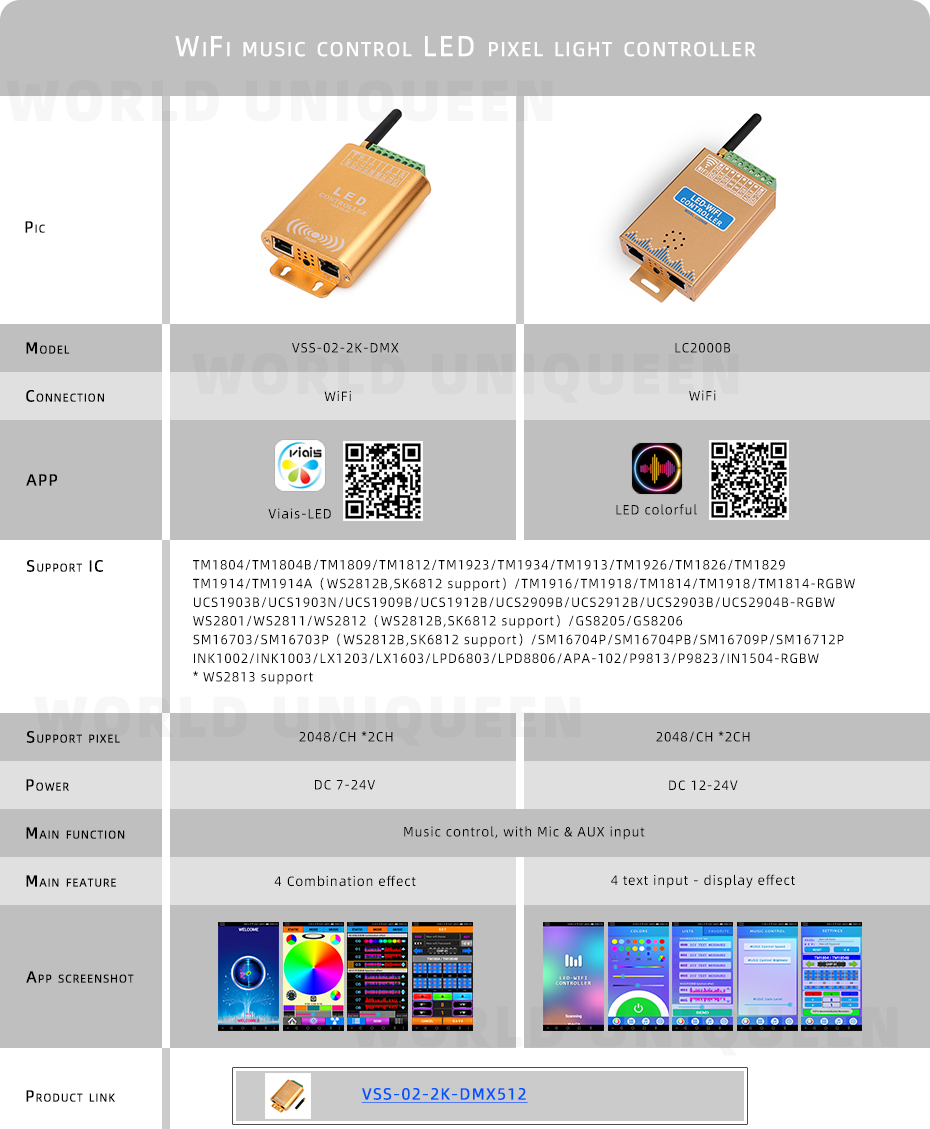

If the IC in your light is not in the support listing, Do not warry, please check the following chart, these IC can be controlled by the same controller, thanks.
TM1804/TM1804B
TM1809/TM1812
TM1923/TM1934
TM1913/TM1926
TM1826/TM1829
TM1914/TM1914A（WS2812B,SK6812 support）
TM1916/TM1918
TM1814/TM1918
TM1814-RGBW
UCS1903B/UCS1903N
UCS1909B/UCS1912B
UCS2909B/UCS2912B
UCS2903B
UCS2904B-RGBW
WS2801
WS2811/WS2812（WS2812B,SK6812 support）
GS8205/GS8206
SM16703/SM16703P（WS2812B,SK6812 support）
SM16704P/SM16704PB
SM16709P/SM16712P
INK1002/INK1003
LX1203/LX1603
LPD6803
LPD8806
APA-102
P9813/P9823
IN1504-RGBW
* WS2813 support
1. Interior Decoration: clubs,bars,corridors,rooms,hotels,museums,etc.
2. Exterior Decoration: plazas, commercial buildings, senic spots, evening locations,etc.
Package include
1 * LED SPI Music Controller

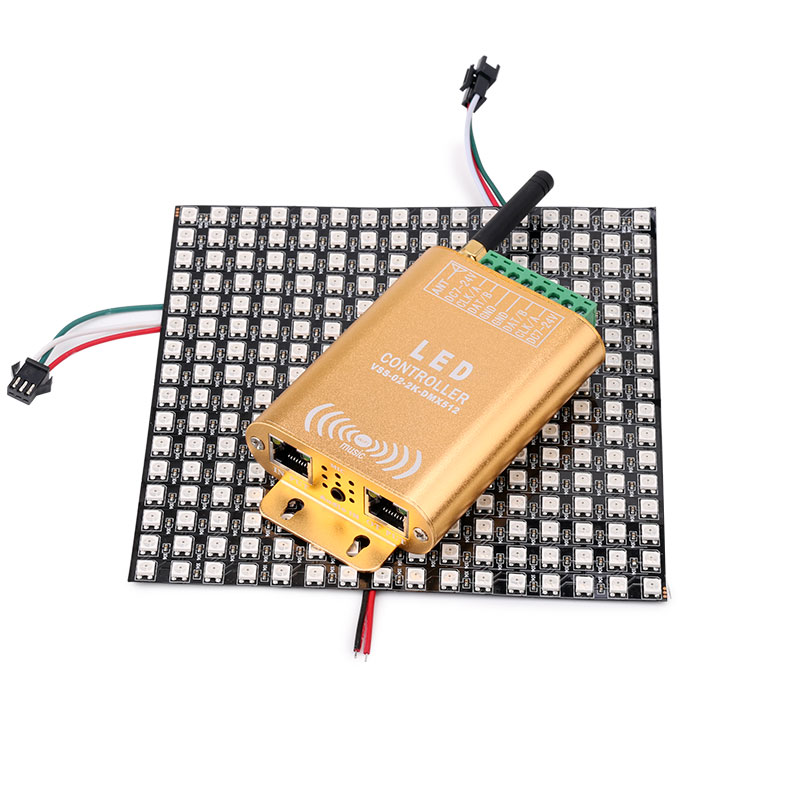

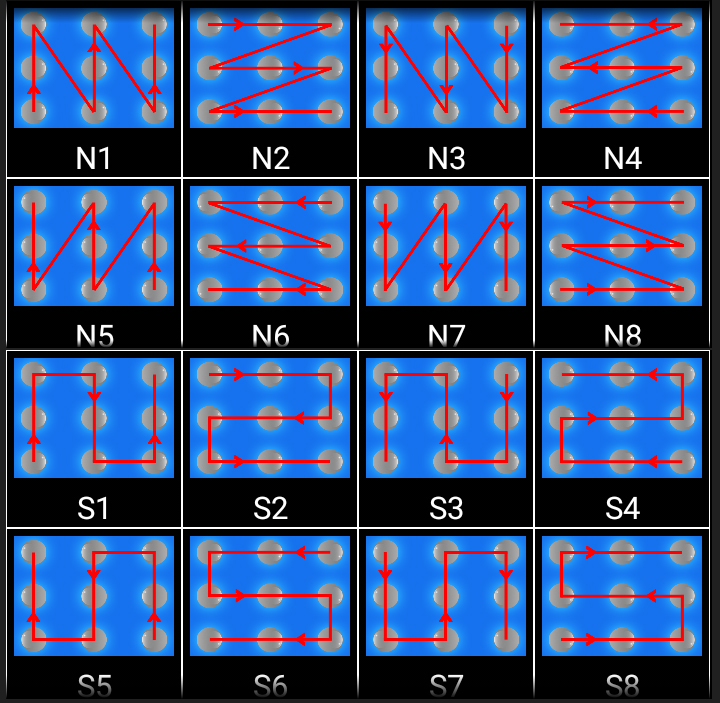

If use this controller to control LED pixel screen, can controller 16*16*8pcs
Tips:

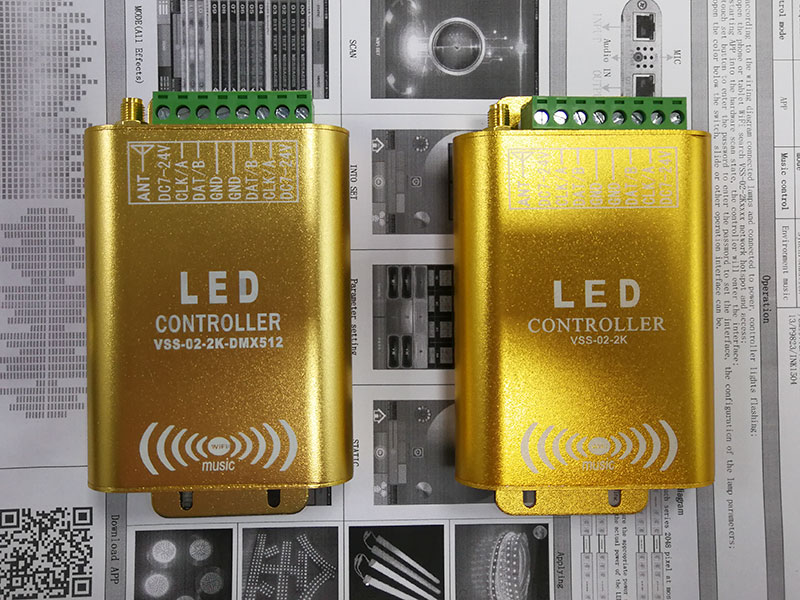

there is new marker on the top surface, theire function are same, two different version may be shipped as randomly in this days, please understand, thanks.

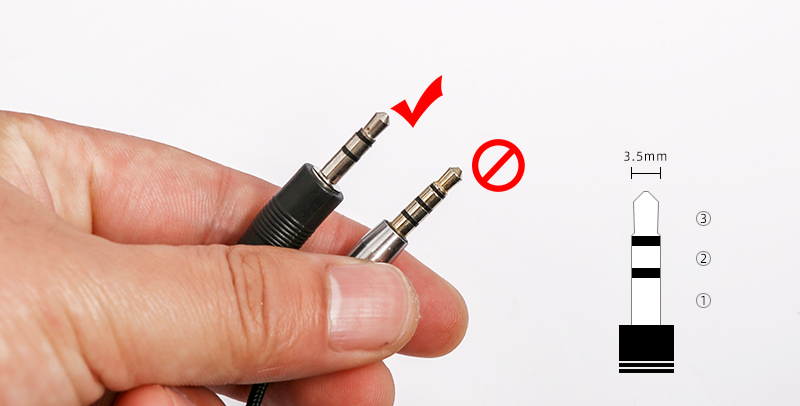

When you use AUX input, please choose 3 pin ones, thanks.

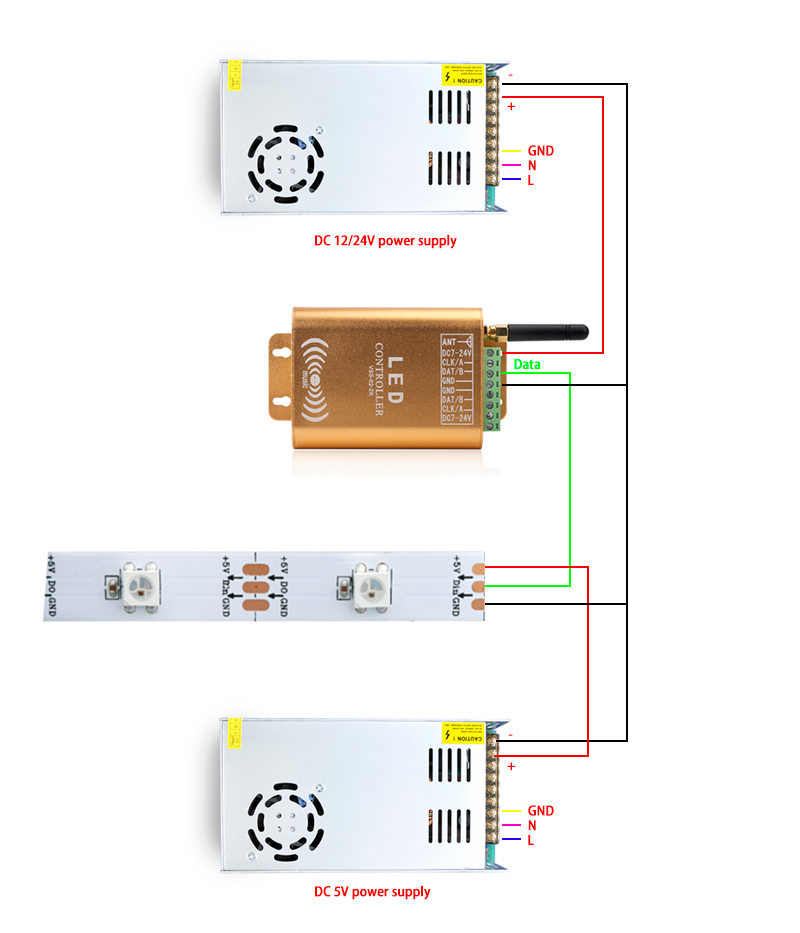

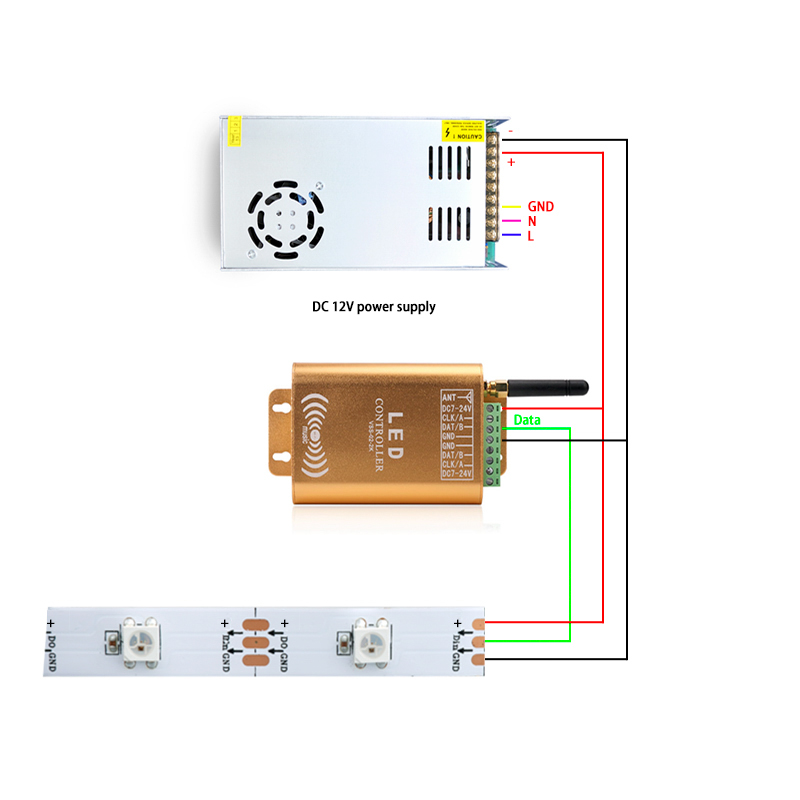

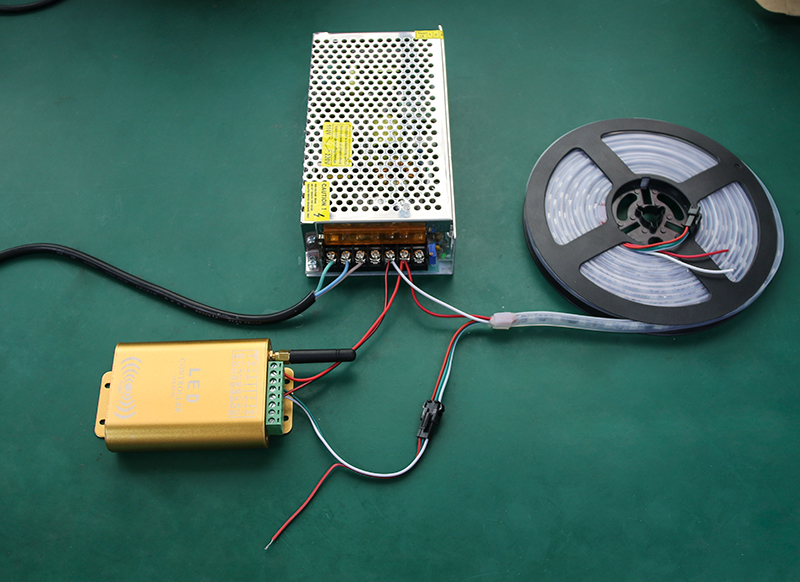

DC12V light connection:

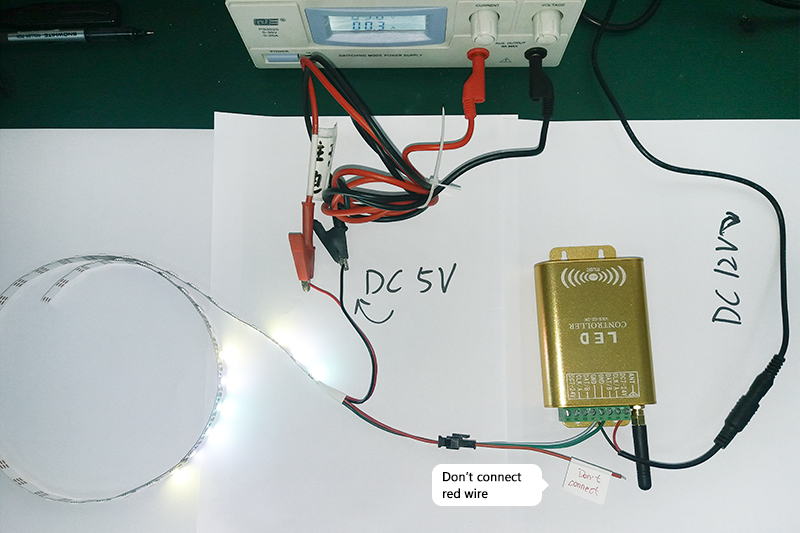

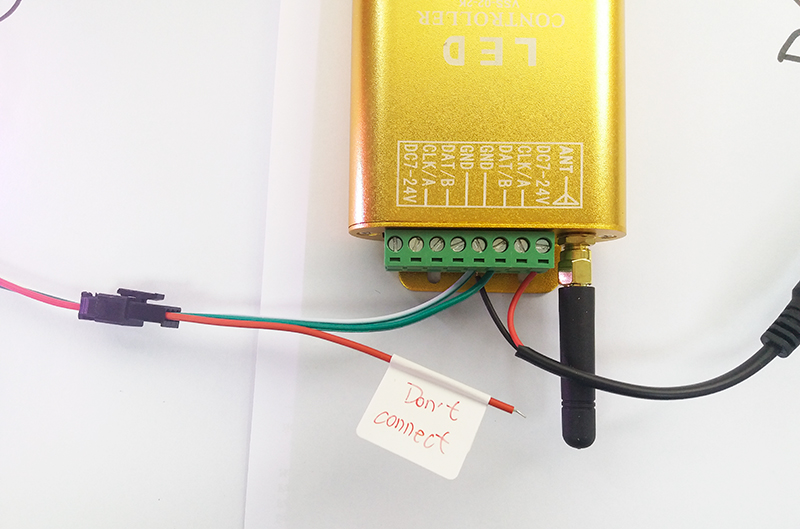

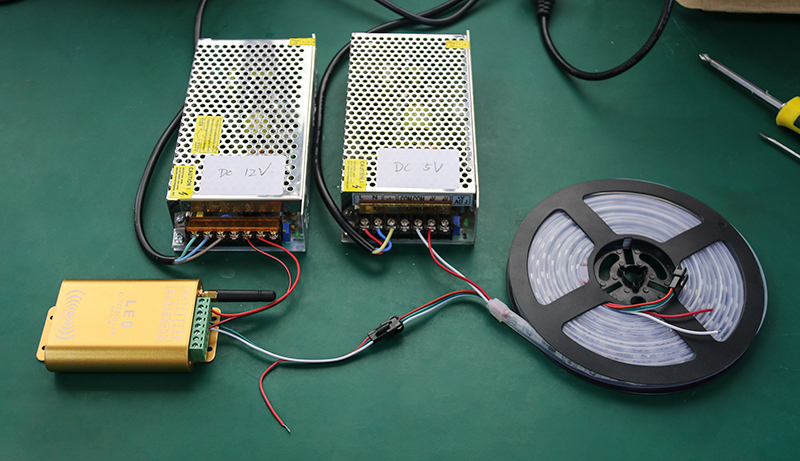

DC5V light connection:
