Special Price: $79.98 $74.986% off
Warm Tips
1. This link is 16.4Ft/5m Kit, but we can make a complete neon light reel of no more than 32ft/10m for you. If you order double the quantity, please note that you need a custom length, such as 26 feet or 32 feet, and we will follow you Customize the length you need；
2. This neon light every 16.4ft need to supply power separately, so please supply power at both ends if your project more than 16ft, (if you order two kits, you will receive two power supplies.)
Features
1. Our new addressable RGB/RGBW LED neon lights, adopts Breakpoint-continuous WS2815 individually addressable IC, or SM16704 IC combines with 4 in 1 RGBW LED chips, more choices for different LED lighting demands.

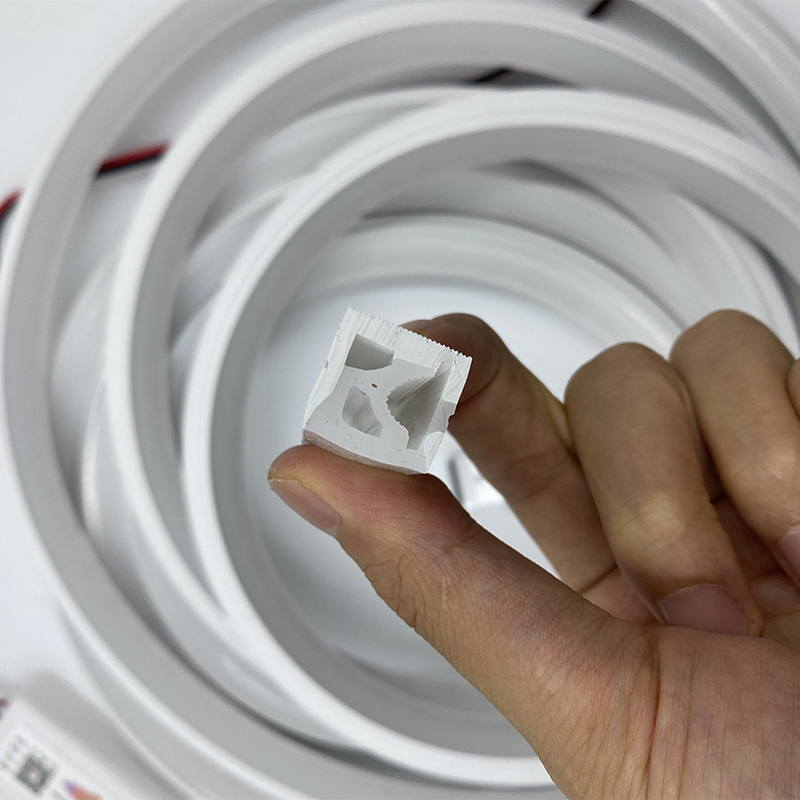

2. 16X16mm edge lighting, inner width is 10mm.
3. IP67 Waterproof rating, suitable for indoor and outdoor LED lighting projects.
4. Life is longer than ordinary PVC Rubber Tube. Weather Resistance, Anti-UV, perfect heat dissipation.
5. 5meters(16.4') Per Reel By Sale.
6. RGB + DW means RGB + Daylight white. RGB+ WW means RGB + Warm white. Only SM16704 RGBW LED lights have the DC24V version.
Please note: This item doesn't include any power supply, controller or the accessories. The size of the power supply according to the length of the LED neon light, you should order separately. There are various controllers, please purchase the one you need via choosing from the SPI Controller series. If you don't know how to choose the power supply and controller, please contact us online or send us the email.
For Controller Option Description

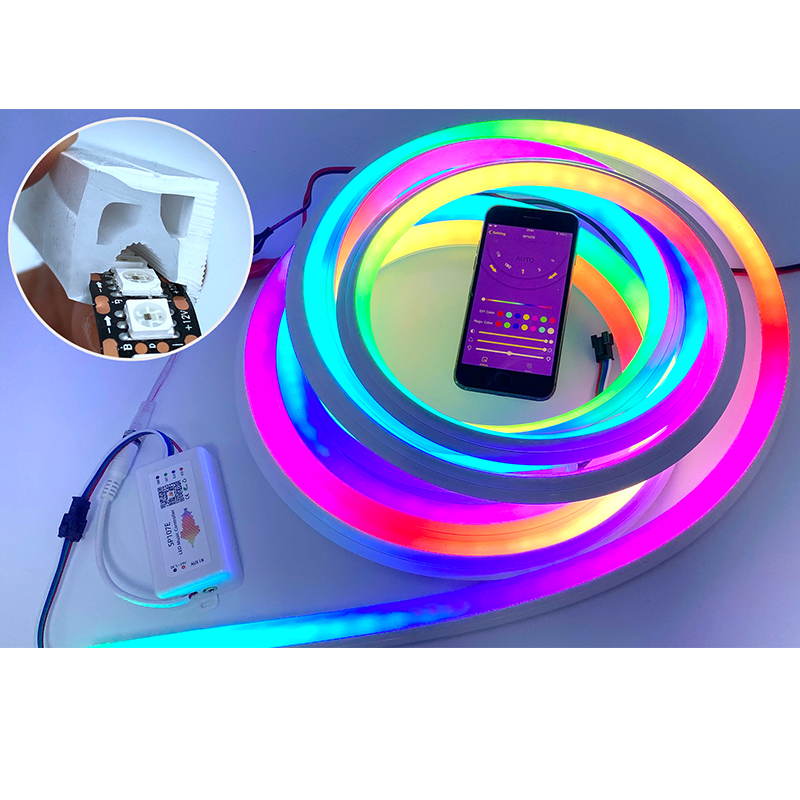

We talk about four options for the controller, all of which can be applied to the above light strips, with different functions.
click to SP107E Music Bluetooth Controller
click to SP108E DIY WIFI Controller
click to SP110E Mini Bluetooth controller
click to SP105E Bluetooth controller
For LED Strip Light Option Description
According to the cutting type of the light strip, we divide the addressable light strip into three types: individually addressable, 3LEDs cuttable, and 6LEDs cuttable.
Individually addressable(1 IC control 1 LEDs): DC12V WS2815 RGB
3LEDs cuttable cutable(1 IC control 3 LEDs): DC12V SK6812RGBW or DC12V TM1814 RGBW/DW
6LEDs cutable(1 IC control 6 LEDs): DC24V SK6812RGBW/DW or DC24V TM1814 RGBW/DW
In addition to the classification according to the cutting type, their difference is also reflected in the chip and color temperature(3000K or 6000K), etc. You can choose according to your needs.
For LED Neon Tube Option Description
In terms of neon tube size, we also provide different options:
|
Neon Picture |
Product Size |
Light direction | Product Link |
 |

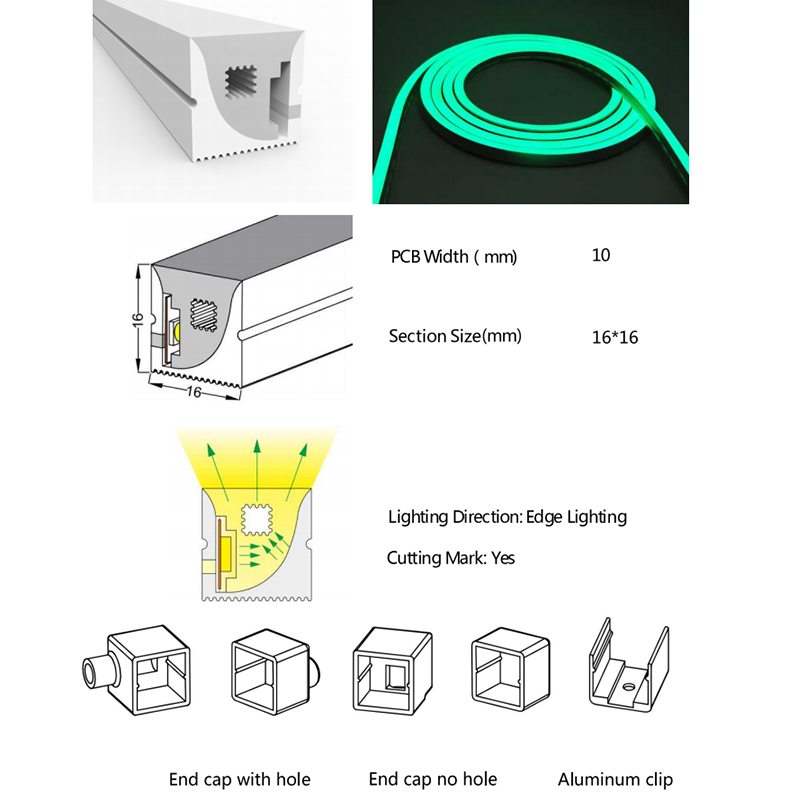

16*16MM Top | Top Emitting | Click Here |
 |
16*16MM Side | Side Emitting | Click Here |
 |
10*23MM | Side Emitting | Click Here |
 |
12*25MM | Side Emitting | Click Here |
 |
15*13MM | Top Emitting | Click Here |
Tips: These 8 LED neon tube options are the most suitable models that we can match for you and can replace the strip width appropriately. They have different shapes, but the internal width is 11mm, and the PCB width of all LED strips is 10mm; The yellow part of the thumbnail is the luminous body, and the plane hole is the fixed position of the PCB. You can judge the luminous direction by the fixed direction of the PCB. We hope these options can bring you more choices for different lighting schemes. If you have more ideas, such as other neon tube sizes, LED strip types, or customize lengths, please feel free to contact us and we will recommend the most suitable solution for you.
Standards and Certifications
Product Specification
LED Strip Type: SMD 5050
Color: WS2815 Individually Addressable RGB or SM16704 Addressable RGBW
IC Type: WS2815/SM16704
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: For 12V WS2815 version, every LED can be cut,/16.67mm cutting length. For SM16704 version, 12V - every 3LEDs can be cut/50mm. 24V - every 6LEDs can be cut/100mm.
LED Quantity: 60 LEDs per meter
Input Voltage(V): 12/24VDC
Working Power: 72W per 16.4ft
Material: Silicone, PVC
Water Proof: Waterproof IP67
Lifespan: 50,000+hours
Warantty: 3 years
For LED Power Supply Option Description
In terms of power supply, we divide the power supply into the following four types according to the power of the light strip.
96W Table Power Adapter:12V LED power supply and 24V LED power supply
100W MeanWell UL-Listed Power Supply: 5V LED power supply and 12V LED power supply and 24V LED power supply
100W Ultra Slim Power Supply: 12V LED power supply and 24V LED power supply
100W Waterproof Power Supply: 5V LED power supply and 12V LED power supply and 24V LED power supply
For Connector Option Description
If you need to use the light strip outdoors, we recommend that you choose a waterproof connector, if you choose not to be waterproof, we will send you a JST connector
Applications
1.Hotels decoration use
2. Backlighting decoration
3. Concealed lighting, Cove decoration
4. Theaters, clubs, shopping malls lighting
5. Architectural decorative lighting
6. Auditorium walk stairway lighting
7. Show exhibition decoration
8. luminous characters
9. Holiday lighting
10. Advertising lighting
