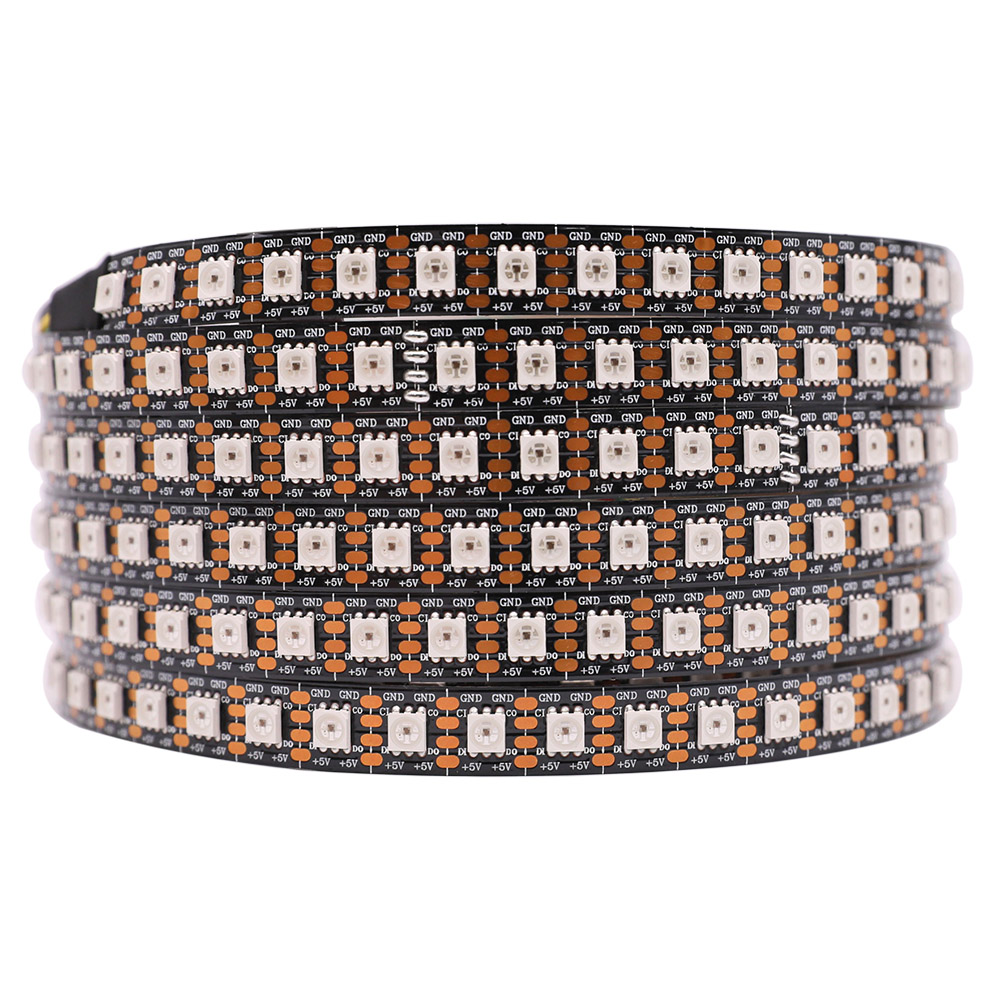

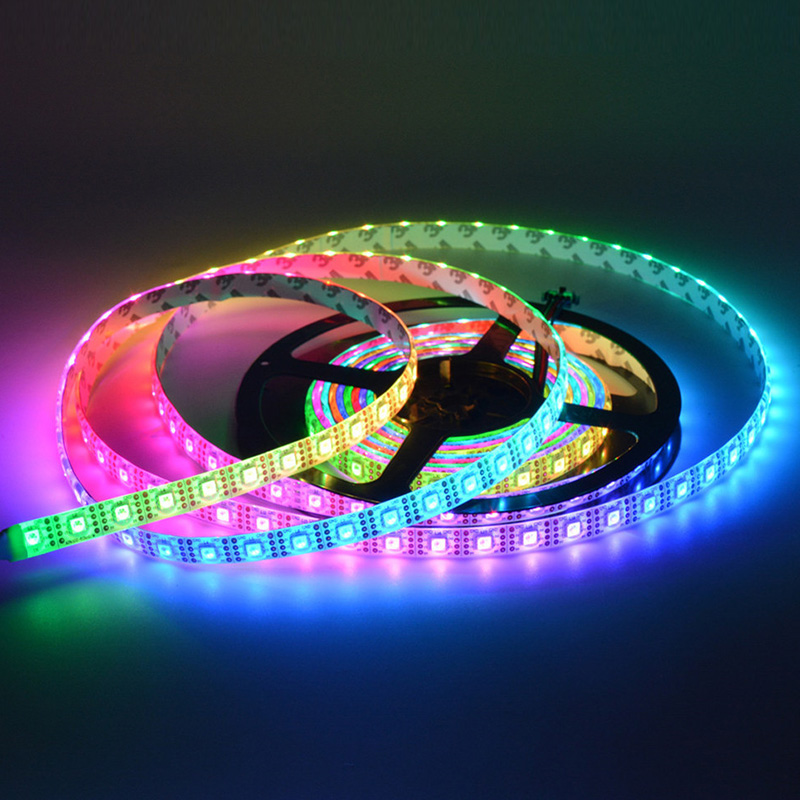

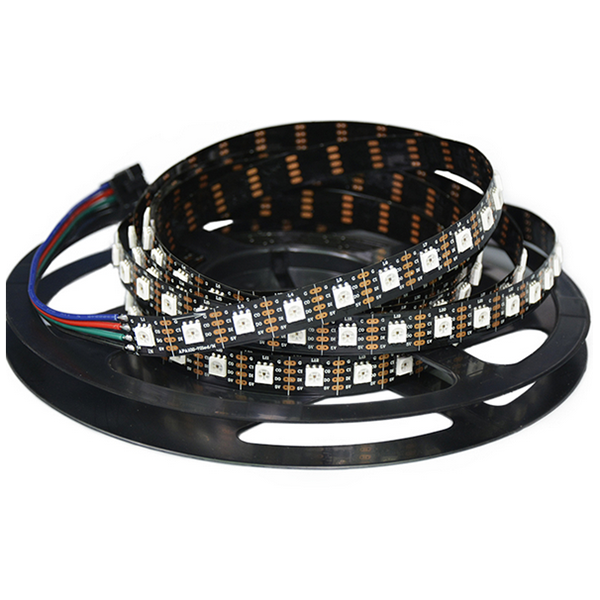

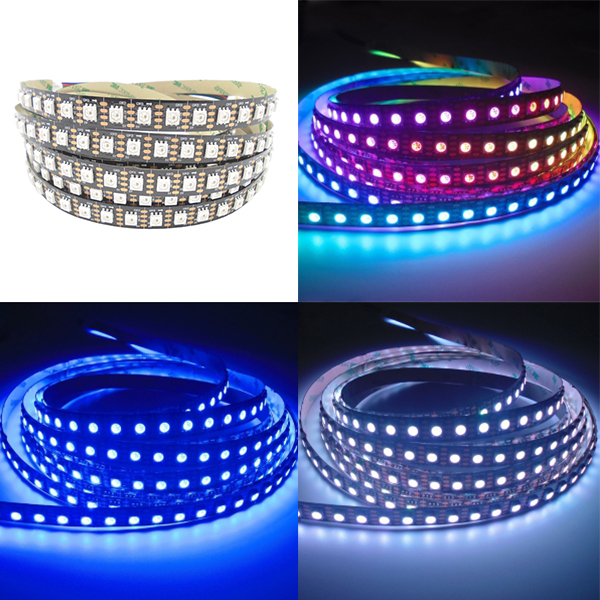

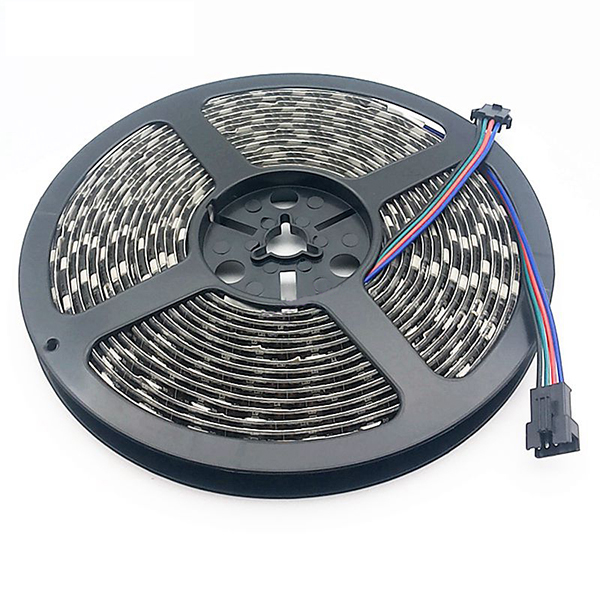

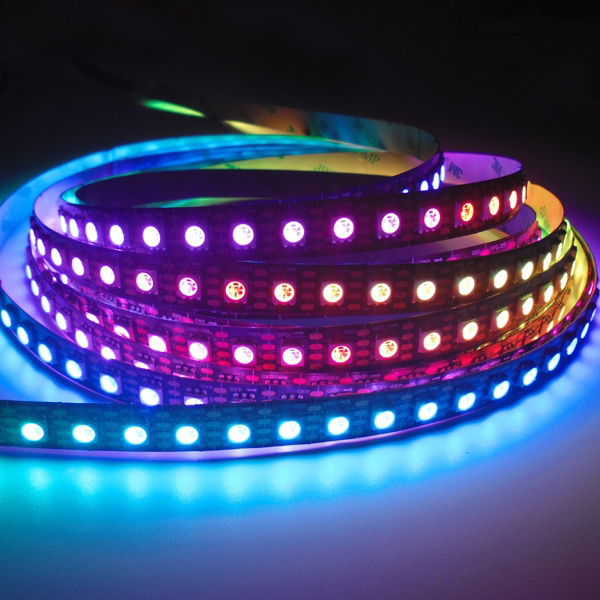

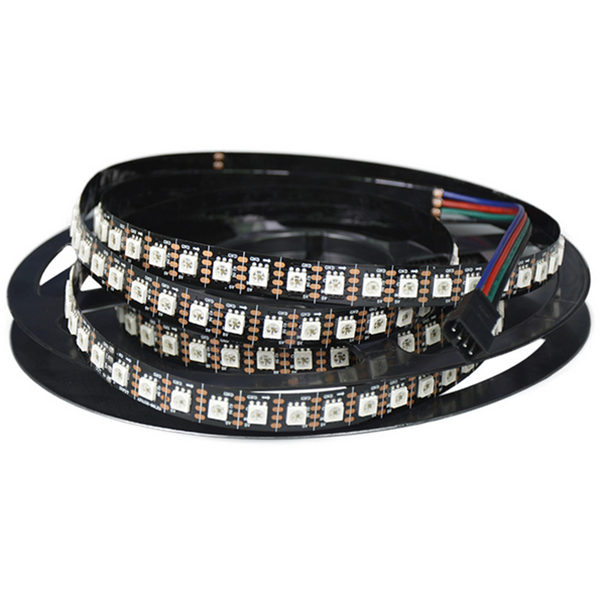

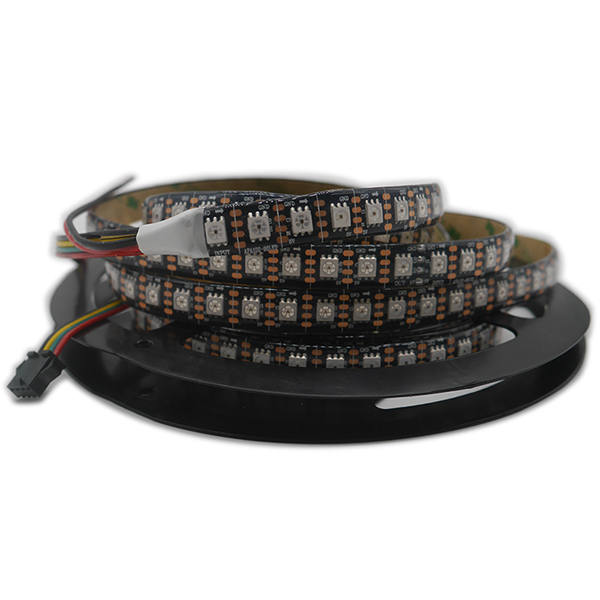

HD108 Individually Addressable RGB Pixel LED Flexible Strip Lights DC5V Full Color Changing
Related Products
HD108 Individually...
$109.98
DC5-24V Programmable SD...
$29.98
200W DC12/24V Rainproof...
$41.98
DC5-24V led wifi...
$49.98
Mean Well LRS-200-5 DC5V...
$49.00 $39.9818% off-
Special Price: $109.98
What is HD108 digital addressable LED strip light?
HD108 digital RGB LED strip is the upgraded version of HD107s LED light strip, which integrates R/G/B IC, output 8 bit(256 level) lighting color set, 5bit(32 levels) brightness adjustment, 256 greyscale adjustments.
HD108 LED adopts CMOS process, positive or negative output 16 million color chasing lighting effect, DC5V low voltage input, low consumption, built-in constant current circuit, and RC oscillator; internal integrated current gain control module can also be REXT external resistor to adjust the required current, each output channel can output 16 (65536 level) gray adjustable linear current; using two-wire output, DATA data and synchronous CLK signal, suitable for LED bar lighting, KTV lighting.
Compared with APA102/SK9822 LED strip lights, with bigger beam angle, lower voltage drop, and higher bright output. The protocol of the HD108 LED strip is the same as the APA102 LED strip light.
Output two types of signals, data signal and clock signal; PWM refresh rate up to 27kH; max transmission speed up to 40M bps, HD108 digital LED strip lights have the fastest transmission speed and refresh speed in all of the addressable LED strip lights
Note: All HD108 led strips must be used with 65536 high grayscale controller like H801SB (controller in the kit if you choose) or H806SB.
HD108 LED Datasheet Download
The difference between APA102, APA107, HD107s, HD108, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
HD108: 27+ kHz PWM, transmission rate 40MHZ (fastest IC)
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
Product Feature:
|
Standards and Certifications
Product Specification
| LED Chip | HD108 IC |
| Input Voltage | DC5V |
| Power | 28.8W/m; 8.78W/Ft |
| LED Color | Addressable Full Color RGB |

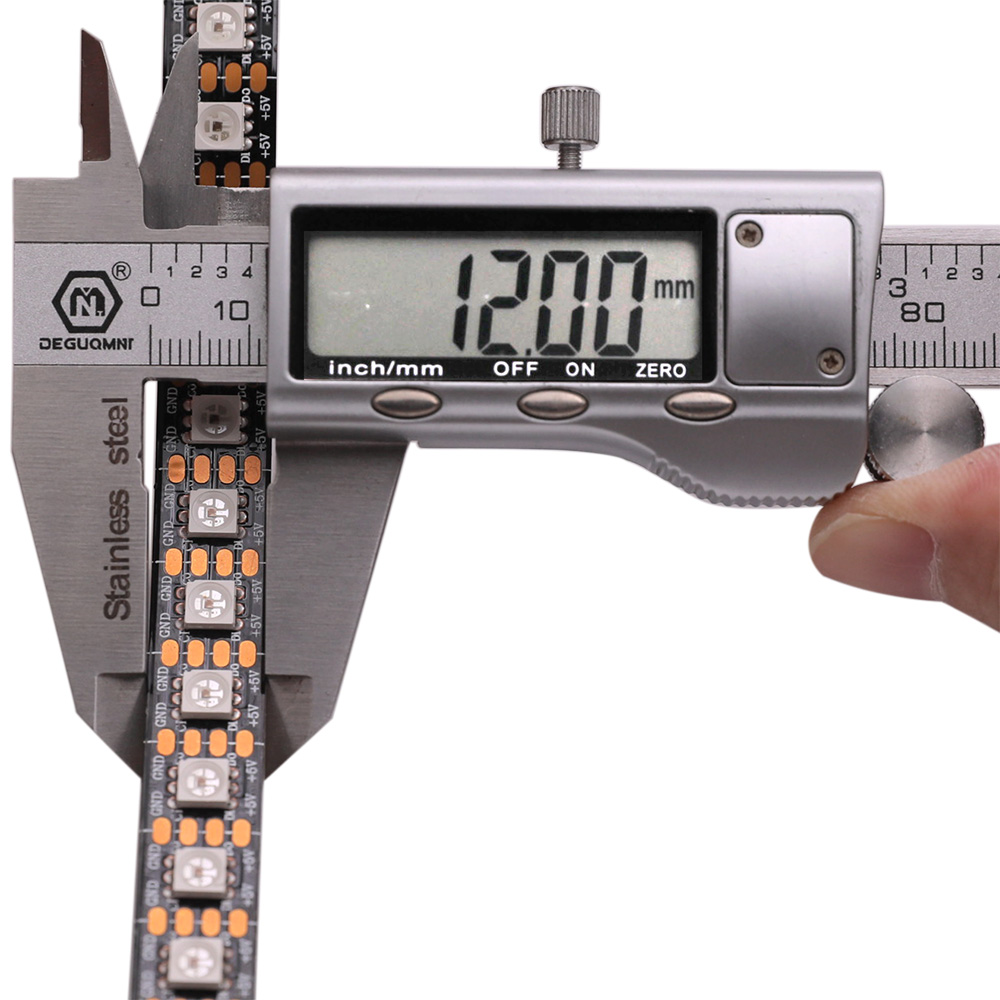

| PCB Width | 12mm/0.47in |
| LED Quantity | 96 LEDs/m |
| Waterproof Rating | IP20 non-waterproof; IP65/IP67/IP68 waterproof |

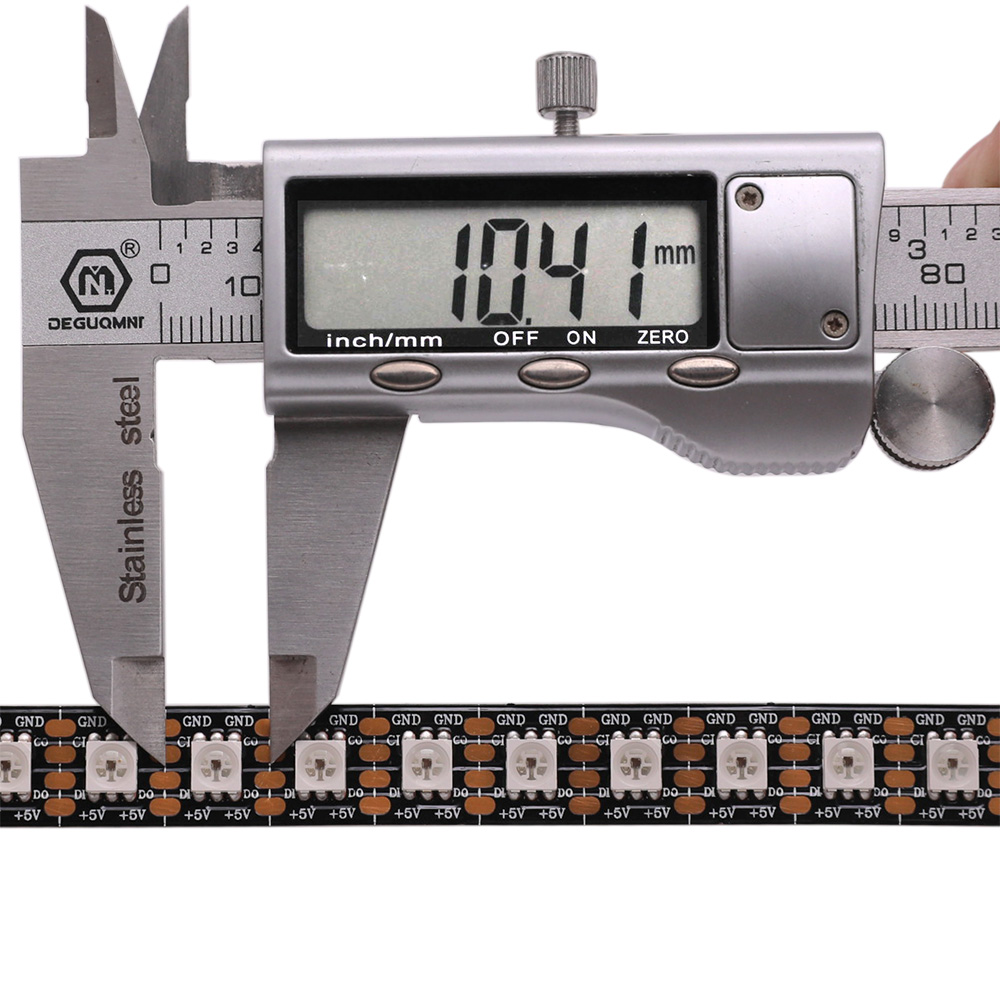

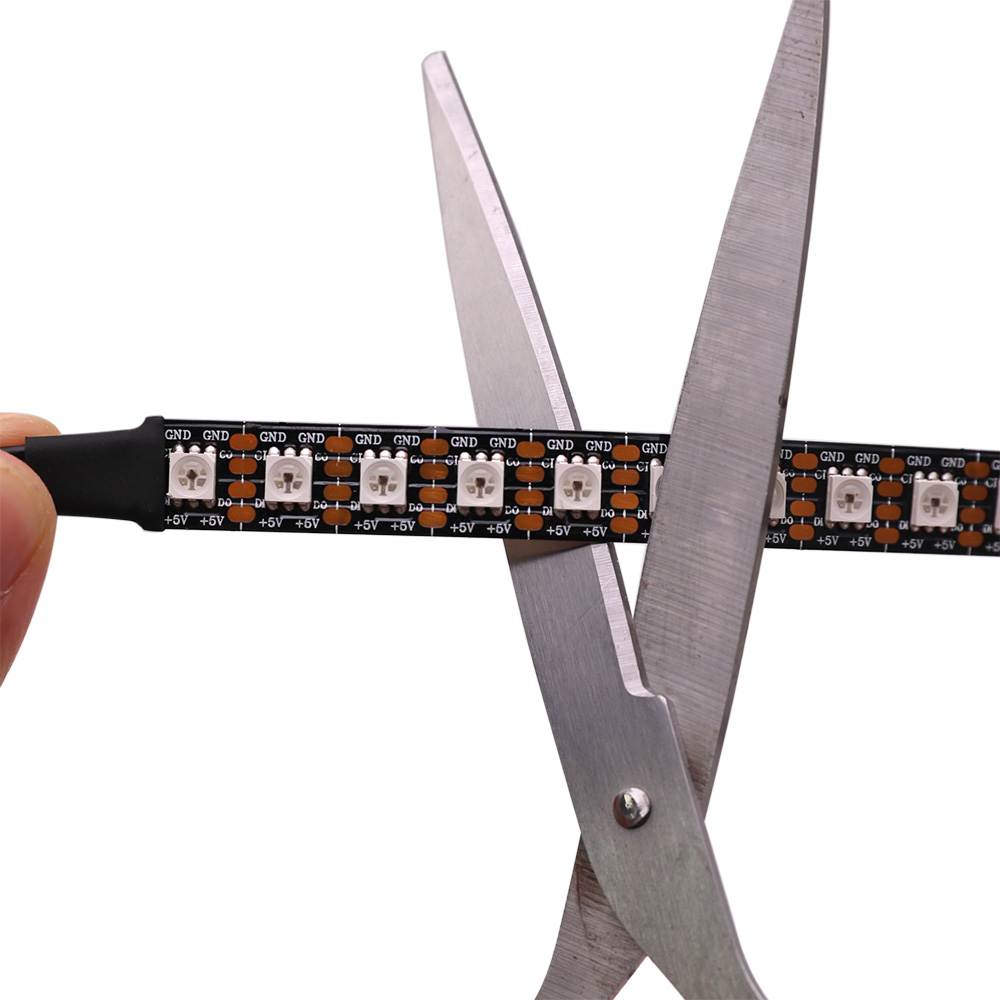

| Cut Length | 10.42mm (Individually addressable pixel LED) |
| PCB color | White / Black |
| Length | 5m/16.4Ft |
| PWM Refresh Rate | 27KHz |
| Transmission Speed | 40M bps |
| Lifespan | 50,000H |
| Product Size | 5000mm*12mm*2.5mm |
Addressable LED Strip Lights Wiring Diagram
| ►Connection method one: |
*SPI LED Strip lights wiring diagram with 5m*
| ►Connection method two: |
*SPI LED Strip lights wiring diagram with 10m*
| ►How to power addressable LED strip and SPI controller using different voltage power supply? |
| ►How to wire a ultra long addressable led strip lighting? |
*SPI LED Strip lights wiring diagram with 20m+*
For more technical support, please contact us, or visit the LED Strip Guide
